RC-2210 CNC Insert Double Rounding and Chamfering 10mm Radius x 90mm Dia x 22-62mm x 3/4 Shank
$870.86

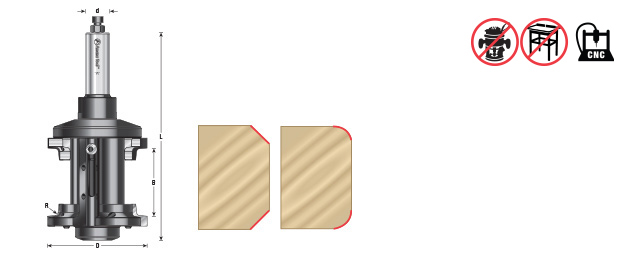

| Diameter (D) | 90mm |
|---|---|
| (B) Cutting Height | 22-62mm |
| Shank (d) | 3/4 |
| Overall Length (L) | 186mm |
| R/a° | 10mm |
| Repl. Knife Lower | RCK-289L |
| Repl. Knife Upper | RCK-289 |
| Flutes | 2 |
Description
Insert profile router bit with two cutting flutes. Suitable for profiling in softwood hardwoods and man-made boards (with or without coating). Tool will be supplied with special inserts and backing plates ground to customer’s own specification. For use on routers and machining centers with CNC control.
Specifications
| (D) Diameter | 90mm |
| (B) Cutting Height | 22-62mm |
| (d) Shank | 3/4 |
| Overall Length (L) | 186mm |
| R/a° | 10mm |
| Repl. Knife Lower | RCK-289L |
| Repl. Knife Upper | RCK-289 |
| Flutes | 2 |
