RC-2242 Insert Carbide Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1/8 Radius x 1-3/4 Dia x 15/32 x 1/2 Inch Shank Router Bit

$250.81

Usually ships on the 2nd business day from order date.
Diameter (D) 1-3/4
Radius (R) 1/8
Angle (a°) 5°
(B) Cutting Height 12mm (15/32)
Shank (d) 1/2
Overall Length (L) 1-49/64
Max Rpm 28,000
Repl. Knives RCK-344
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685224243 SKU: RC-2242 Categories: , ,

Description

Amana’s new radius edge cutter RC-2242 is best recommended to be used for surface planing/flattening in surfaces of large solid wood slabs with a handheld router in router sleds.

Features a 1/8″ radius bevel making this tool unique compared to other spoilboard bits. A great tool for fast removal of materials over a large surface area.

Also suitable for router sled machines, Make sure that your router sled is fully stable and squared.

Perfect for:

  • Resurfacing spoilboards using CNC
  • Planing large glued up panels using CNC
  • Surfacing and finishing wood using timber slab machines
  • Rabbeting

Designed for planing & rabbeting the following materials:

  • Fiberboard
  • HDF/LDF
  • MDF

Features

  • 4-sided solid carbide insert knives
  • Exclusive carbide grade for highest quality of cut
  • Maximum cutting efficiency
  • Faster material removal process
These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools.

Proper torques rating to tighten down screws is 2-3Nm Torques.

Note: Not to be used for slot cutting.

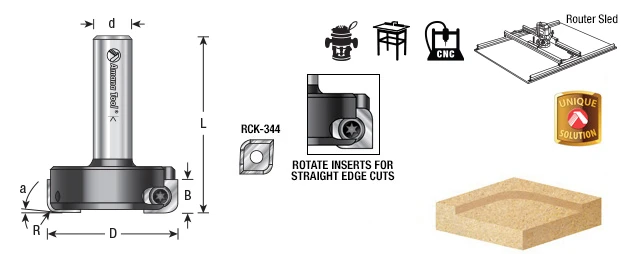

Specifications

(D) Diameter 1-3/4
(R) Radius 1/8
(a°) Angle 5°
(B) Cutting Height 12mm (15/32)
(d) Shank 1/2
Overall Length (L) 1-49/64
Max RPM 28,000
Replacement Knives RCK-344
