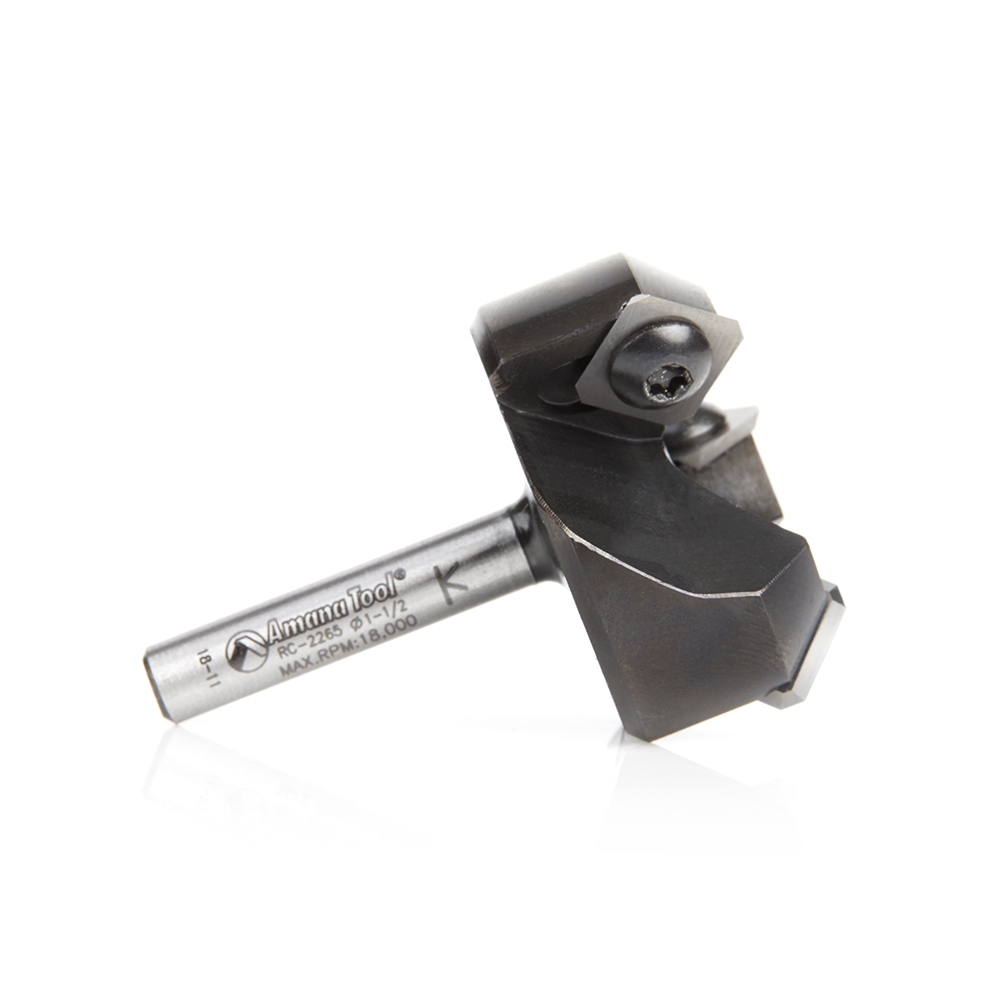

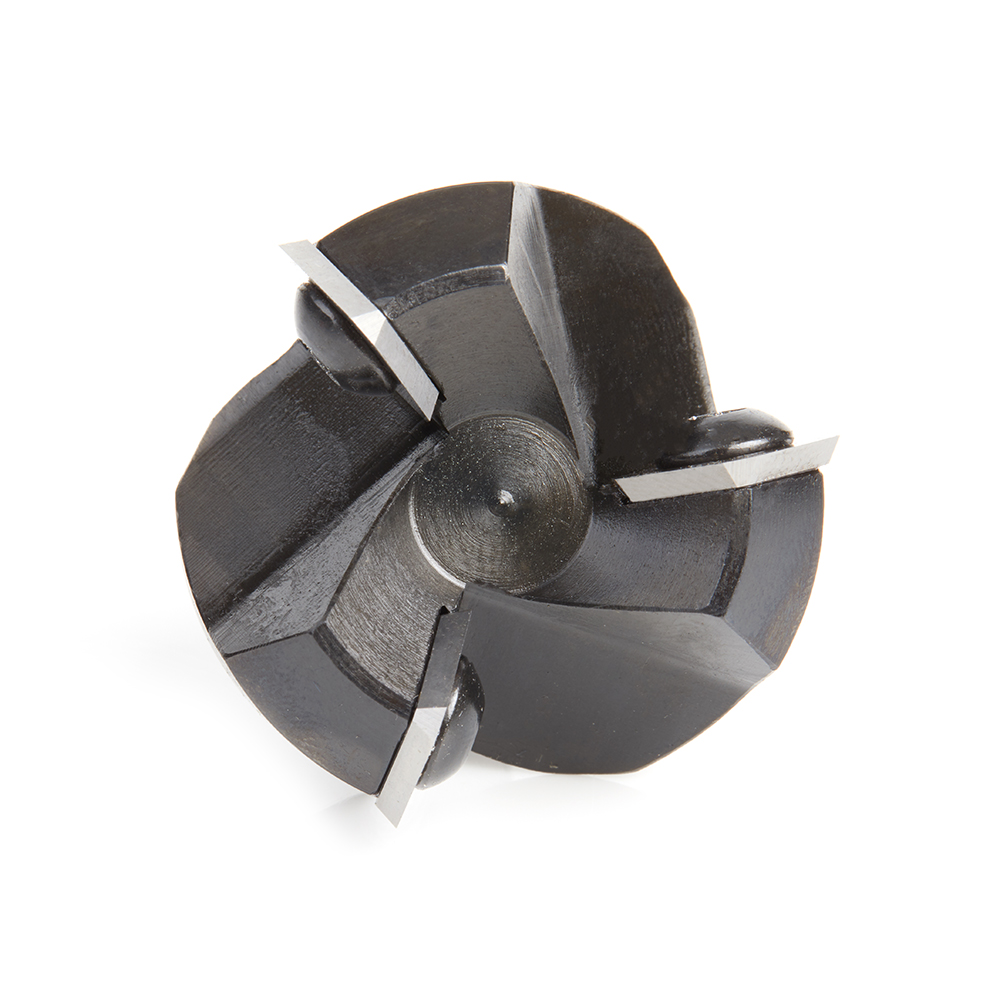

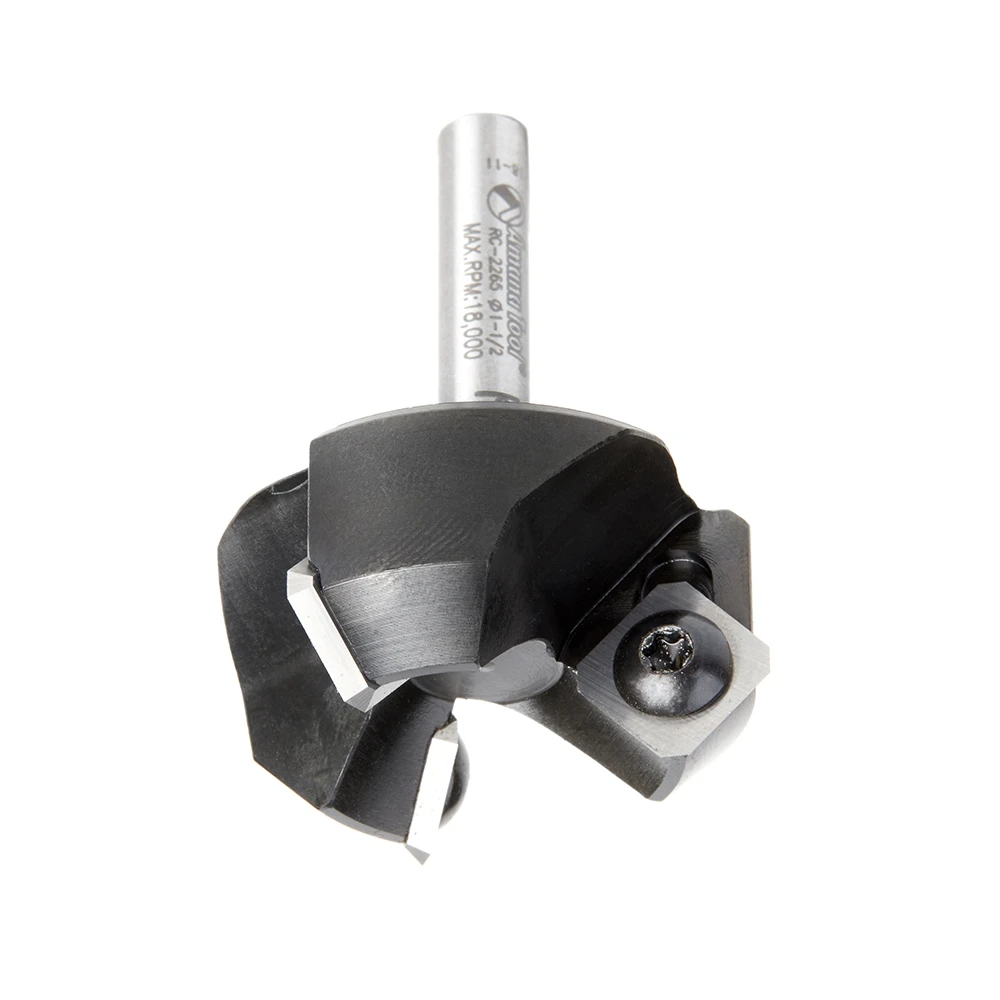

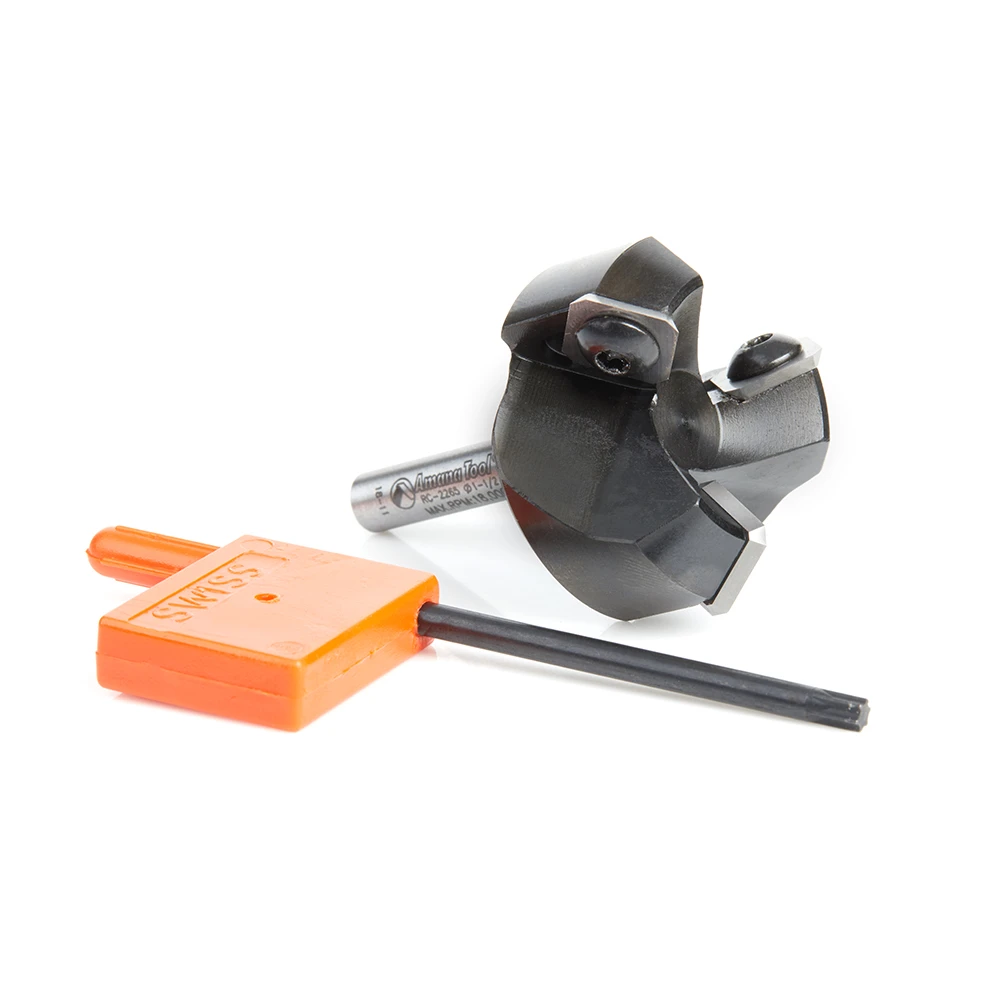

RC-2265 CNC Insert Carbide 3 Wing/Flute Heavy Duty Spoilboard Plunging, Surfacing, Planing, Flycutter & Slab Leveler 1-1/2 Dia x 3/4 x 1/4 Shank Router Bit
$228.89
Usually ships on the 2nd business day from order date.

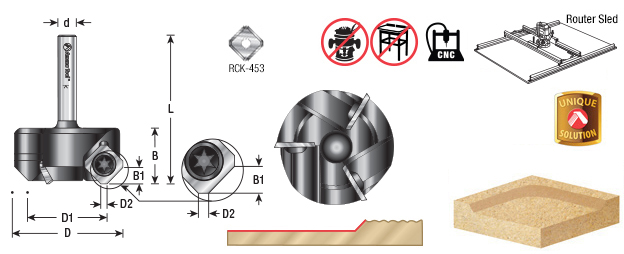

Diameter (D) | 1-1/2 |
---|---|
(B) Cutting Height | 3/4 |
Shank (d) | 1/4 |
Overall Length (L) | 2 |
B1 | 3/16 |
Max Rpm | 18,000 |
Flutes | 3 |
D1 | 1-5/64 |
D2 | 5/64 |
Description
Insert carbide spoilboard surfacing & chamfering router bit, great for planing large surface areas. Higher number of teeth allows for higher feed rate.
Also suitable for router sled machines.
Warning: Make sure that your router sled rails are fully stable and squared.
Perfect for:
- Resurfacing spoilboards using CNC
- Planing large glued up panels using CNC
- Surfacing and finishing wood using timber slab machines
- Rabbeting or slotting
Designed for planing & chamfering the following materials:
- MDF
- Fiberboard
- HDF/LDF
- Balsa Core
- Epoxy (Epoxy Resins)
- High Density Urethane (HDU Board)
- Plastic/Acrylic**
- Plywood/Chipboard
- Hardwood/Softwood
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
** Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.
Features
Specifications
(D) Diameter | 1-1/2 |
(B) Cutting Height | 3/4 |
(d) Shank | 1/4 |
Overall Length (L) | 2 |
B1 | 3/16 |
Max RPM | 18,000 |
Flutes | 3 |
D1 | 1-5/64 |
D2 | 5/64 |
