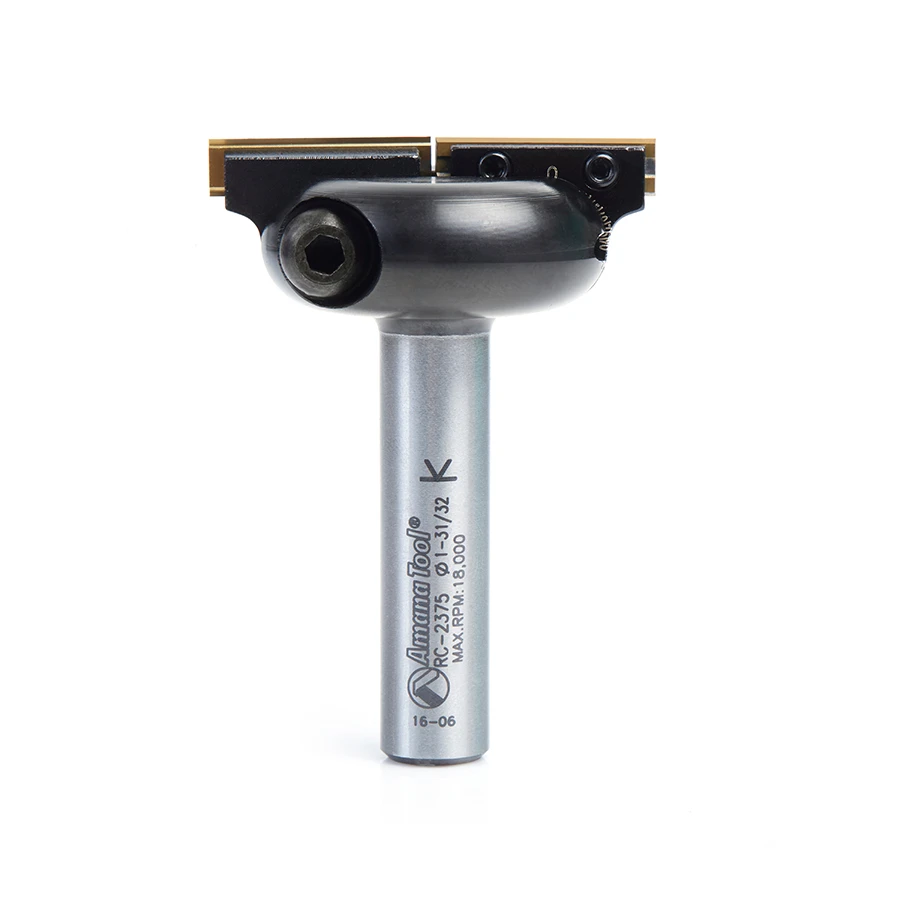

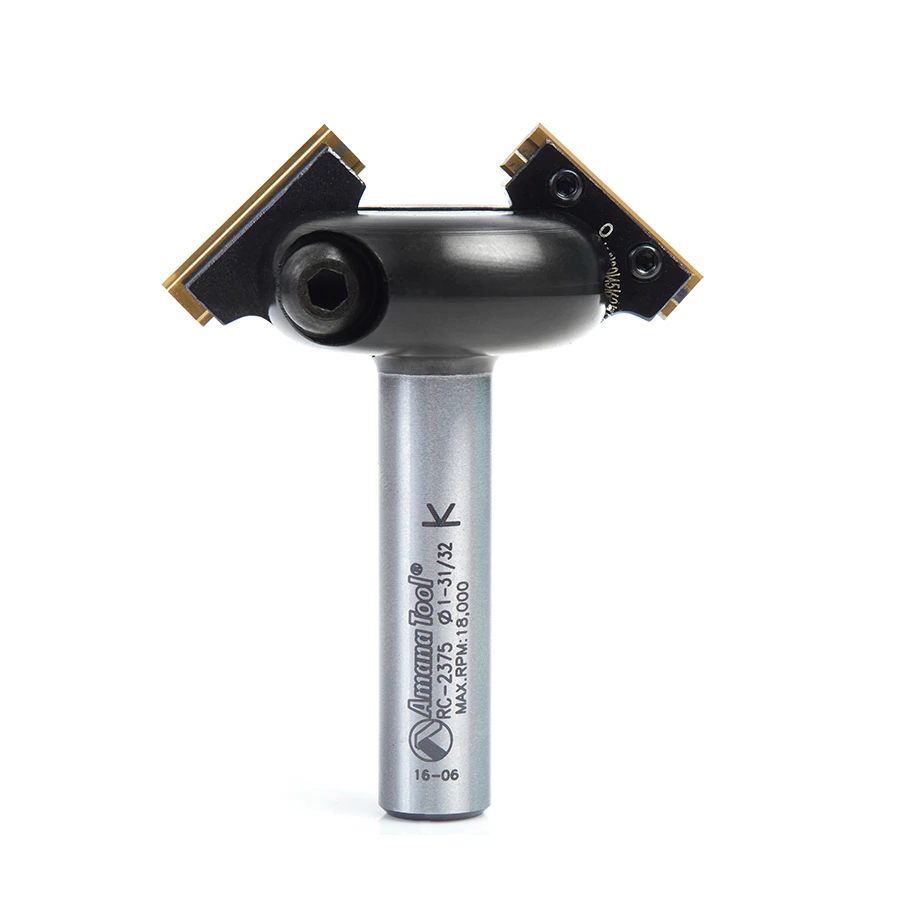

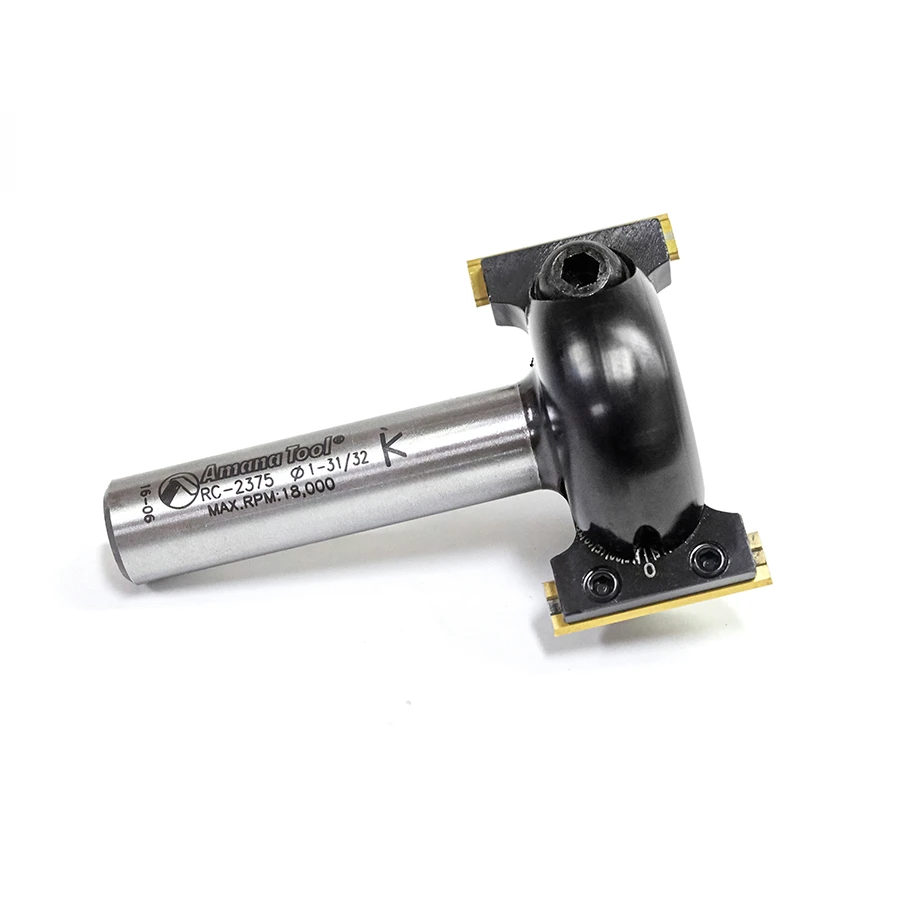

RC-2375 In-Bevel™ Insert Adjustable Chamfer 1-7/8 Dia x 31/32 x 1/2 Shank Router Bit for CNC Handheld and Router Tables
$423.23
Usually ships on the 2nd business day from order date.
| (a°) Angle | -45° to +90° |
|---|---|
| Diameter (D) | 1-7/8 |
| D1 | 25mm (63/64") |
| (B) Cutting Height | 31/32 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-13/16 |
| Max Rpm | 16,000 |
| Screw # | 67713 |
| Mdf-knives | Optional RCK-462 (2) |
| General-purpose-knives | RCK-460 (2) |
| D2 | 11.5mm (29/64") |
Description

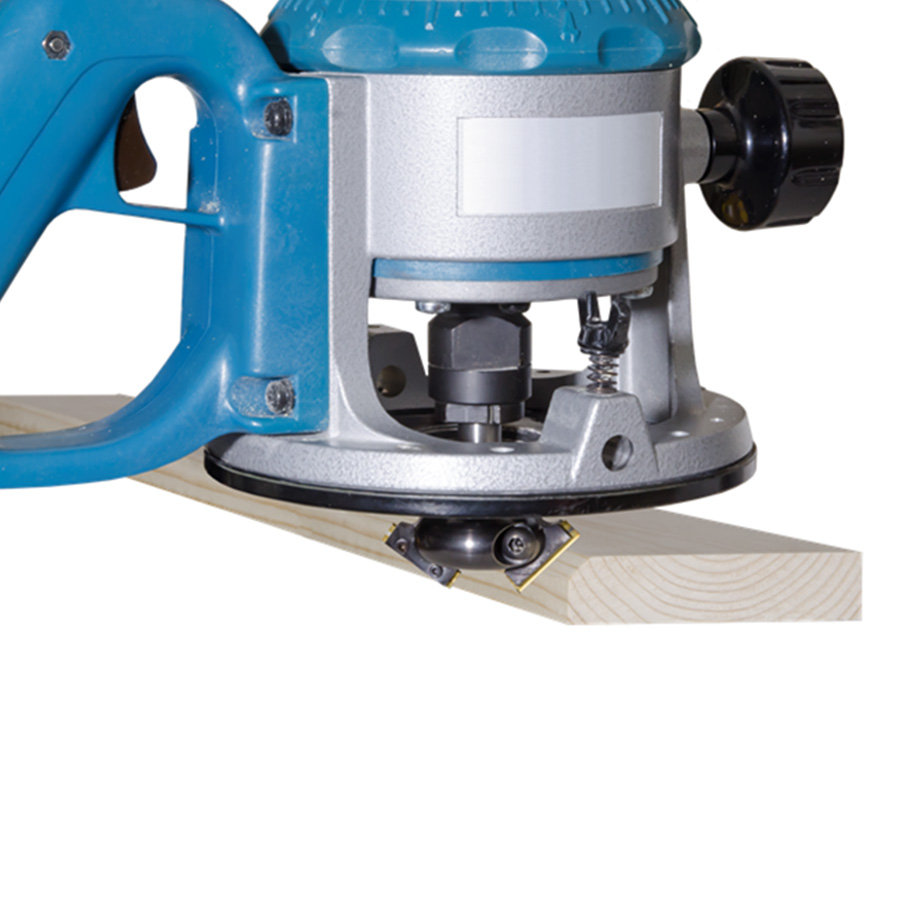

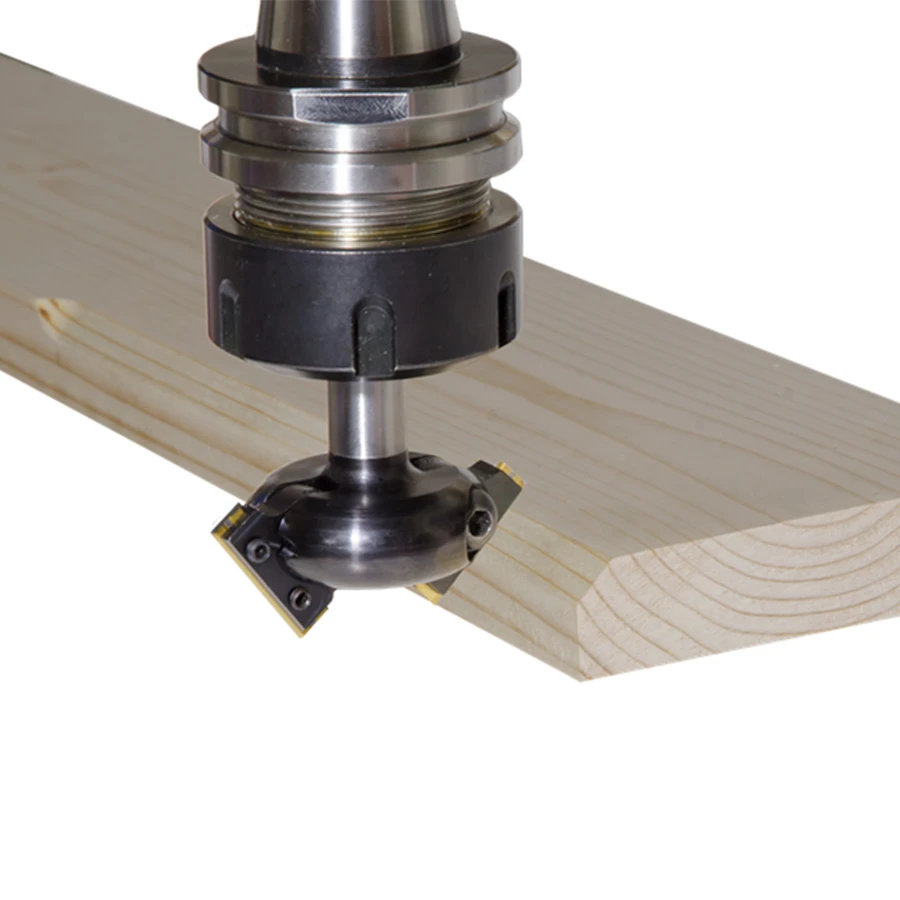

In-Bevel™ insert router bit complete with two cutting flutes. Suitable for producing chamfer, rabbet, bevel and spoilboard cuts at various angles in softwood, hardwood and man-made boards. The dial clicks/stops every 15° by using a notched scale. Good for use in CNC machine, handheld router and router table machines.
Insert knives are coated for longer cutting life with two cutting edges that allow users to rotate the knife when one side becomes dull.

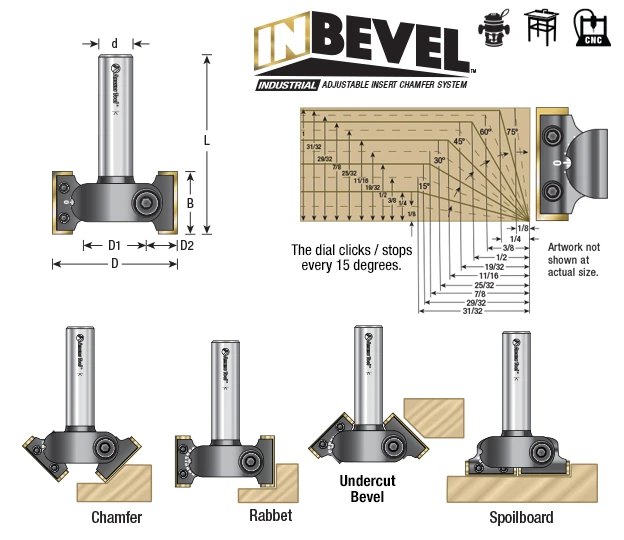

The dial clicks/stops every 15 degrees.
General purpose knife: #RCK-460
Optional Special carbide grade for long lasting MDF work: #RCK-462
Bit tolerance is (+) (-) 0.5°.
Excellent for cutting:
- Man-Made Boards
- Plastic/Acrylic
- Hardwood/Softwood
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
Specifications
| Angle (a°) | -45° to +90° |
| Diameter (D) | 1-7/8 |
| D1 | 25mm (63/64") |
| Cutting Height (B) | 31/32 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-13/16 |
| Max RPM | 16,000 |
| Screw # | 67713 |
| MDF Knives | Optional RCK-462 (2) |
| General Purpose Knives | RCK-460 (2) |
| D2 | 11.5mm (29/64") |
