Description
This series of profiles utilizing our Nova™ Tool body system of interchangeable carbide insert knives are designed to give the appearance of a Raised Panel door in MDF or solid panels.

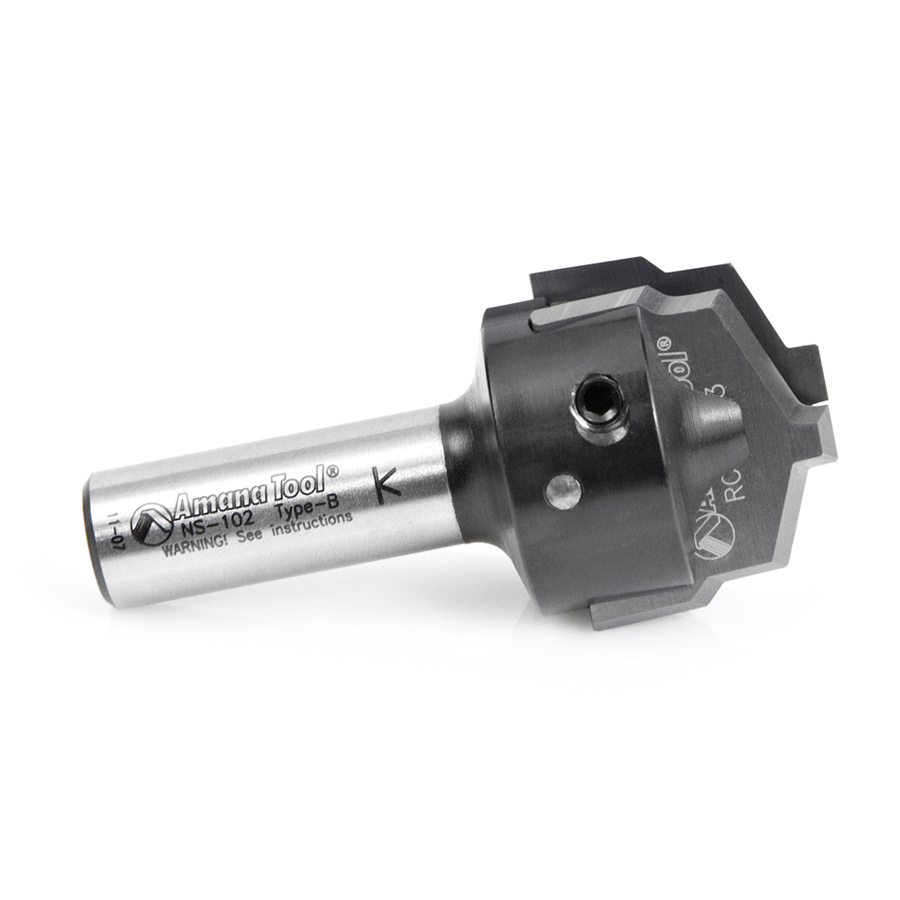

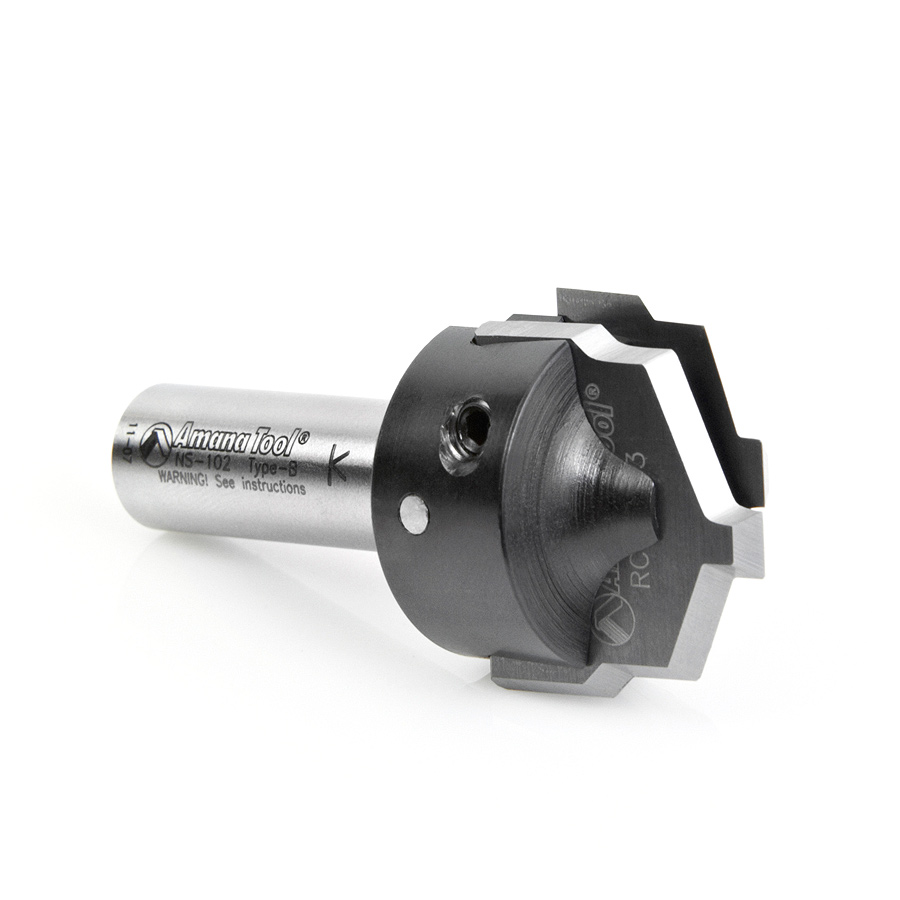

RC-2483 CNC Insert Nova System Traditional Plunge Form for MDF & Wood Cabinet Doors 1-3/8 Dia x 25/64 x 1/2 Inch Shank
$300.48
Usually ships on the 2nd business day from order date.

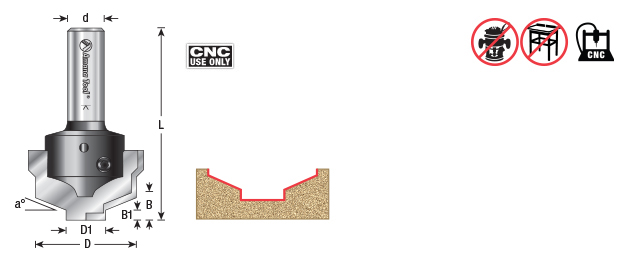

| Diameter (D) | 1-3/8 |
|---|---|
| (a°) Angle | 22° |
| (B) Cutting Height | 25/64 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-5/8 |
| B1 | 7/64 |
| Style | Traditional |
| Repl. Knives | RCK-483 |
| Type | Plunge Form |
| D1 | 15/32 |
Specifications
| Diameter (D) | 1-3/8 |
| (a°) Angle | 22 |
| Cutting Height (B) | 25/64 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-5/8 |
| B1 | 7/64 |
| Style | Traditional |
| Replacement Knives | RCK-483 |
| Type | Plunge Form |
| D1 | 15/32 |
