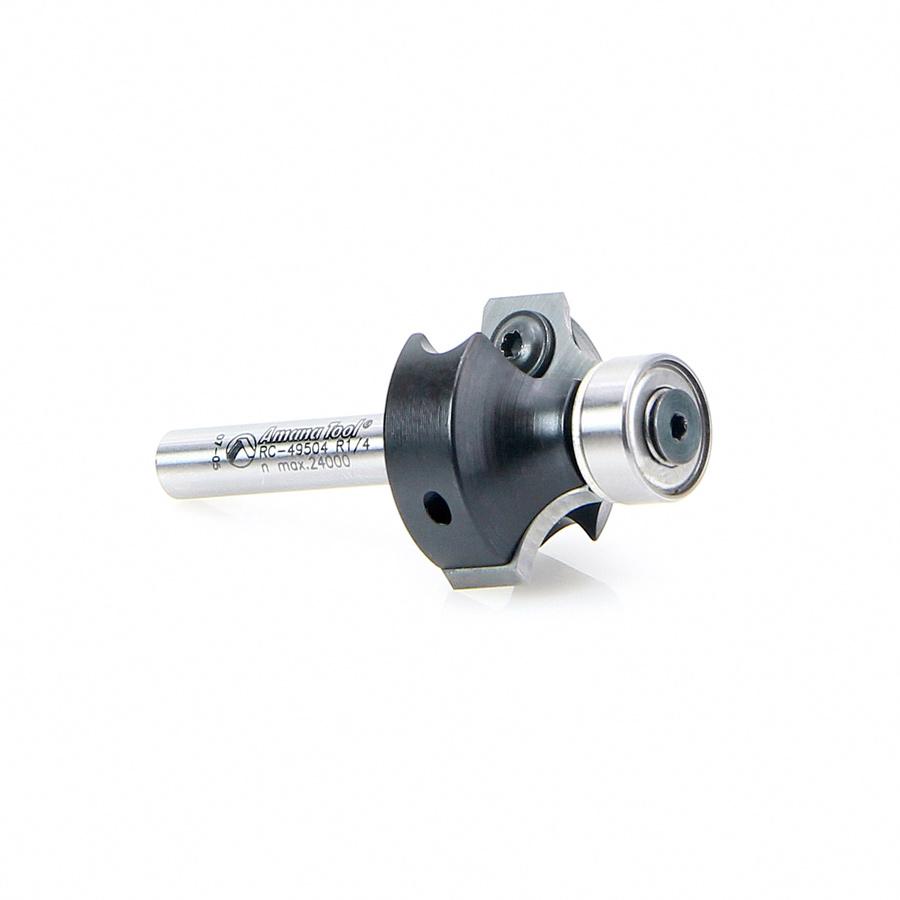

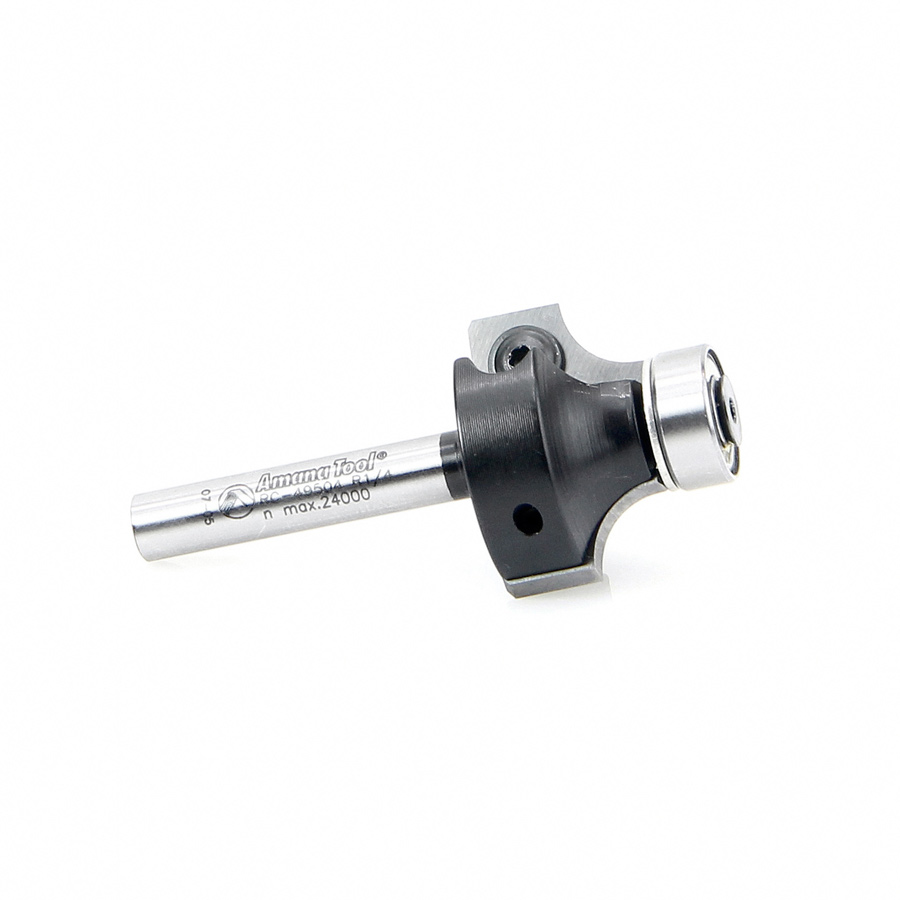

RC-49504 In-Tech Insert Corner Round 1/4 Radius x 1 Inch Dia x 1/2 x 1/4 Shank

$59.85

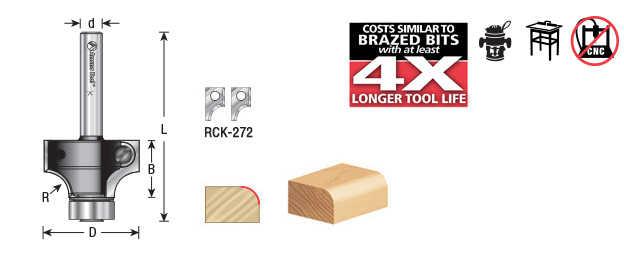

Diameter (D) 1
D1 1/2
Radius (R) 1/4
Cutting Height (B) 1/2
Shank (d) 1/4
Overall Length (L) 2-1/16
Type Corner Round
Replacement Insert Knives RCK-272 (15.7x9x1.5mm)
Replacement Bearing 47706
Flutes 2
# Of Knives 2
SKU: #RC-49504 Categories: ,

Description

These popular insert router bit profiles provide all woodworkers access to the industrial-grade technology, at an affordable price. By replacing worn knives instead of sharpening standard carbide tipped bits, router bit dimensions, cutting quality and accuracy remain constant during the life of the tool.

Ideal for routing:
  • MDF
  • Chipboard
  • Softwood
  • Hardwood
The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.

Benefits of the in-Tech™ Series include:
  • Cutting accuracy remains constant during the life of the knife
  • Priced comparably to brazed router bits with at least 4 times longer tool life
  • Superior cutting quality
  • No resharpening costs
  • Harder grade tungsten carbide

Replacement insert knives sold as a pair.

Specifications

Diameter (D) 1
D1 1/2
Radius (R) 1/4
Cutting Height (B) 1/2
Shank (d) 1/4
Overall Length (L) 2-1/16
Type Corner Round
Replacement Insert Knives RCK-272 (15.7x9x1.5mm)
Replacement Bearing 47706
Flutes 2
# of Knives 2
