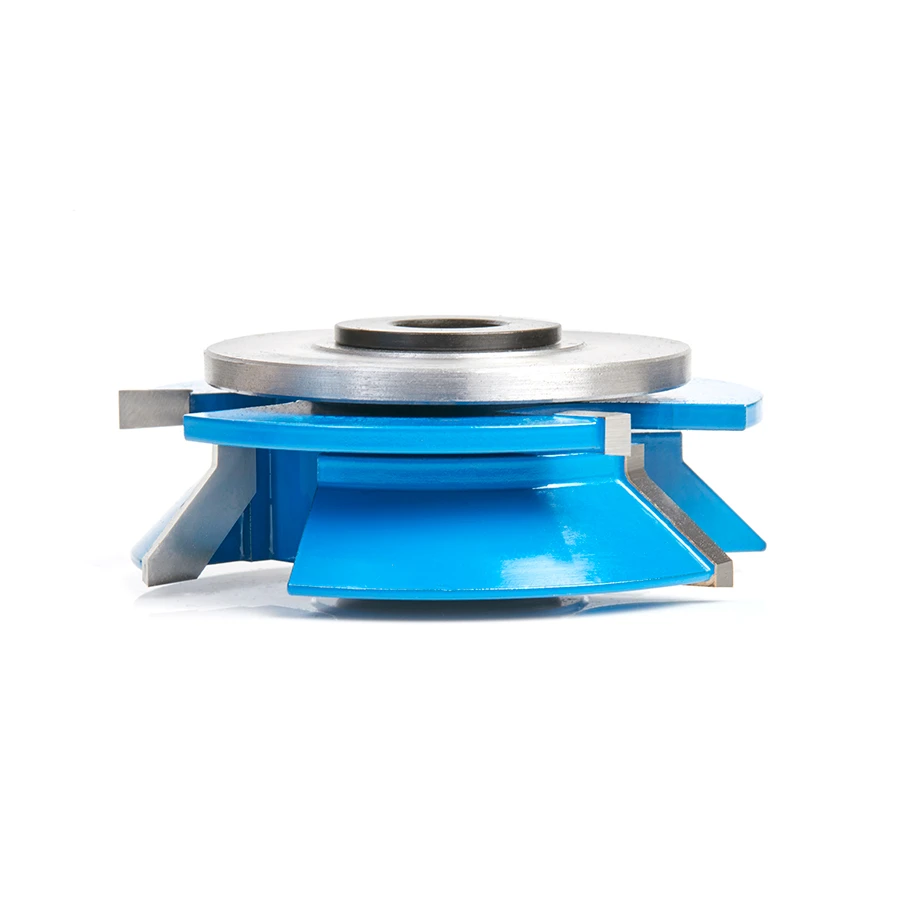

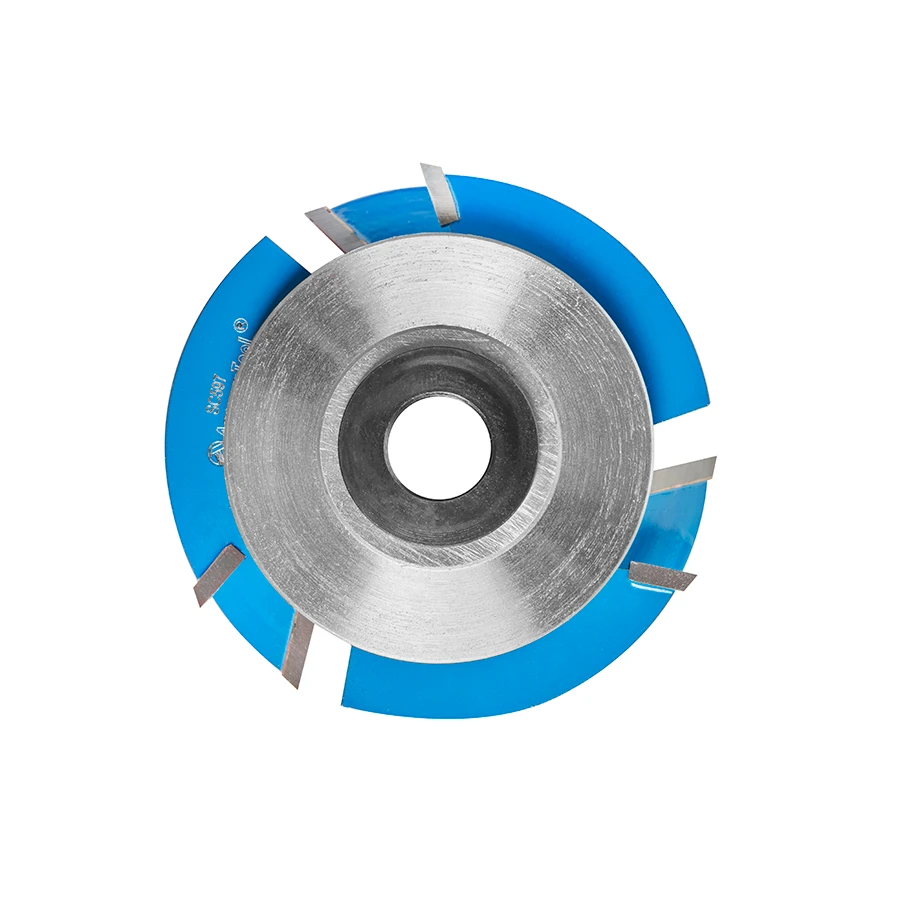

SC597 Carbide Tipped 3-Wing Beveled Reversible Stile & Rail 2-7/8 Dia x 1 x 1/2 & 3/4 Bore for 1-1/4-Inch Material
$99.72
Usually ships on the 2nd business day from order date.
| Diameter (D) | 2-1/2 |
|---|---|
| (d) Bore | 1/2 & 3/4 |
| (a°) Angle | 45º |
| (B) Cutting Height | 1-1/4 |
| C | 3/8 |
| L | 3/8 |
| T | 1/4 |
| Replacement Bearing | 47757 (42mm x 3/4 x 9mm) |
Description
Beveled Reversible Stile & Rail Shaper Cutter designed for template shaping such as arched or cathedral doors, etc. Features a ball bearing center with a steel sleeve and is available with either 1/2″ and 3/4″ inside diameter.
Specifications
| (D) Diameter | 2-1/2 |
| (d) Bore | 1/2 & 3/4 |
| (a°) Angle | 45º |
| (B) Cutting Height | 1-1/4 |
| C | 3/8 |
| L | 3/8 |
| T | 1/4 |
| Replacement Ball Bearing | 47757 (42mm x 3/4 x 9mm) |
