Supercell Turbo High-Pressure 30 Gal. Wall-Mounted HEPA-GFM Cyclone Dust Collector

$5,279.00

  • Universal design collects through up to 100′ of hose and ductwork.
  • 10x higher suction pressure than standard dust collectors and 20% more airflow than the classic Supercell!
  • Serves 1-4″ dia. dust ports and incidental use of some 5″ ports.
  • 30-gallon steel dust bin with automatic bag holder and fill level indicator.
  • HEPA-grade media filter with internal pulse filter cleaner.
  • Compact, wall-mounted design ideal for smaller shops with limited space.
  • Includes 4″ x 25′ vacuum-rated SD urethane flex-hose.
Usually ships in 2-4 weeks
Inquire Now
Categories: ,

Description

New from Oneida Air Systems, the Supercell® Turbo features everything you know and love about the original universal dust collector, but with 20% more airflow through 4″ ports!

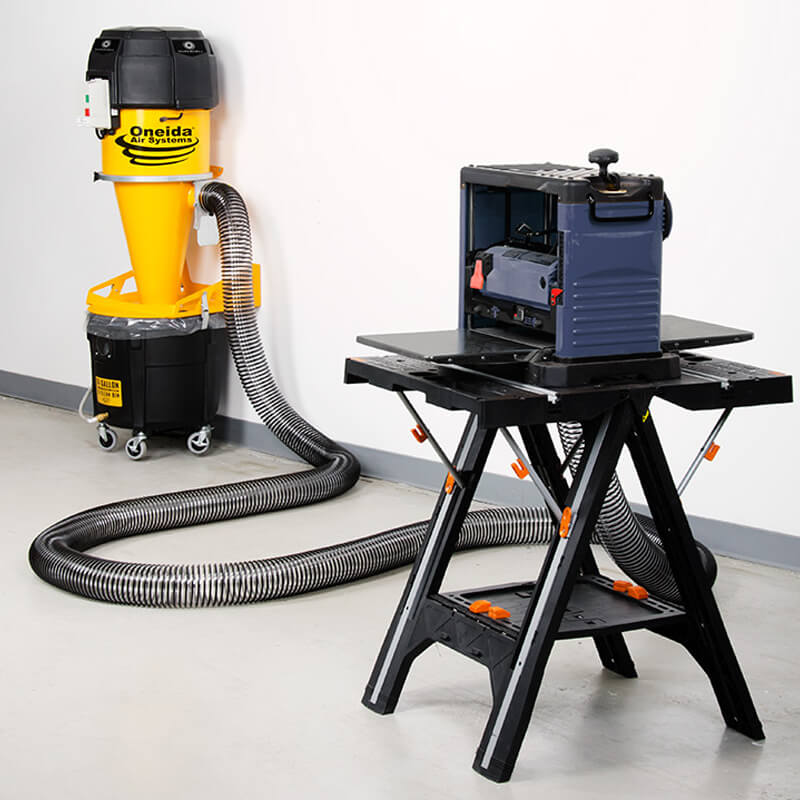

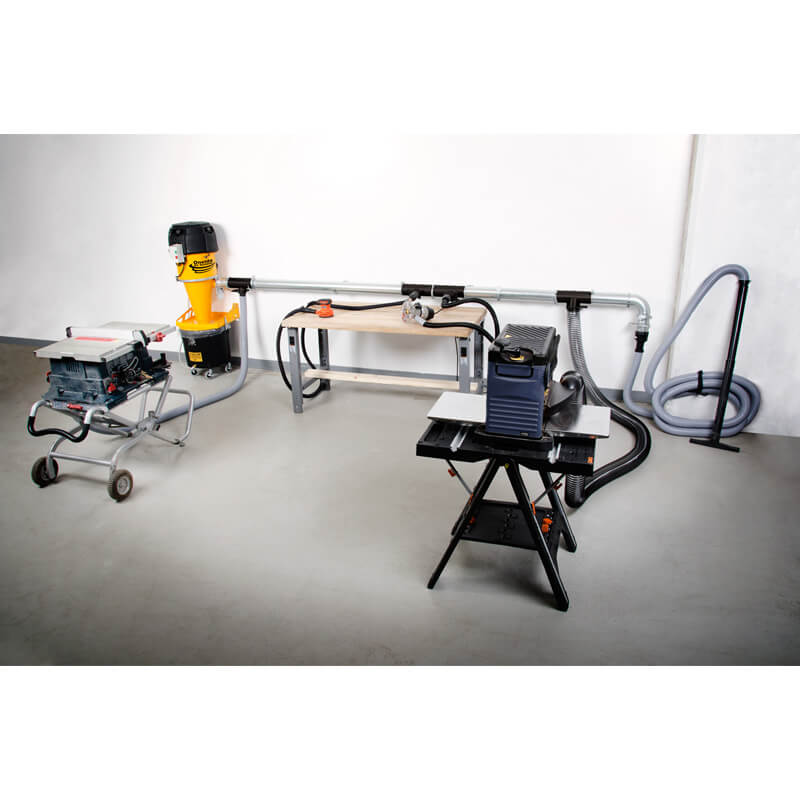

The Supercell Turbo is ideal for handheld and portable tools – especially small CNC routers. Its adaptable design mounts conveniently to the wall and can be installed virtually anywhere in the shop, connecting to tools by up to an astounding 100 feet of 4″ hose or ductwork. Check out Supercell Ductwork & Hose Kit to get started!

Included Features & Components

  • Combined 6.7HP 230V High-Pressure Fan Motors (30A Breaker Required)

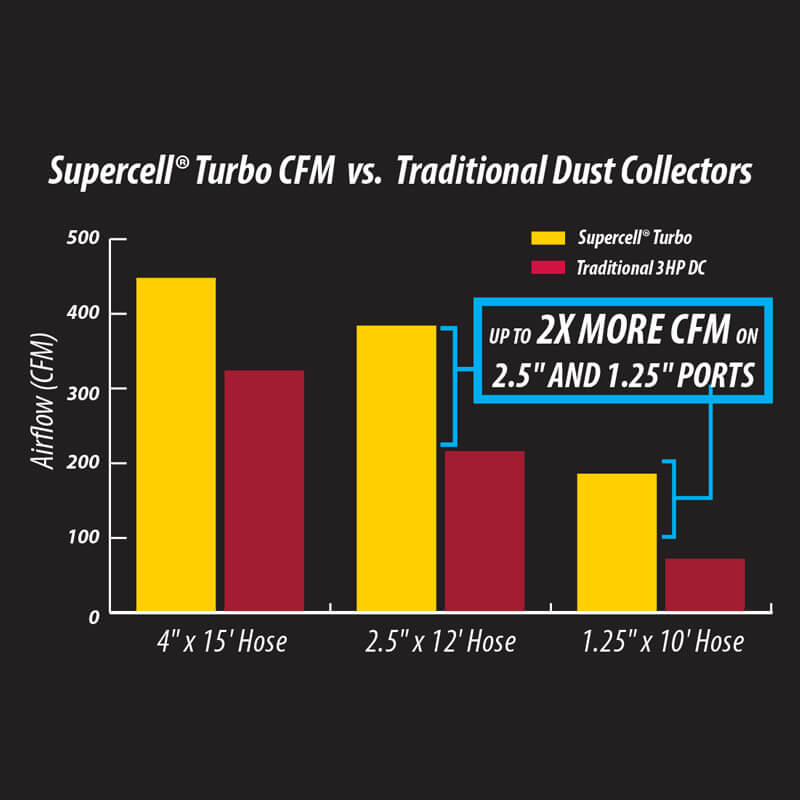

  • Up to 10x More Suction Power and 2x More CFM (through smaller ports) than Standard Dust Collectors
  • Simultaneously Supports Up to Three 1″ to 2.5″ Dust Ports
  • Wireless Radio Frequency Remote Control Keyfob
  • High-Efficiency Heavy-Gauge Steel Cyclone Separator
  • HEPA-Grade Filter Media
  • Internal Pulse Filter Cleaner System
  • Reinforced 30-Gallon Dust Bin with Viewing Window

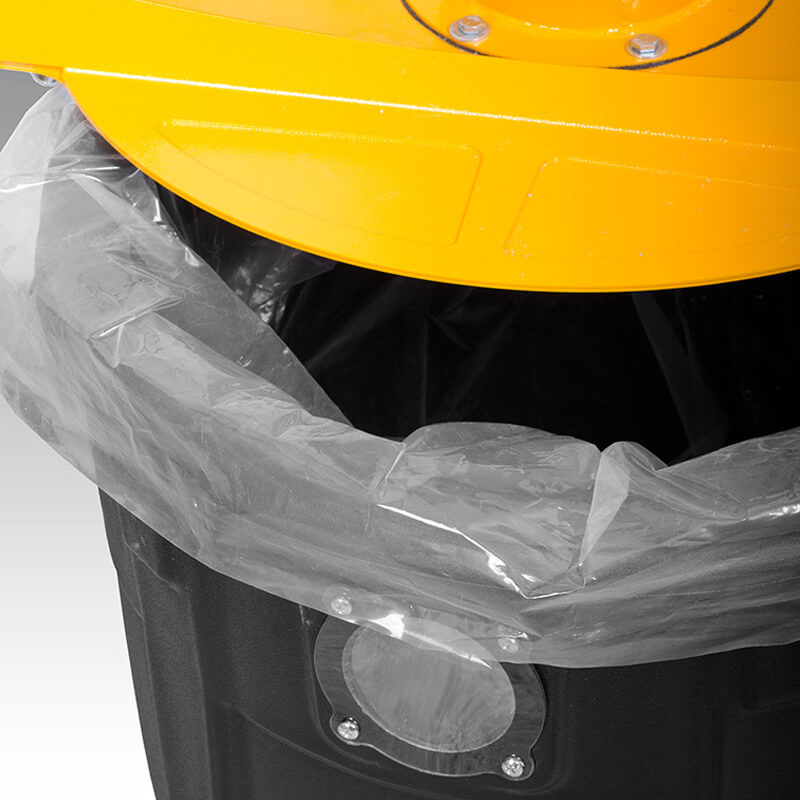

  • Automatic Bag Holder System (5 Free Bags Included)
  • Dust Sentry™ Bin Fill Level Indicator
  • Compact Wall-Mounting Bracket (fits 16″ Standard Stud-Spacing)
  • 4″ x 25′ Reinforced Vacuum-Rated Flex Hose *
  • 1 Year Limited Warranty
  • cETLus Certified and NFPA Compliance Ready

Specifications

Horsepower 6.7 hp
Motor Type 4x 1300W Modular Motors
Voltage 220-240V
Recommended Breaker Size 30A
Amperage (Typical) 22A
Phase Option Single-Phase (Pre-Wired)
Frequency 60Hz
Power Connector Type
Power Cord Length 9 feet

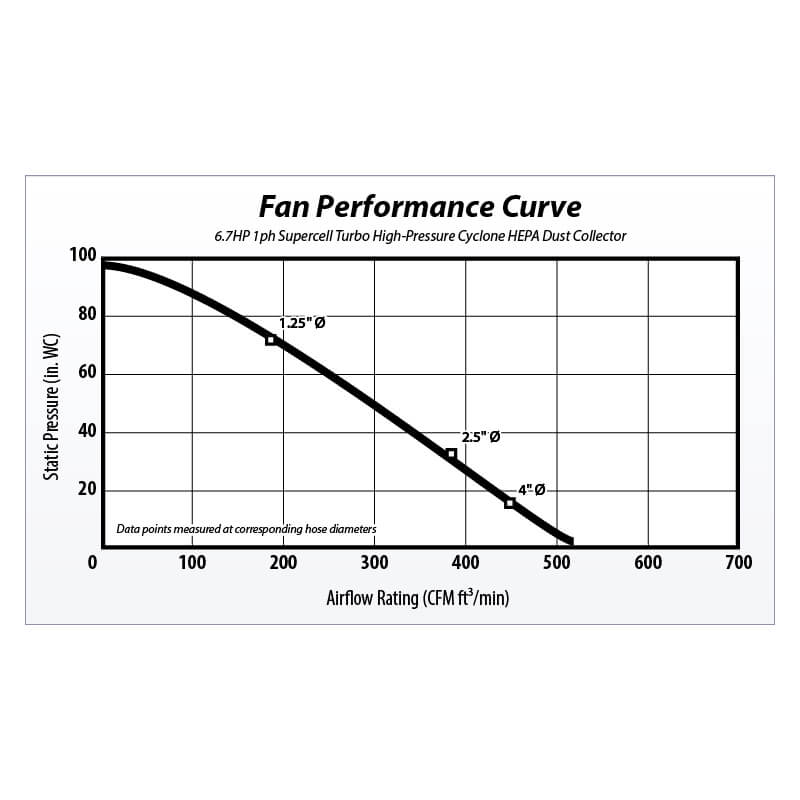

Real CFM Rating 518 CFM @ 2.7" WC
Free Fan CFM Rating 634 CFM
Maximum Suction 97.8” WC
Noise Level 85 dBA @ 10 ft
Motor Speed Type Fixed
Cyclonic Separation Efficiency Removes over 99% of fine wood dusts
Filter Type HEPA Grade ePTFE Media
Filtration Efficiency E12 Minimum Efficiency Rating
Total Filtration Area 40 sq ft
Waste Capacity 30 Gallons
Remote Control Included
Primary Build Materials Cold Rolled Steel
Welding Seam Welded
Static Resistance Rating Conductive (Metal)
Color Yellow
Inlet Size 4" O.D.
Width 20"
Depth 23"

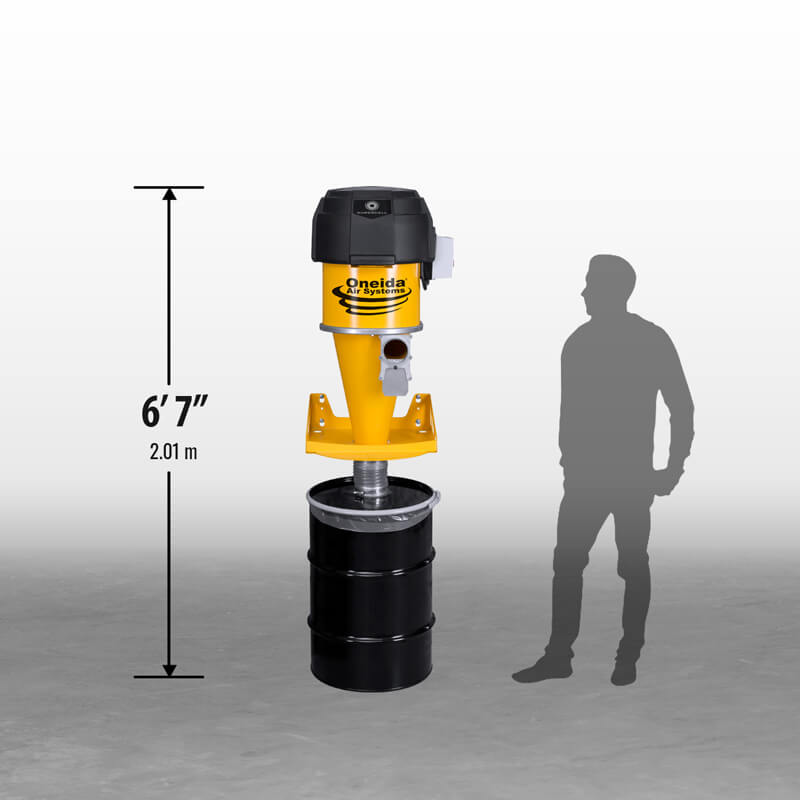

Height 79.2"
Allow for an additional 24" of clearance height for access to the filter during maintenance.
Actual Weight 150 lbs
Contents Fan Motor Assembly, Magnetic Starter, Remote Control, Cartridge Filter, Pulse Filter Cleaner, Cyclone Separator, Wall Bracket, Blast Gate, 2x Turn Key Clamp, Dust Bin, Dust Sentry Bin Level Indicator, Automatic Bag Holder System, 25' x 4" Vacuum Pressure Rated Hose, 5x Liner Bags, Viewing Window, Hardware
Manufacturer Oneida Air Systems
Warranty Information 1 Year Limited Warranty
