TE-122 CNC High Precision Tool Holder Extension 1/4 Shank, 5-1/2 Inch Length, 55/64 Inch Dia., 1/4 Inch Inner Dia.
$153.83
Usually ships on the 2nd business day from order date.

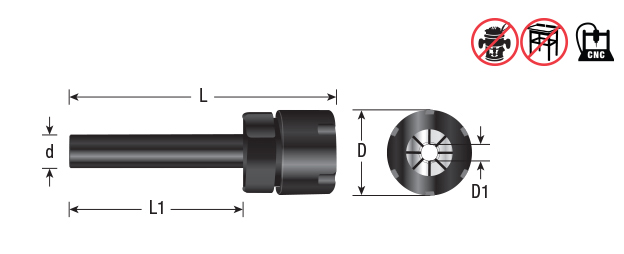

| Diameter-d | 55/64 |
|---|---|
| Shank-d | 1/4 |
| Overall-length-l | 5-1/2 |
| Collet-standard | ER-16 |
| L1 | 4 |
| Spring-collet-included | CO-296 |
| D1 | 1/4 |
| Included-wrench | WR-122 |
Description
Heat Treated Alloy Steel

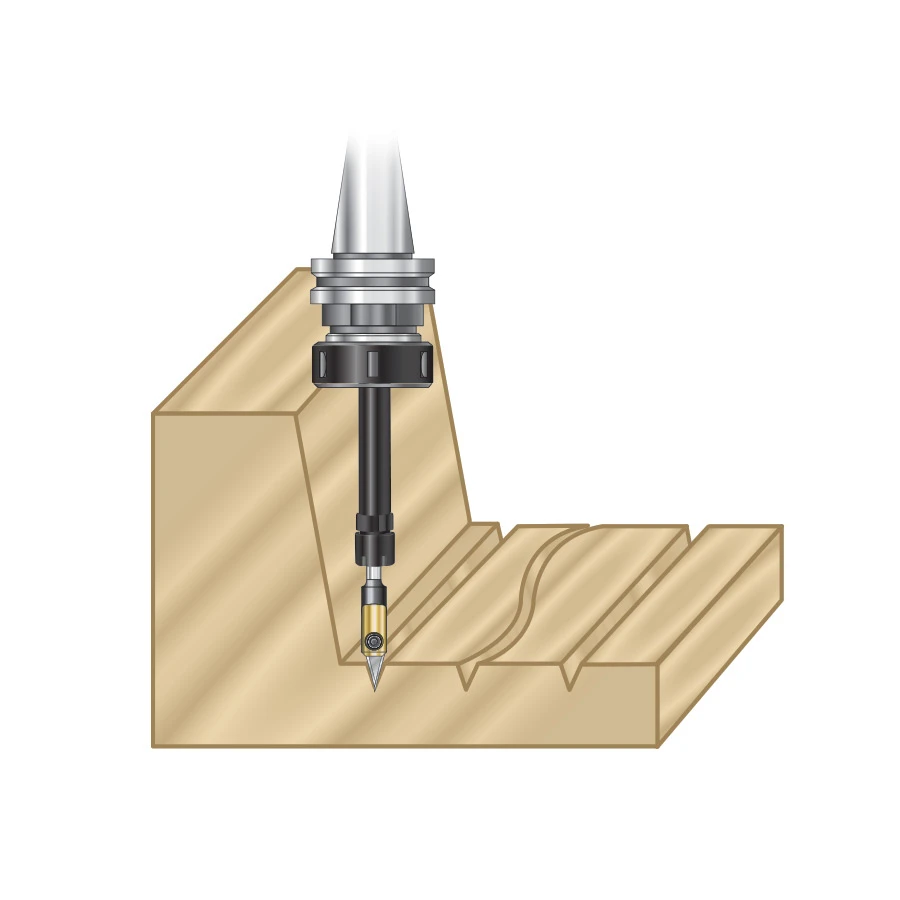

ER collet chucks used for different projects and applications save money by not purchasing extra-long tools! Choose the correct size spring collet for your bit, set the tool depth and tighten the collet nut using the mini wrench. Have the extra reach you need at economical prices with this CNC tool holder extender.
- 1/4″ inner diameter spring collet included
- ER mini nut and spring collet included with each ER straight shank tool extension ideal for hard to reach surfaces
- Shank to pocket runout 0.0004″ (0.01mm)
- Precision ground for best Total Indicator Runout (TIR)
- Spring collets can easily be changed
- Black oxide finish for corrosion protection
- Max RPM = 10 000 for safe operation

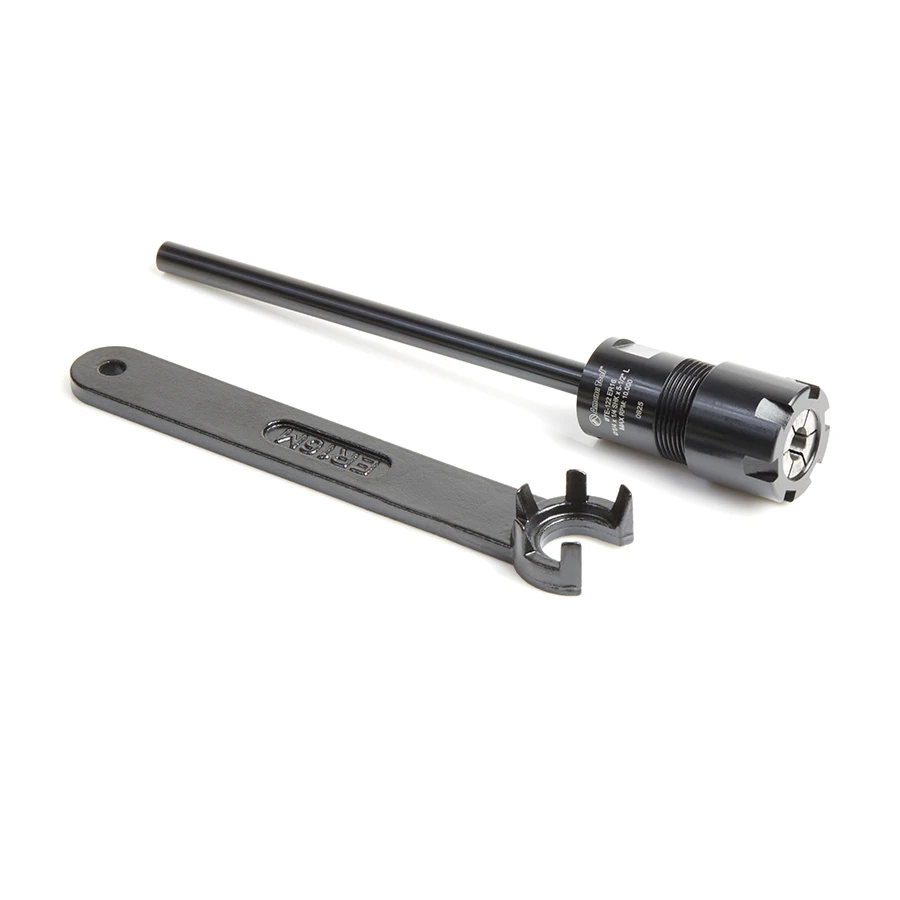

Spring collet and wrench included.
Specifications
| Diameter (D) | 55/64 |
| Shank (d) | 1/4 |
| Overall Length (L) | 5/12 |
| Collet Standard | ER-16 |
| L1 | 4 |
| Spring Collet Included | CO-296 |
| D1 | 1/4 |
| Included Wrench | WR-122 |
