Description
For fine-line “engraving” in wood and composite materials, use either of these compact bits. Two-flute configuration and modest length (which minimizes vibration) combine to produce crisp, clean cuts.

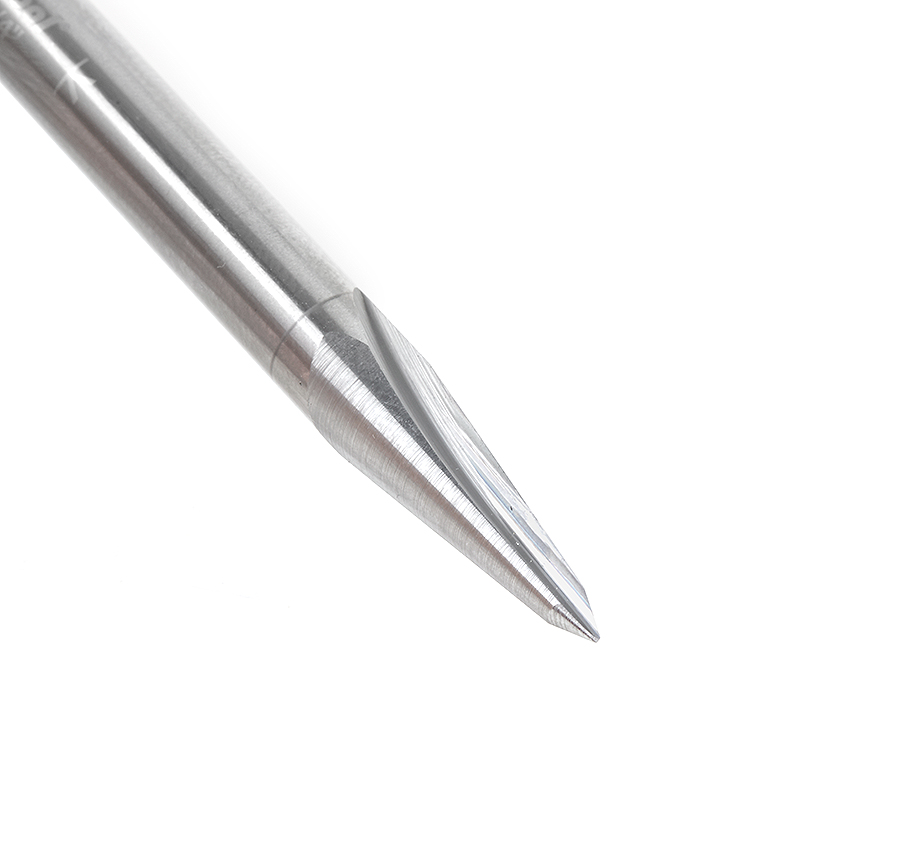

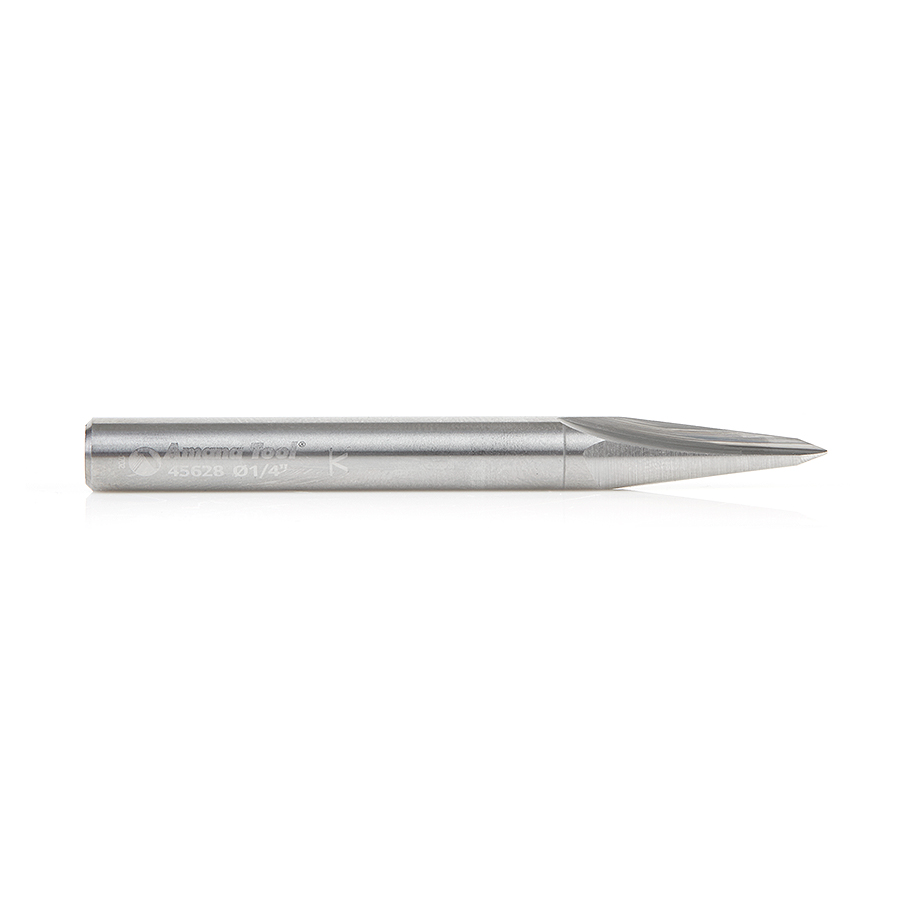

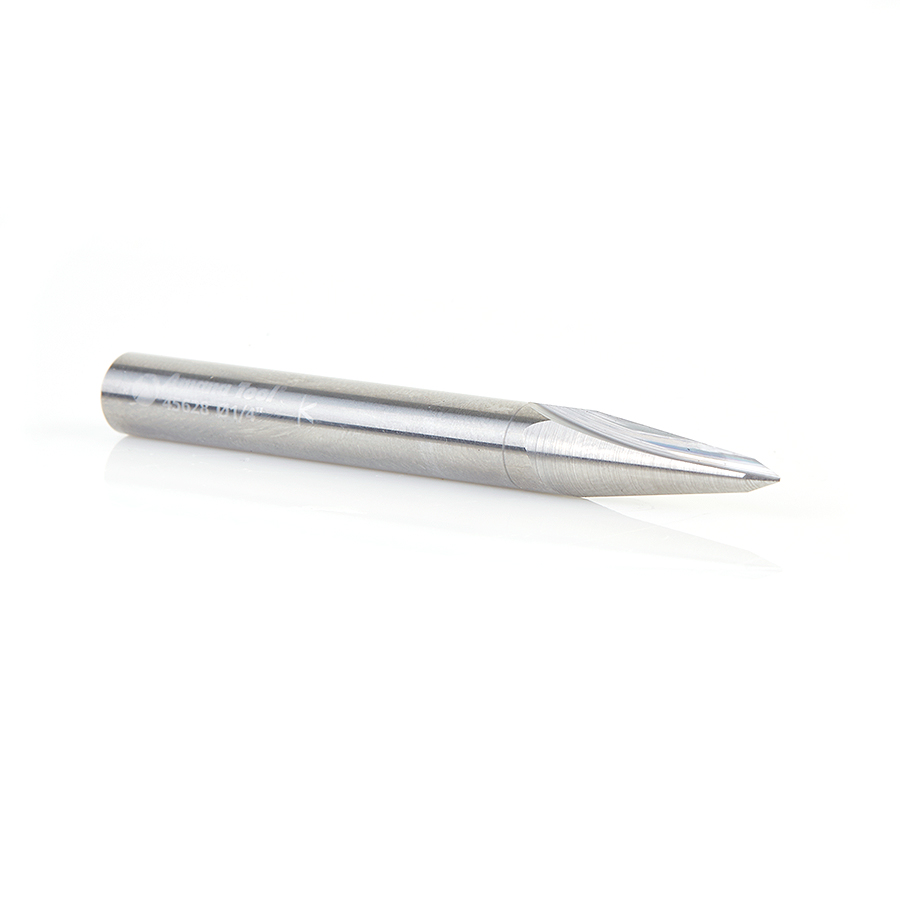

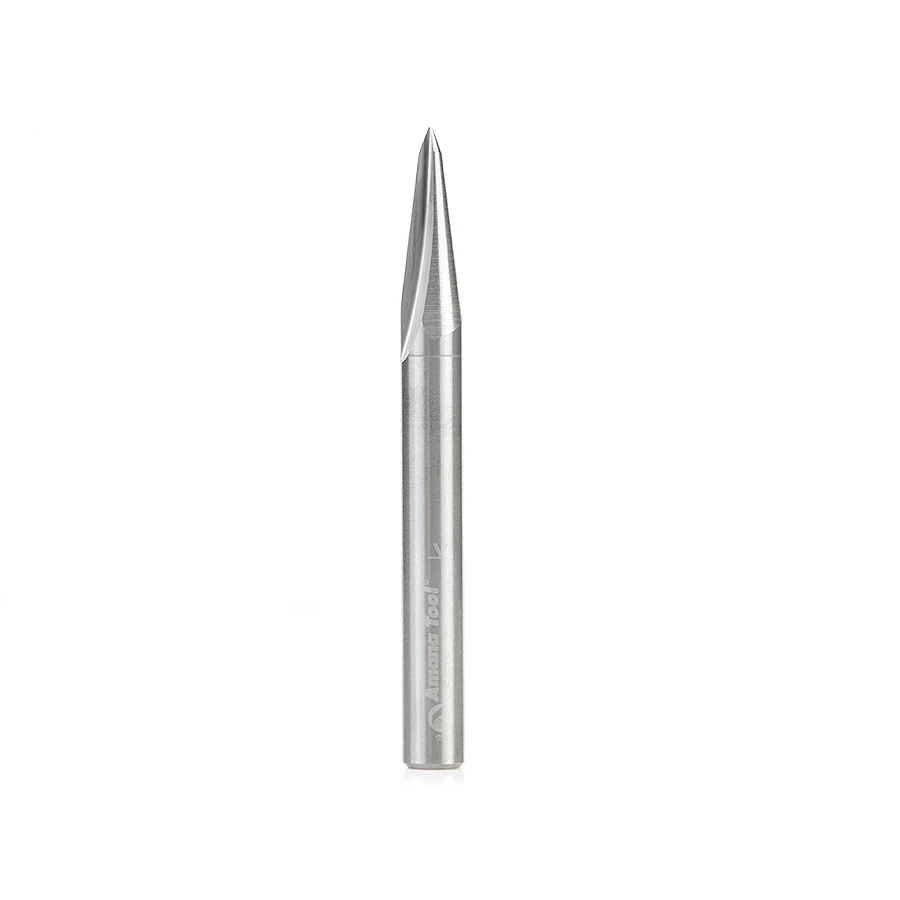

45628 Solid Carbide V Groove Engraving 15 Deg x 1/4 Dia x 0.666″ x 1/4 Inch Shank
$60.83
Usually ships on the 2nd business day from order date.

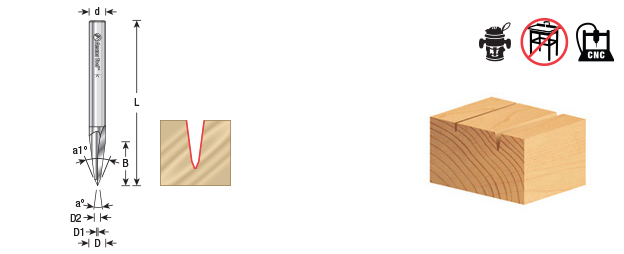

| Angle-a | 15° |
|---|---|
| A1 | 45º |
| Diameter-d | 1/4 |
| D1 | 0.020" |
| Cutting-height-b | 0.666" |
| Shank-d | 1/4 |
| Overall-length-l | 2-1/2 |
| D2 | 3/32 |
| Flutes | 2 |
Specifications
| Angle (a°) | 15° |
| a1° | 45º |
| Diameter (D) | 1/4 |
| D1 | 0.020" |
| Cutting Height (B) | 0.666" |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-1/2 |
| D2 | 3/32 |
| Flutes | 2 |
