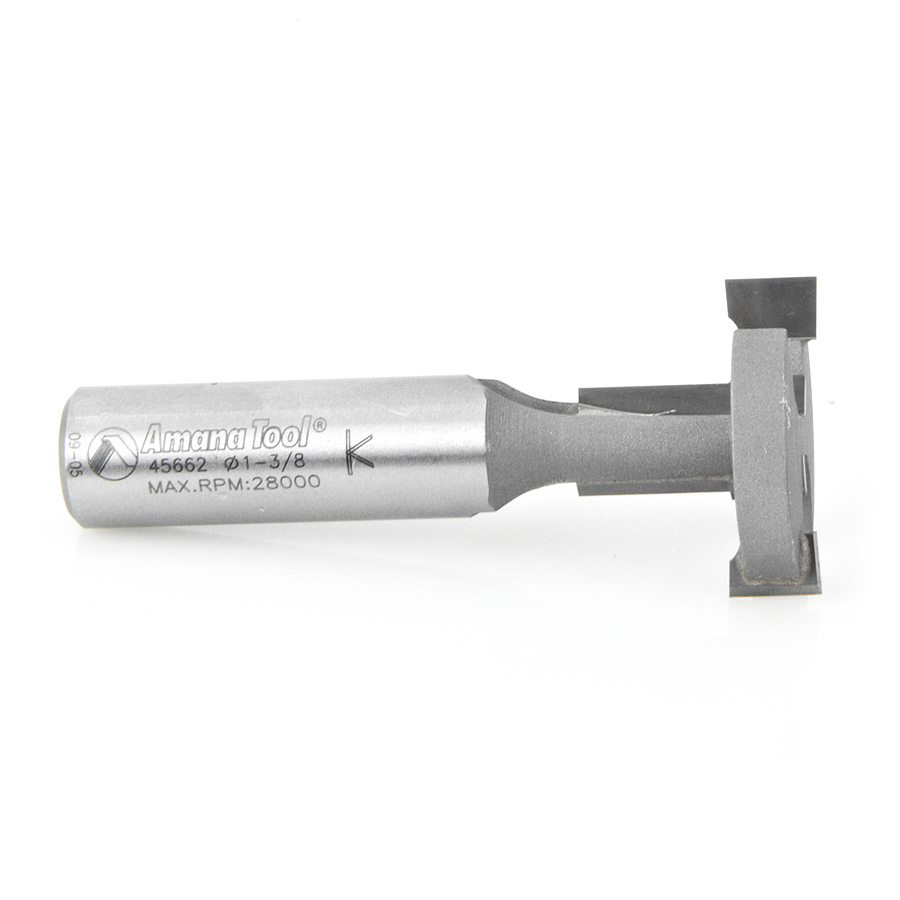

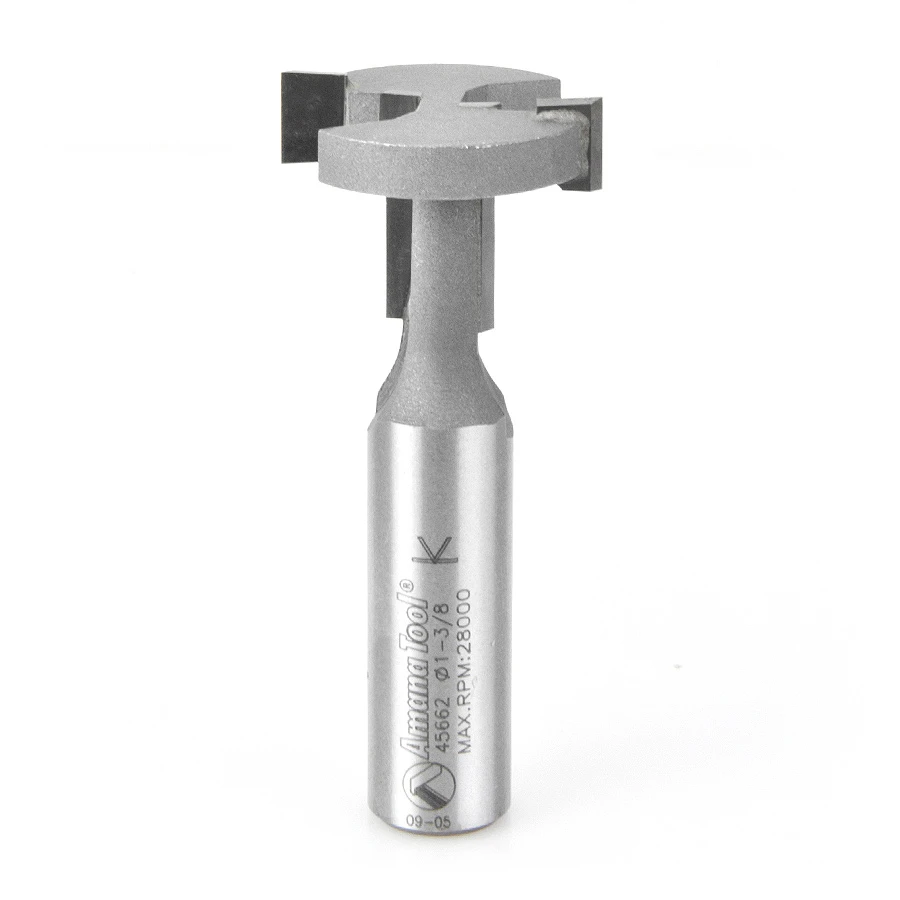

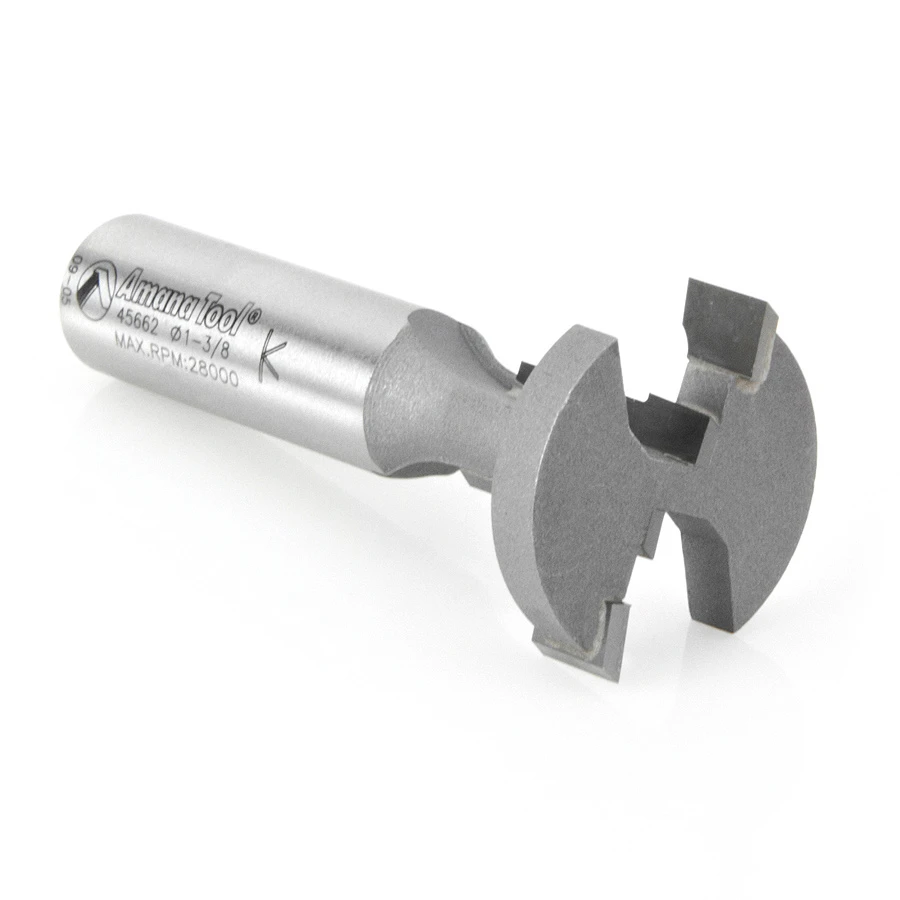

45662 T-Slot Square Edge 1-3/8 Dia x 7/8 x 1/2 Inch Shank
$110.99
Usually ships on the 2nd business day from order date.
| Diameter (D) | 1-3/8 |
|---|---|
| D1 | 1/2 |
| (B) Cutting Height | 7/8 |
| B1 | 3/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-1/2 |
| Type | Straight |
| Flutes | 2 |
Description
Designed for creating T-slot wall panels (used to cut their characteristic slots for many purposes) and radiused edges on the T-slots (allow easier adjustment of fixtures on the completed wall panels). For best results use in CNC and table-mounted routers.
Note: These tools are designed for ‘groove-forming’ T-slot wall panels, they are not designed for plunging operations.
Specifications
| Diameter (D) | 1-3/8 |
| D1 | 1/2 |
| Cutting Height (B) | 7/8 |
| B1 | 3/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-1/2 |
| Type | Staright |
| Flutes | 2 |
