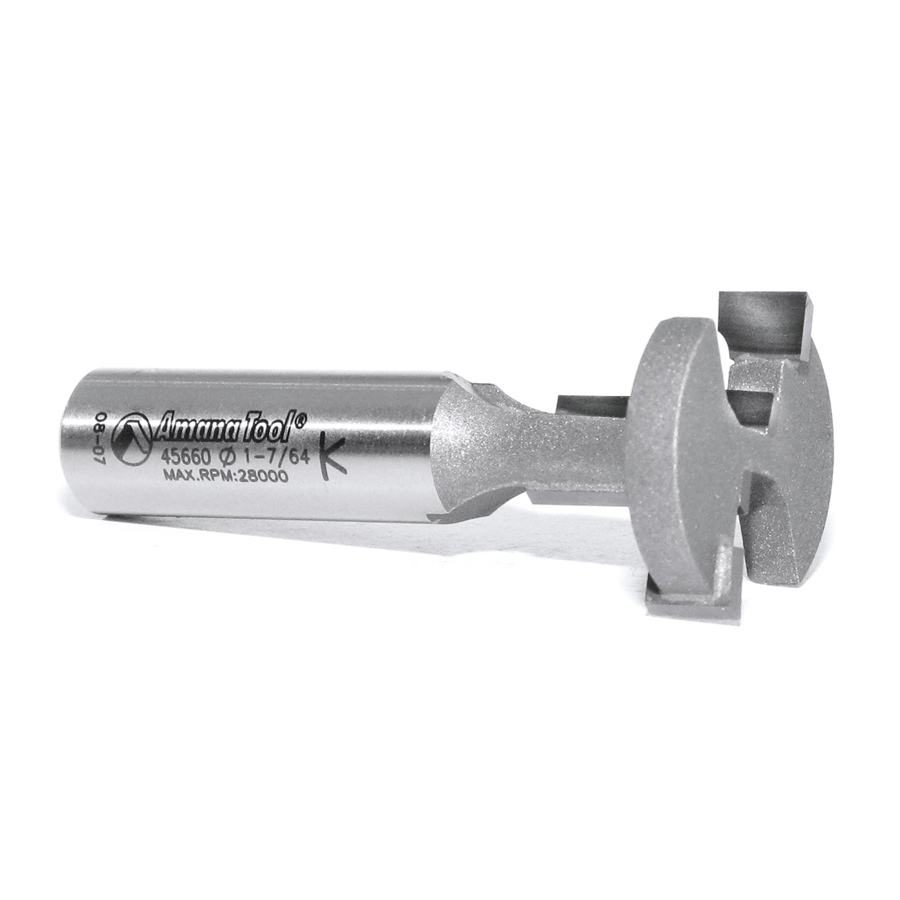

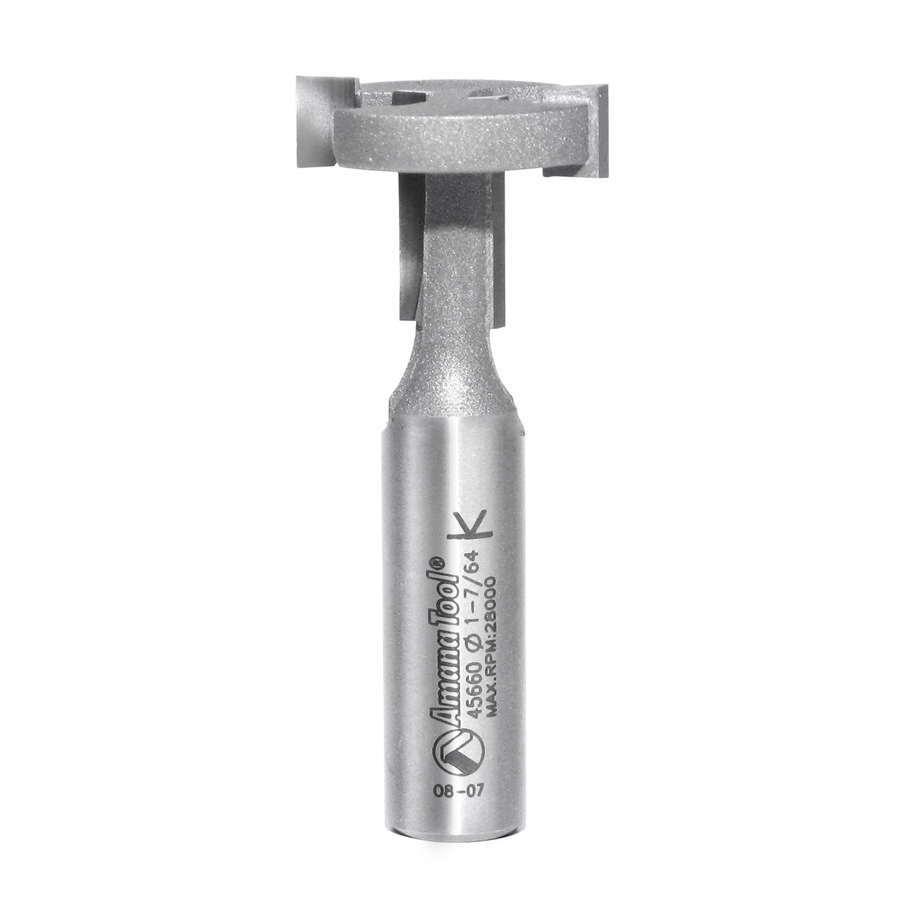

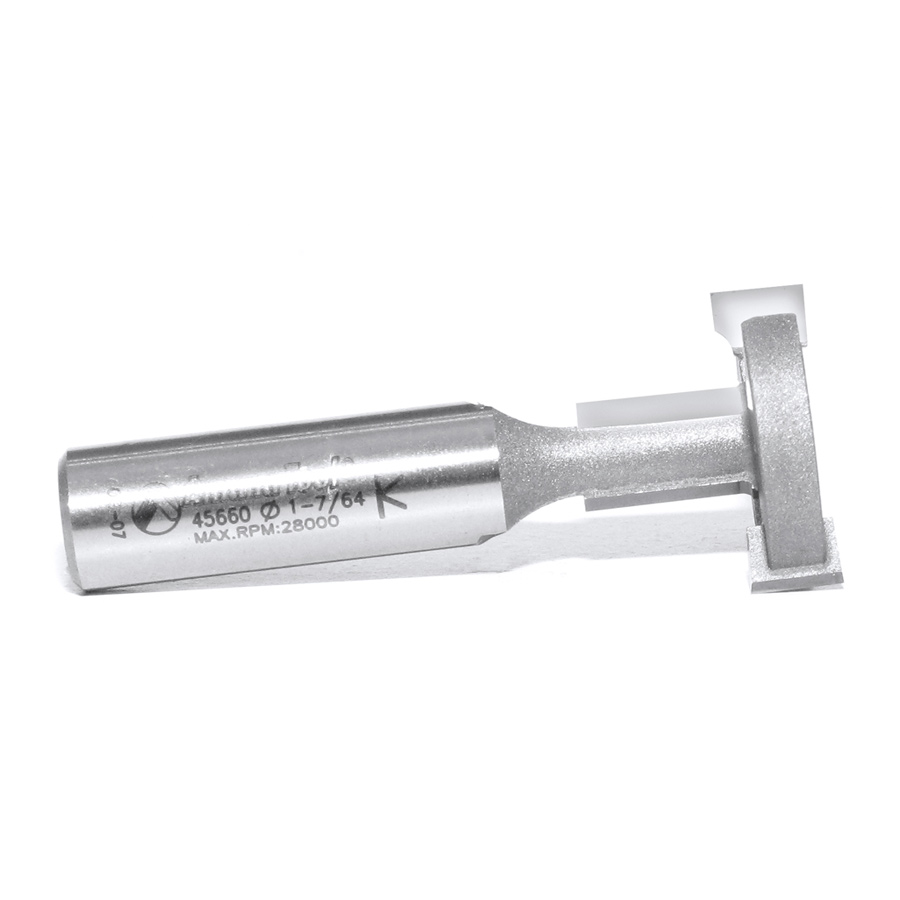

45660 T-Slot Square Edge 1-1/8 Dia x 13/16 x 1/2 Inch Shank
$94.35
Usually ships on the 2nd business day from order date.
Diameter (D) | 1-1/8 |
---|---|
D1 | 3/8 |
(B) Cutting Height | 3/16 |
B1 | 5/16 |
Shank (d) | 1/2 |
Overall Length (L) | 2-1/2 |
Type | Straight |
Flutes | 2 |
Description
Designed for creating T-slot wall panels (used to cut their characteristic slots for many purposes) and radiused edges on the T-slots (allow easier adjustment of fixtures on the completed wall panels). For best results use in CNC and table-mounted routers.
Note: These tools are designed for ‘groove-forming’ T-slot wall panels, they are not designed for plunging operations.
Specifications
Diameter (D) | 1-1/8 |
D1 | 3/8 |
Cutting Height (B) | 13/16 |
B1 | 5/16 |
Shank (d) | 1/2 |
Overall Length (L) | 2-1/2 |
Type | Straight |
Flutes | 2 |
