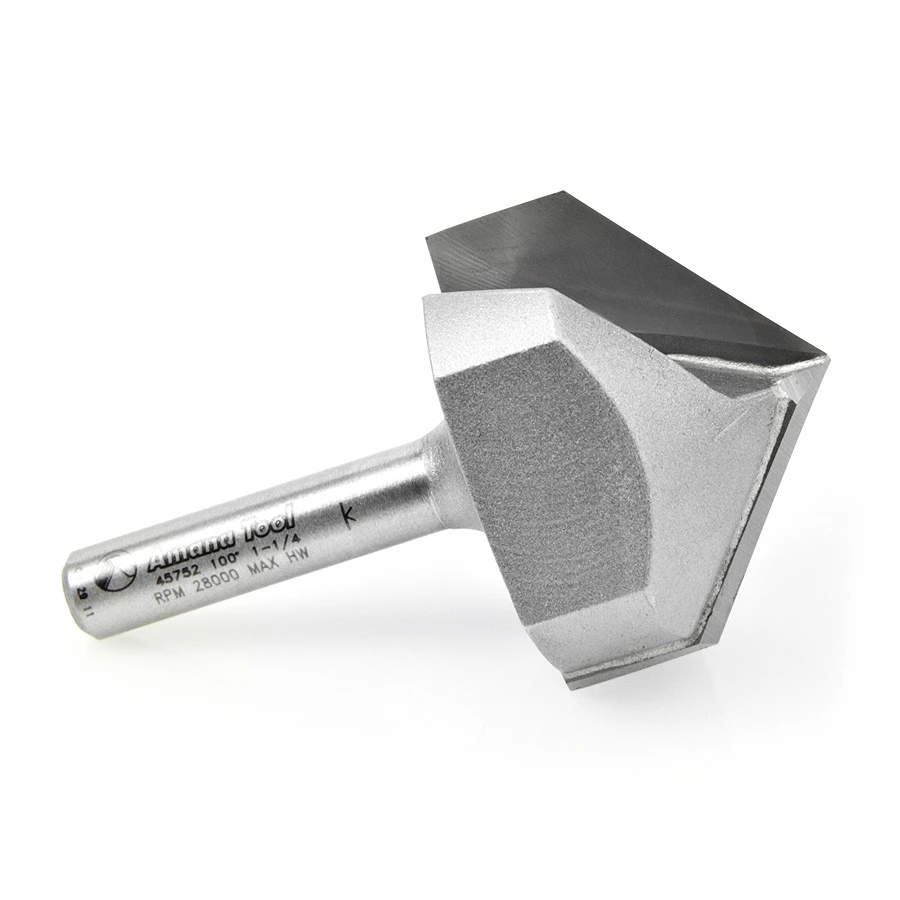

45752 Carbide Tipped V-Groove 100 Deg x 1-1/4 Dia x 17/32 x 1/4 Inch Shank

$154.84

Usually ships on the 2nd business day from order date.
Angle-a 100°
Diameter-d 1-1/4
Cutting-height-b 17/32
B1 53/64
Shank-d 1/4
Overall-length-l 2-3/32
Flutes 2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685757529.0 SKU: 45752 Categories: , ,

Description

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Excellent for cutting:

  • 20lbs High Density Urethane
  • Acrylic
  • Composites
  • Composite Decking
  • Foam
  • Laminate
  • MDF/HDF
  • Melamine
  • Plywood
  • PVC Plastic
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Wood
  • Xanita® Board

Specifications

Angle (a°) 100°
Diameter (D) 1-1/4
Cutting Height (B) 17/32
B1 53/64
Shank (d) 1/4
Overall Length (L) 2-3/32
Flutes 2
