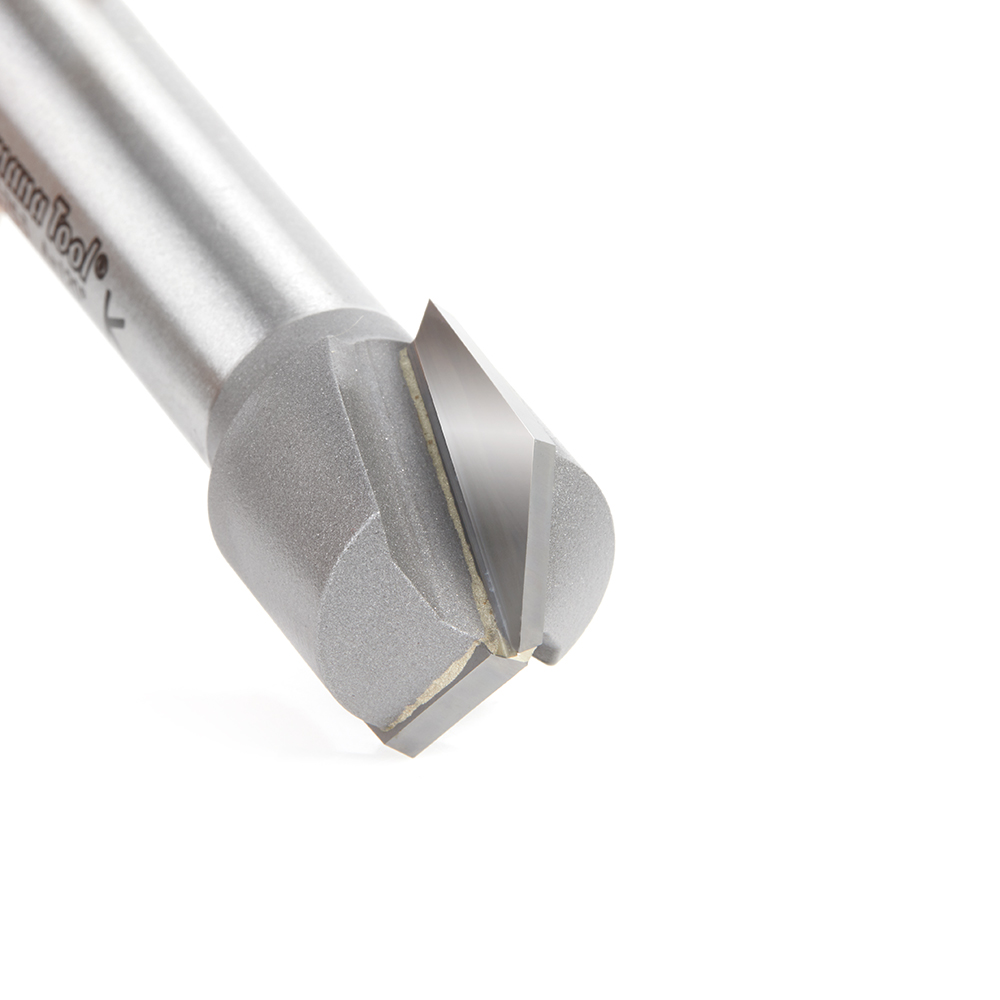

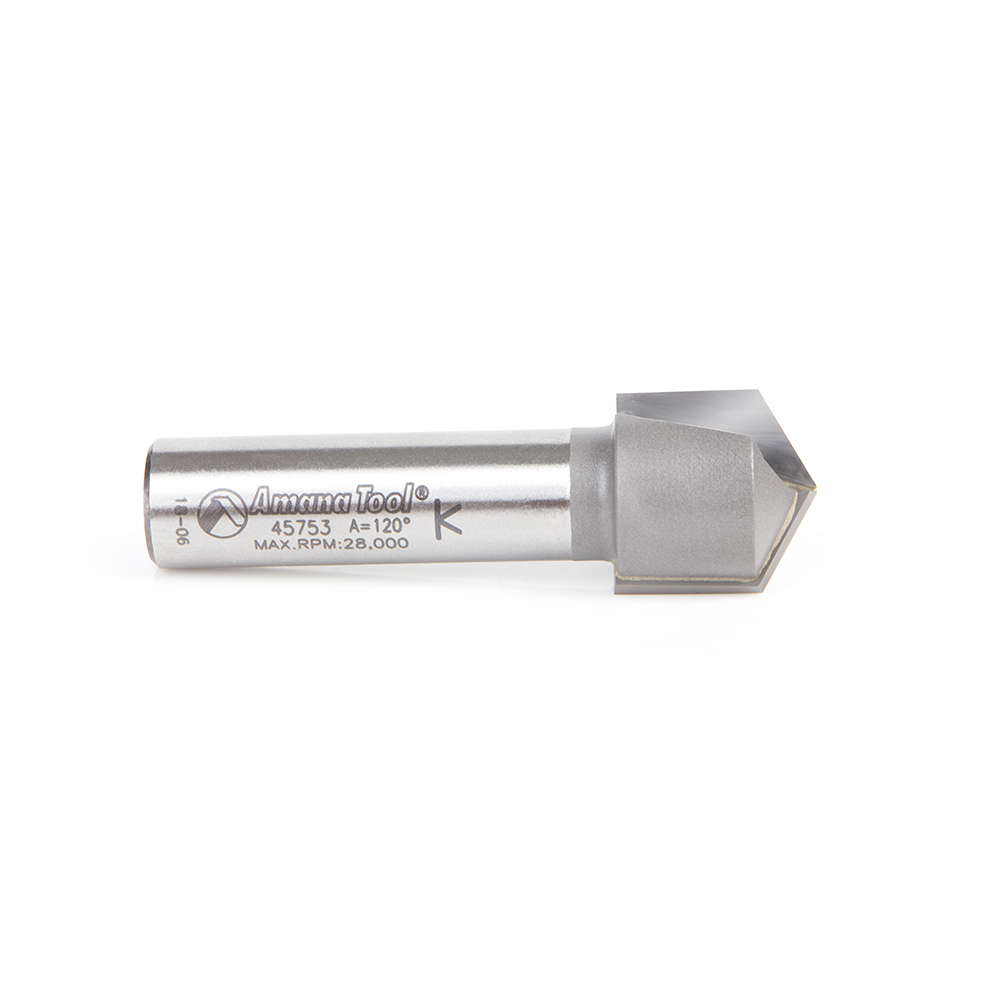

45753 Carbide Tipped V-Groove 120 Deg x 19.5mm (49/64) Dia x 5mm (13/64) x 12.7mm (1/2) Shank

$100.07

Usually ships on the 2nd business day from order date.

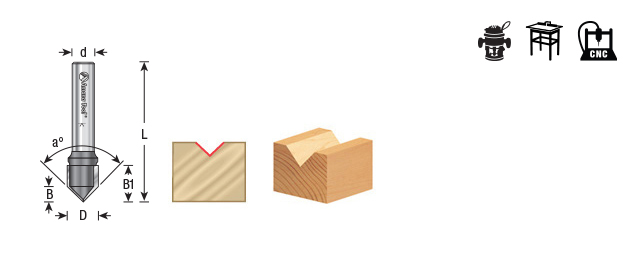

Angle (a°) 120°
Diameter (D) 19.5mm (49/64)
Cutting Height (B) 5mm (13/64)
B1 19.05mm (3/4)
Shank (d) 12.7mm (1/2)
Overall Length (L) 64.294mm (2-17/32)
Flutes 2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685005736 SKU: 45753 Categories: , ,

Description

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Excellent for cutting:

  • 20lbs High Density Urethane
  • Acrylic
  • Composites
  • Composite Decking
  • Foam
  • Laminate
  • MDF/HDF
  • Melamine
  • Plywood
  • PVC Plastic
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Wood
  • Xanita® Board

Specifications

Angle (a°) 120°
Diameter (D) 19.5mm (49/64)
Cutting Height (B) 5mm (13/64)
B1 19.05mm (3/4)
Shank (d) 12.7mm (1/2)
Overall Length (L) 64.294mm (2-17/32)
Flutes 2
