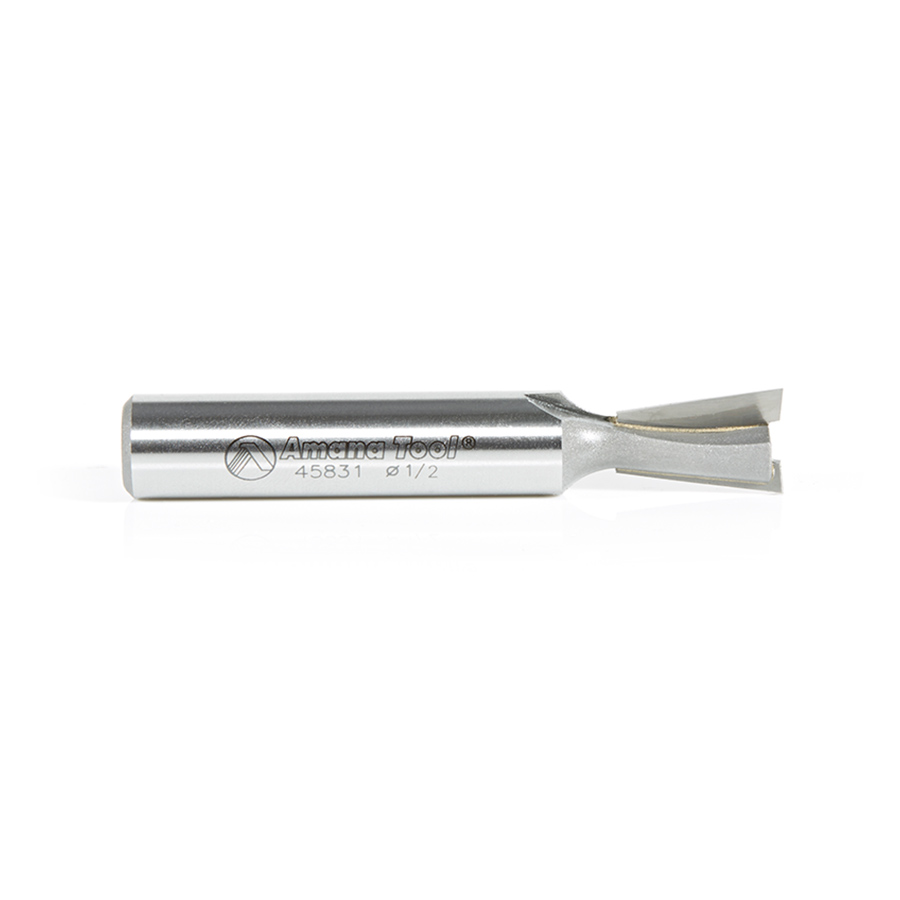

45831 Carbide Tipped Dovetail 7 Deg x 1/2 Dia x 25/32 x 1/2 Inch Shank Router Bit for Omni Jig Joinery System
$36.18
Usually ships on the 2nd business day from order date.
(a°) Angle | 7° |
---|---|
Diameter (D) | 1/2 |
(B) Cutting Height | 25/32 |
Shank (d) | 1/2 |
Overall Length (L) | 3-1/8 |
Flutes | 2 |
Application | Omnijig® Joinery System |
Description
For the Keller™ Dovetail Templates and certain Incra® applications, 7° dovetail bits are required. (Bits for the Keller™ system are supplied with shank-mounted bearings.) This angle is also used in cutting stair stringers.
Specifications
Angle (a°) | 7° |
Diameter (D) | 1/2 |
Cutting Height (B) | 25/32 |
Shank (d) | 1/2 |
Overall Length (L) | 3-1/8 |
Flutes | 2 |
Application | Omnijig® Joinery System |
