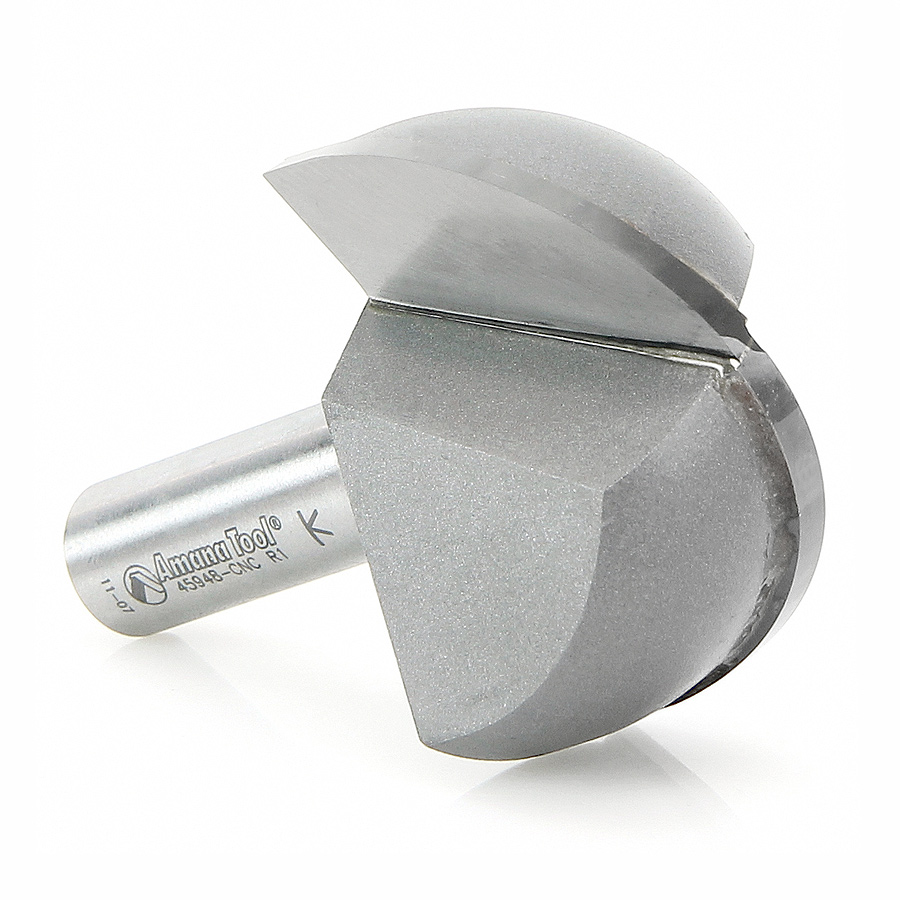

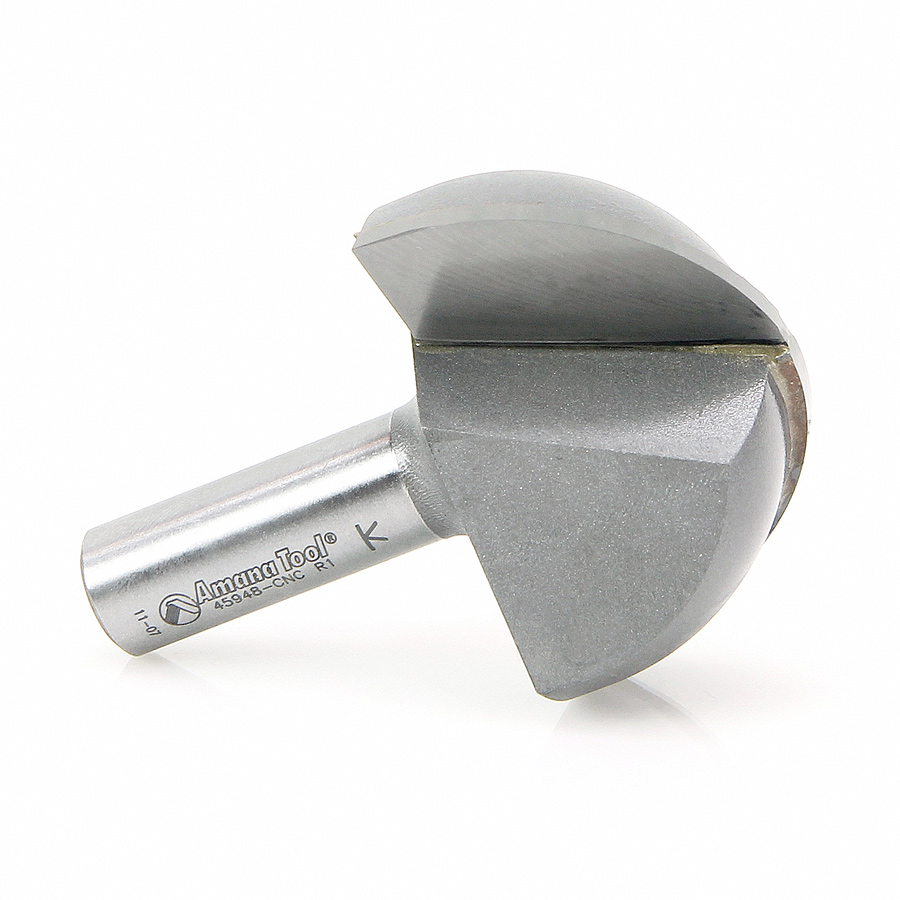

45948-CNC Carbide Tipped Core Box 1 Inch Radius x 2 Inch Dia x 1-1/4 x 1/2 Shank CNC
$217.43
Usually ships on the 2nd business day from order date.
| Diameter-d | 2 |
|---|---|
| Radius-r | 1 |
| B-cutting-height | 1-1/4 |
| Shank-d | 1/2 |
| Overall-length-l | 2-3/4 |
| Flutes | 2 |
Description
Cut half-round grooves for fluted moldings columns millwork and signs using a core box bit. Used with an edge guide it can cut coves. Perfect for making flutes on CNC machines.
Excellent for cutting:
- High Density Urethane (HDU Board)
- Laminate
- MDF
- Softwood/Hardwood
- Veneered Plywood
Maximum RPM 18 000.
These tools have an open flute design (not anti-kickback) and are intended for high feed-rate CNC machine use only.
Do not use in portable routers.

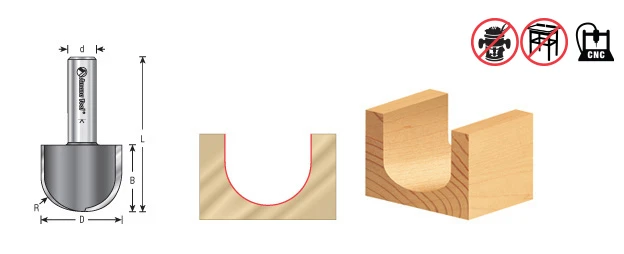

Specifications
| (D) Diameter | 2 |
| (R) Radius | 1 |
| (B) Cutting Height | 1-1/4 |
| (d) Shank | 1/2 |
| Overall Length (L) | 2-3/4 |
| Flutes | 2 |
