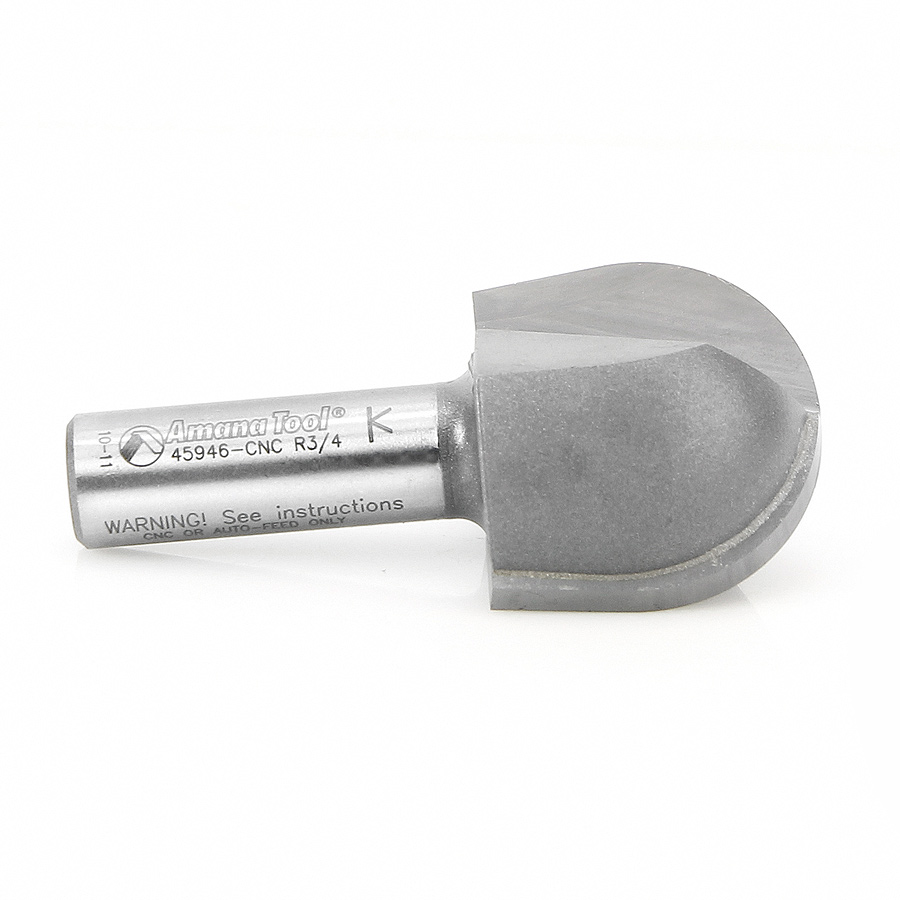

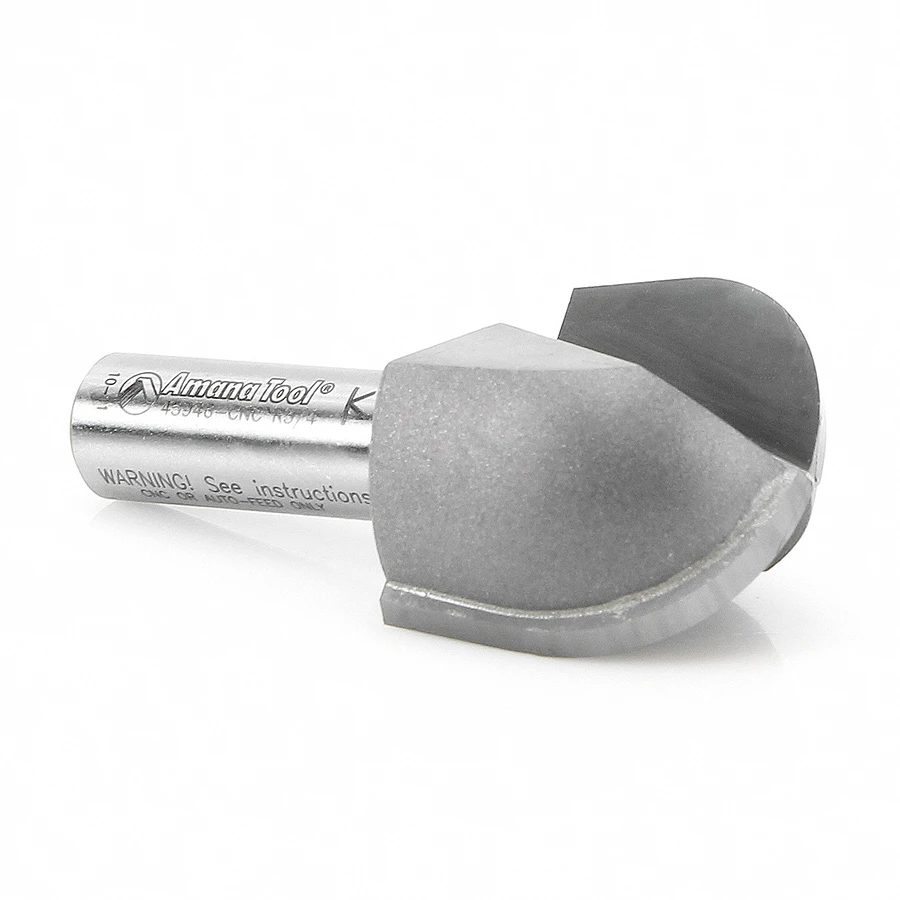

45946-CNC Carbide Tipped Core Box 3/4 Radius x 1-1/2 Dia x 1-1/4 x 1/2 Inch Shank CNC

$179.40

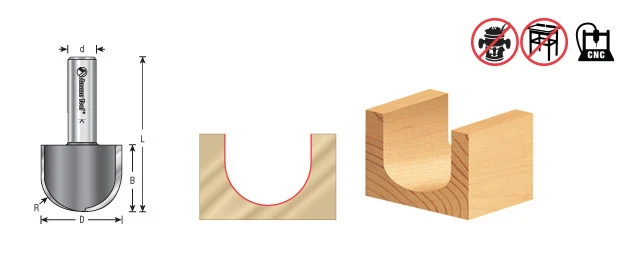

Diameter (D) 1-1/2
Radius (R) 3/4
(B) Cutting Height 1-1/4
Shank (d) 1/2
Overall Length (L) 2-3/4
Flutes 2

Description

Cut half-round grooves for fluted moldings columns millwork and signs using a core box bit. Used with an edge guide it can cut coves. Perfect for making flutes on CNC machines.

Excellent for cutting:
  • High Density Urethane (HDU Board)
  • Laminate
  • MDF
  • Softwood/Hardwood
  • Veneered Plywood

Maximum RPM 18 000.

These tools have an open flute design (not anti-kickback) and are intended for high feed-rate CNC machine use only.

Do not use in portable routers.

Specifications

(D) Diameter 1-1/2
(R) Radius 3/4
(B) Cutting Height 1-1/4
(d) Shank 1/2
Overall Length (L) 2-3/4
Flutes 2
