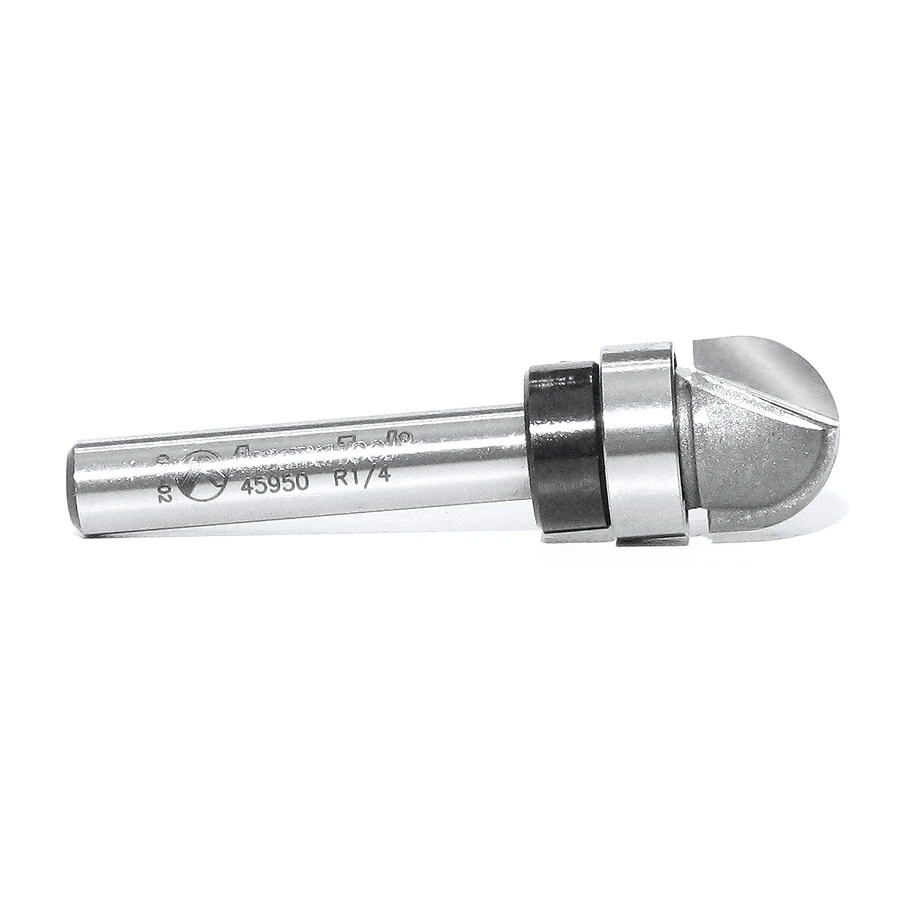

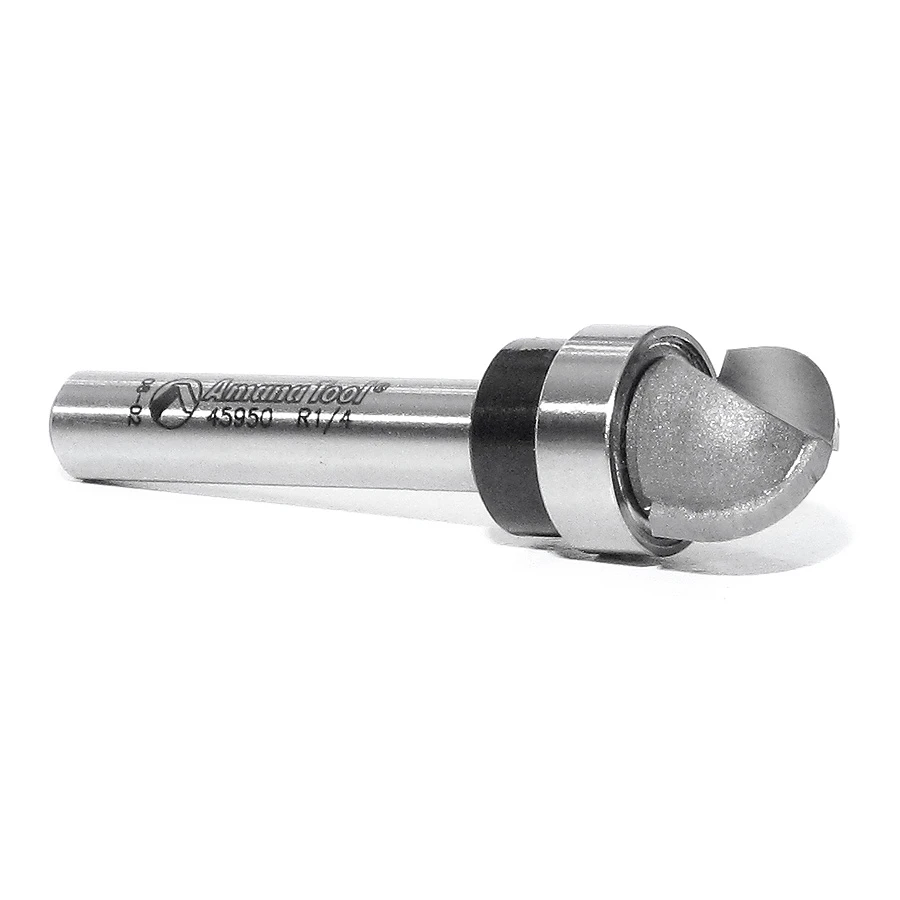

45950 Carbide Tipped Core Box 1/4 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank with Upper BB

$61.47

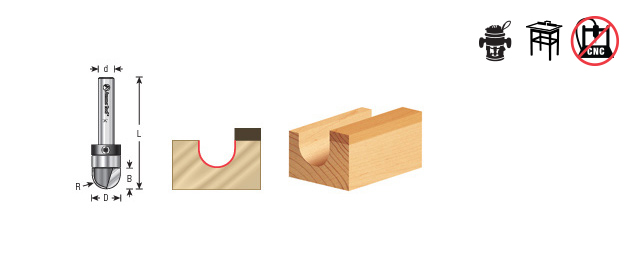

Diameter (D) 1/2
Radius (R) 1/4
(B) Cutting Height 3/8
Shank (d) 1/4
Overall Length (L) 2
Type Core Box
Replacement Collar 47724
Replacement Bearing 47701
Flutes 2

Description

Designed for fluting and ‘V’ grooving cuts guided by a template or pattern. The shank-mounted ball-bearing pilot rides along the template edge, and the cutter duplicates the template contour in the workpiece. With a handheld router, the template must be on top of the workpiece. With a table-mounted router, the template must be on bottom of the workpiece.

Specifications

Diameter (D) 1/2
Radius (R) 1/4
Cutting Height (B) 3/8
Shank (d) 1/4
Overall Length (L) 2
Type Core Box
Replacement Collar 47724
Replacement Bearing 47701
Flutes 2
