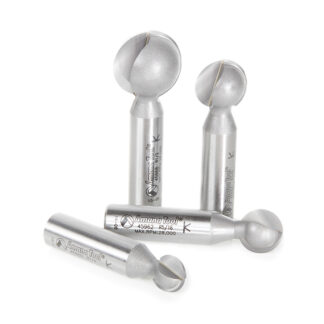

45962 Carbide Tipped Ball End 5/16 Radius x 9/16 Dia x 1/2 x 1/2 Inch Shank

$47.10

Diameter (D) 5/8
D1 9/32
Radius (R) 5/16
(B) Cutting Height 9/16
Shank (d) 1/2
Overall Length (L) 2-3/8
Flutes 2
SKU: #45962 Categories: ,

Description

Cut channels for pipes or cables using the ball end bit. The profile requires the cut to be made in a single pass. To reduce stress on the bit, cut an initial groove using a straight bit matching the D1 dimension of the ball end bit.

Note: Profile is useful as a ‘conduit’ for cables, pipes, etc.

Specifications

Diameter (D) 5/8
D1 9/32
Radius (R) 5/16
Cutting Height (B) 9/16
Shank (d) 1/2
Overall Length (L) 2-3/8
Flutes 2
