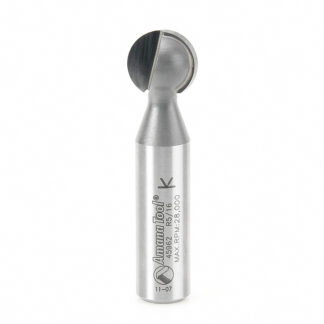

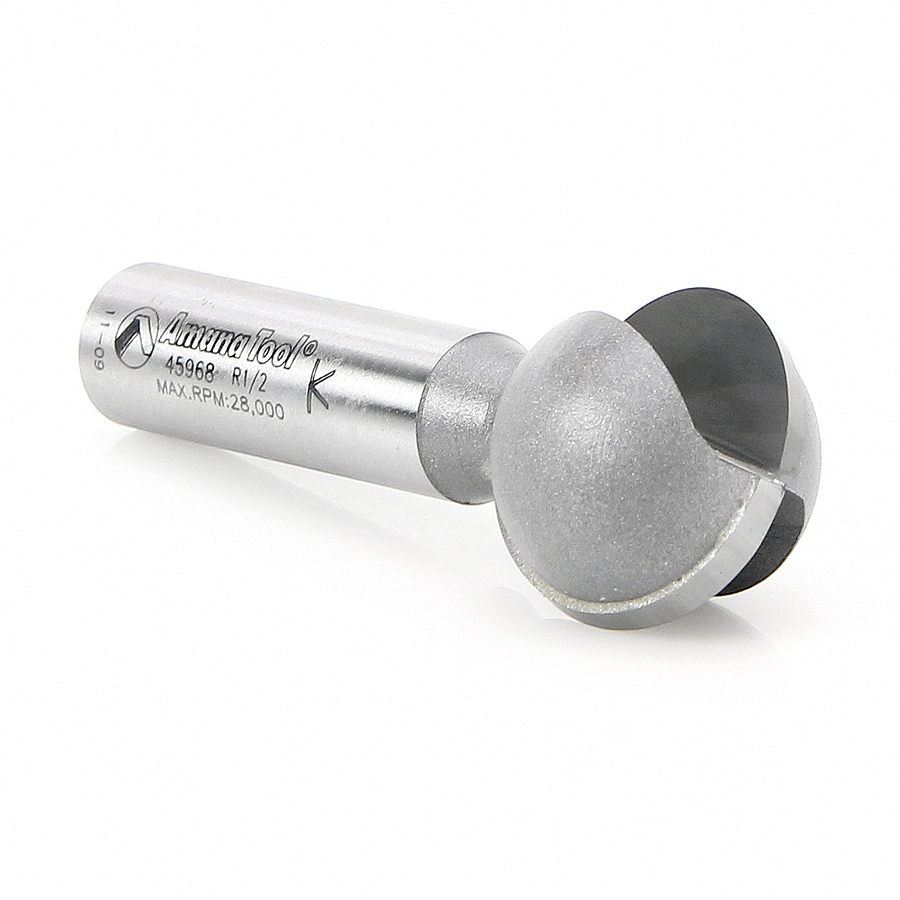

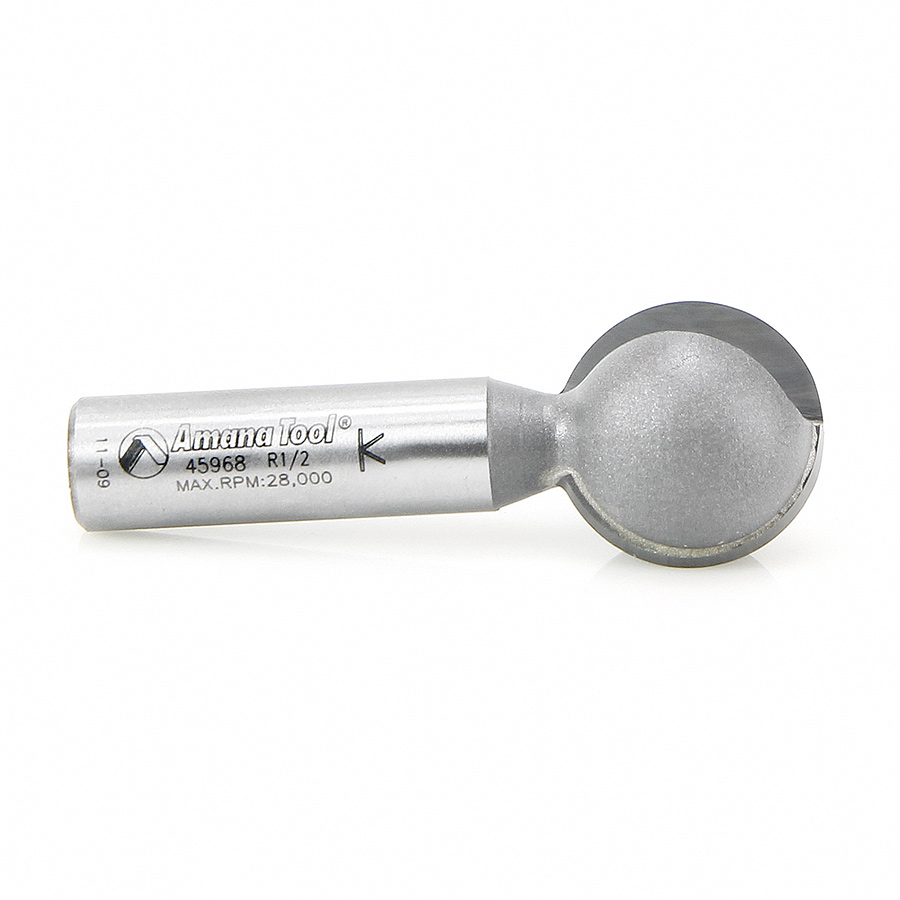

45968 Carbide Tipped Ball End 1/2 Radius x 15/16 Dia x 1/2 x 1/2 Inch Shank

$74.55

Usually ships on the 2nd business day from order date.

Diameter (D)	1
D1	11/32
Radius (R)	1/2
(B) Cutting Height	15/16
Shank (d)	1/2
Overall Length (L)	2-3/4
Flutes	2

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

45968 Carbide Tipped Ball End 1/2 Radius x 15/16 Dia x 1/2 x 1/2 Inch Shank quantity

+ Add to cart

UPC: 738685859681 SKU: 45968 Categories: Router Bits, Profiling Router Bits - Industrial Quality from Amana Tool, Ball End Router Bits

Share:

Description

Cut channels for pipes or cables using the ball end bit. The profile requires the cut to be made in a single pass. To reduce stress on the bit, cut an initial groove using a straight bit matching the D1 dimension of the ball end bit.

Note: Profile is useful as a ‘conduit’ for cables, pipes, etc.
