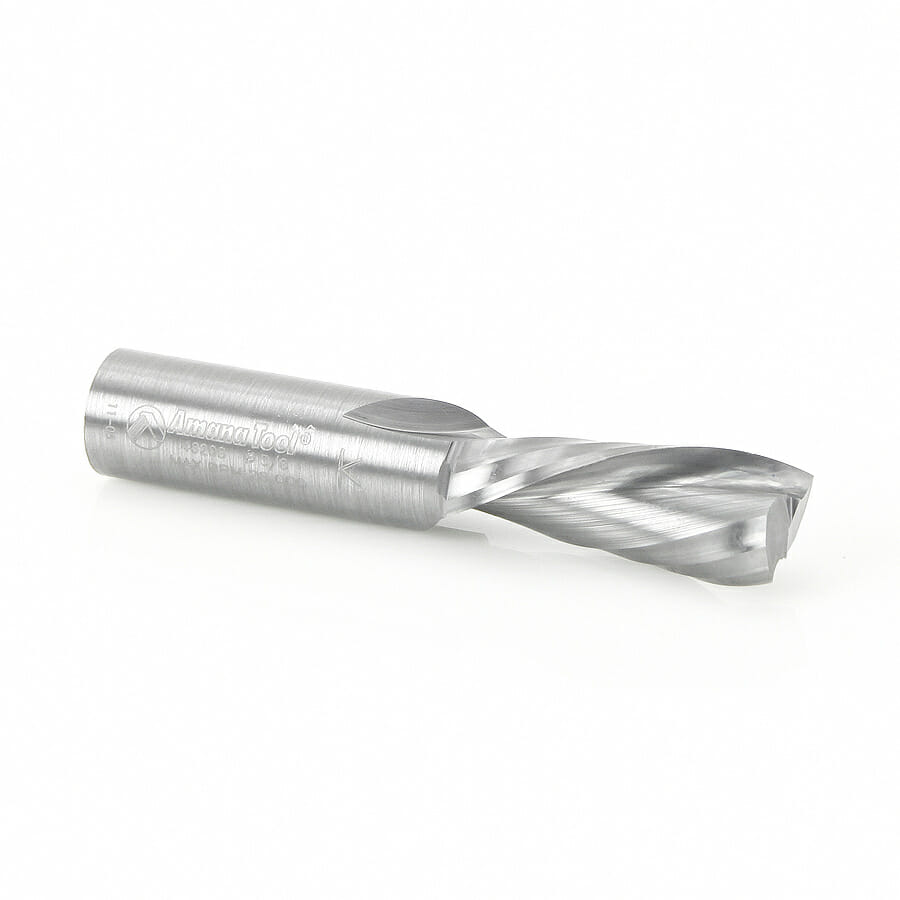

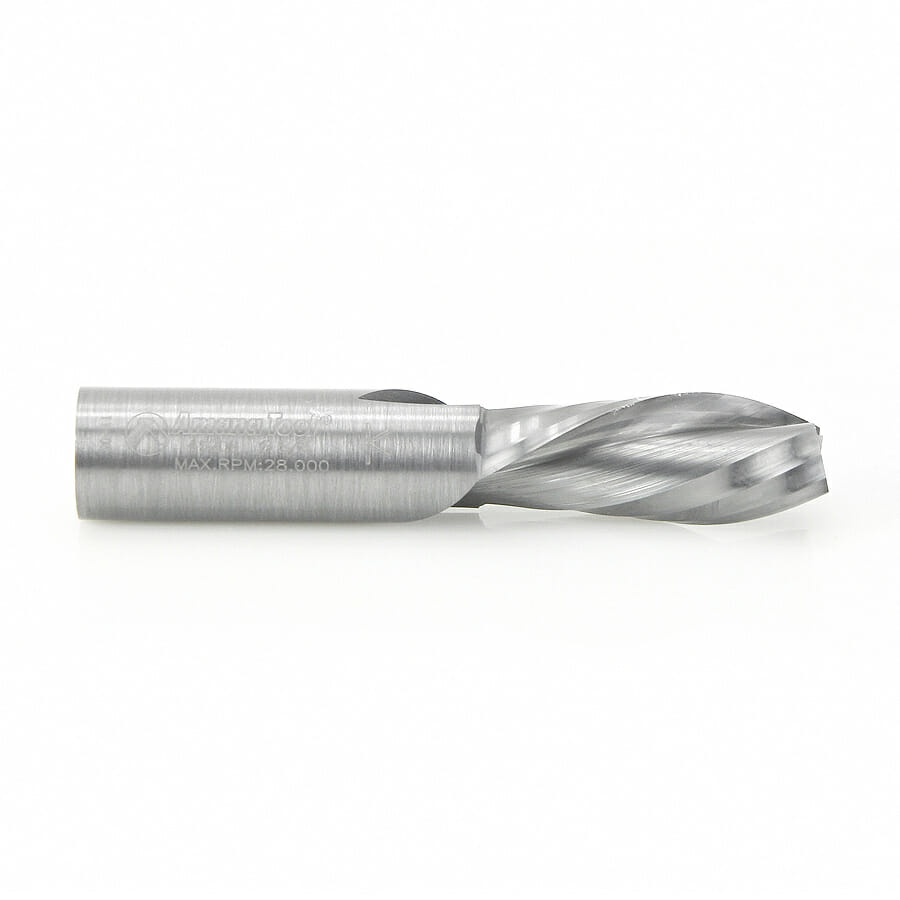

Solid Carbide Spiral Plunge 5/8 Dia x 1-5/8 x 5/8 Shank Down-Cut
$195.93

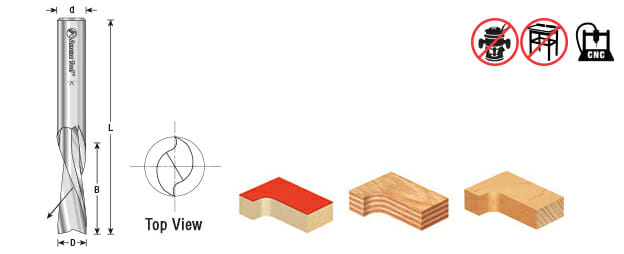

| Direction | Down-Cut |
|---|---|
| D Diameter | 5/8 |
| B Cutting Height | 1-5/8 |
| D Shank | 5/8 |
| Overall Length L | 3-1/2 |
| Flutes | 2 |
Description
Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut. The ‘Down-Cut’ cuts from the surface down leaving a smooth edge at the surface. Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Warning: This tool has an open flute design (not anti-kickback) and is intended for high feed-rate CNC machine use only. Do not use in portable routers. Vectric compatible tool file for 46208 available for download, . click here
Specifications
| Direction | Down-Cut |
| (D) Diameter | 5/8 |
| (B) Cutting Height | 1-5/8 |
| (d) Shank | 5/8 |
| Overall Length (L) | 3-1/2 |
| Flutes | 2 |
