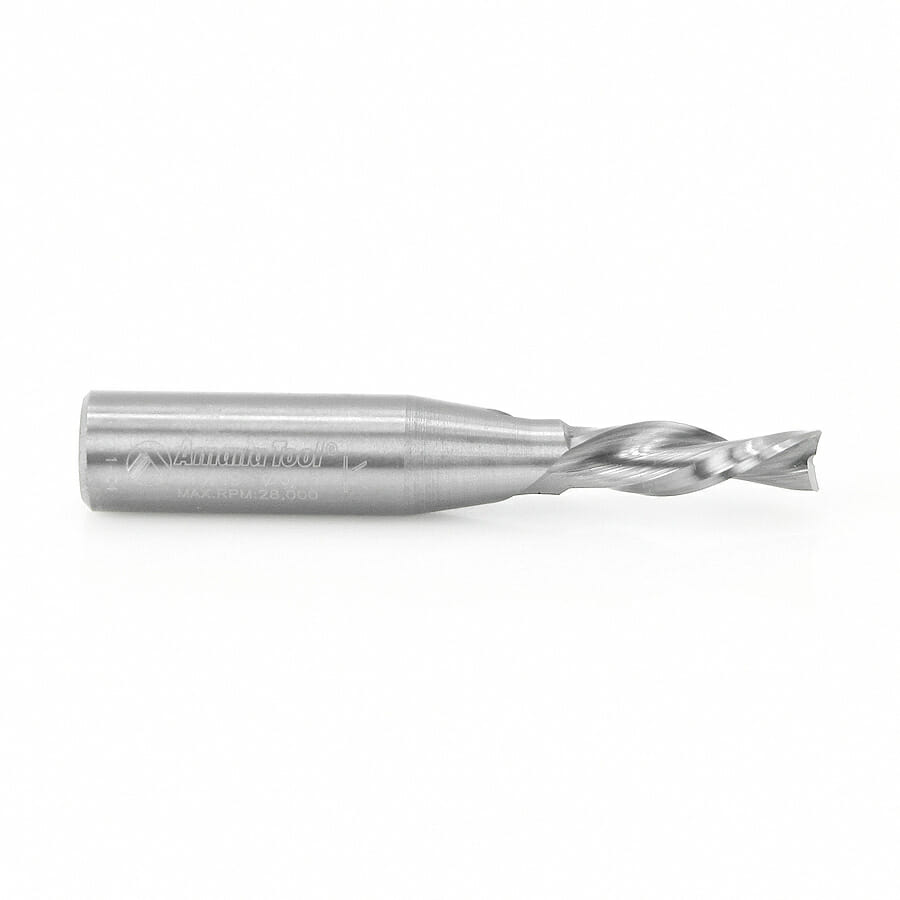

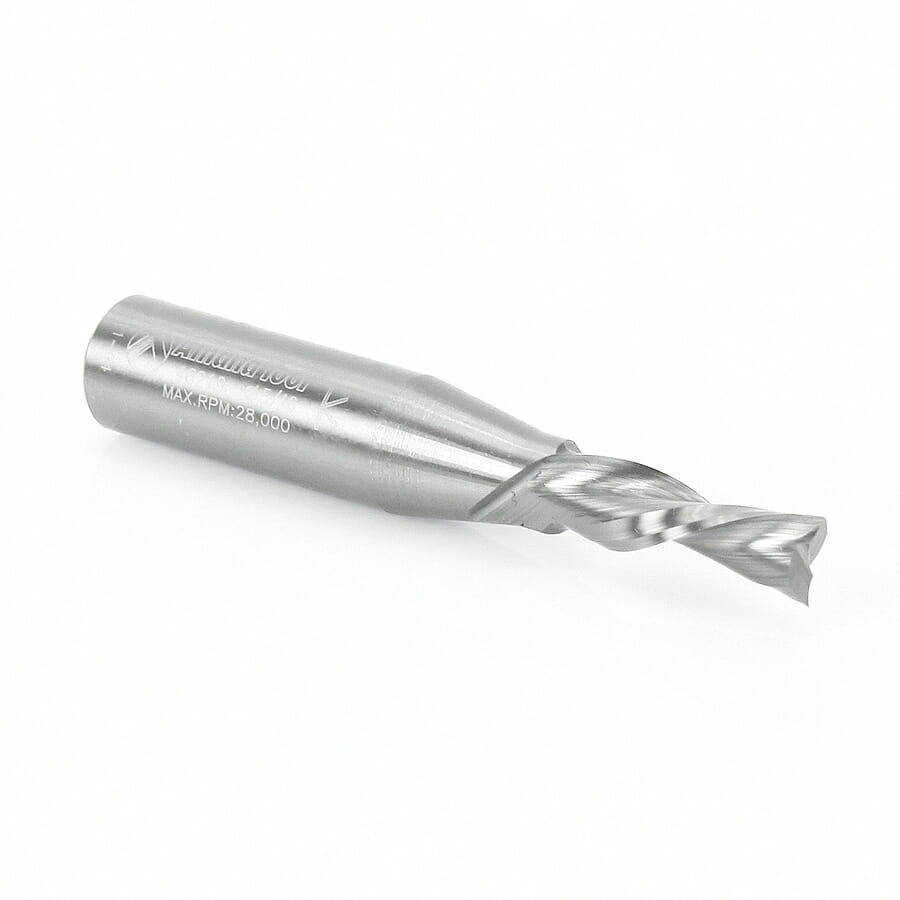

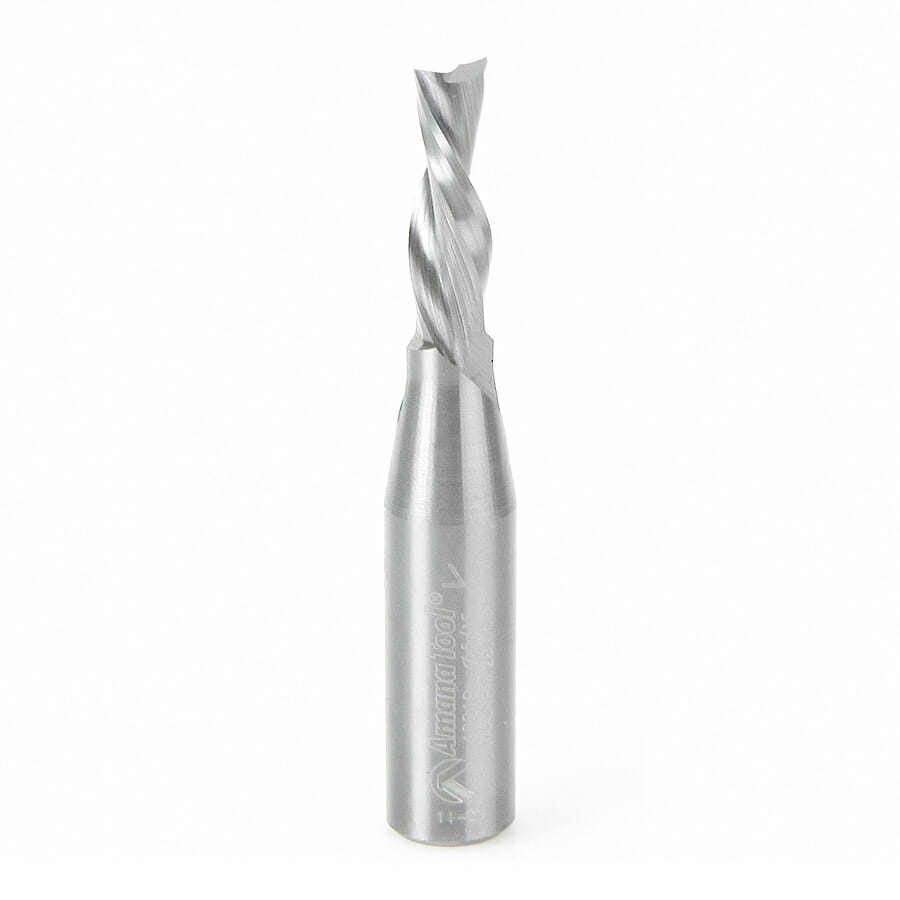

Solid Carbide Spiral Plunge 5/16 Dia x 1 Inch x 1/2 Shank Down-Cut

$119.60

Usually ships on the 2nd business day from order date.
Direction Down-Cut
D Diameter 5/16
B Cutting Height 1
D Shank 1/2
Overall Length L 3
Flutes 2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut. The ‘Down-Cut’ cuts from the surface down leaving a smooth edge at the surface. Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers. Vectric compatible tool file for 46219 available for download,  . click here

Specifications

Direction Down-Cut
(D) Diameter 5/16
(B) Cutting Height 1
(d) Shank 1/2
Overall Length (L) 3
Flutes 2
