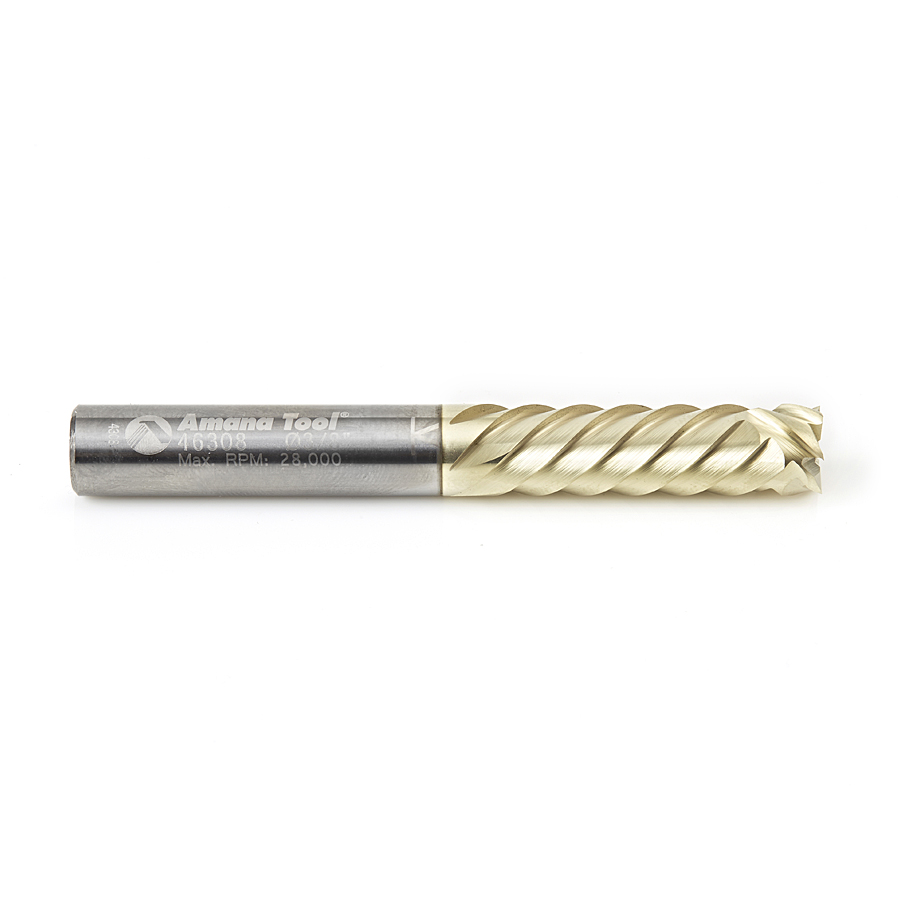

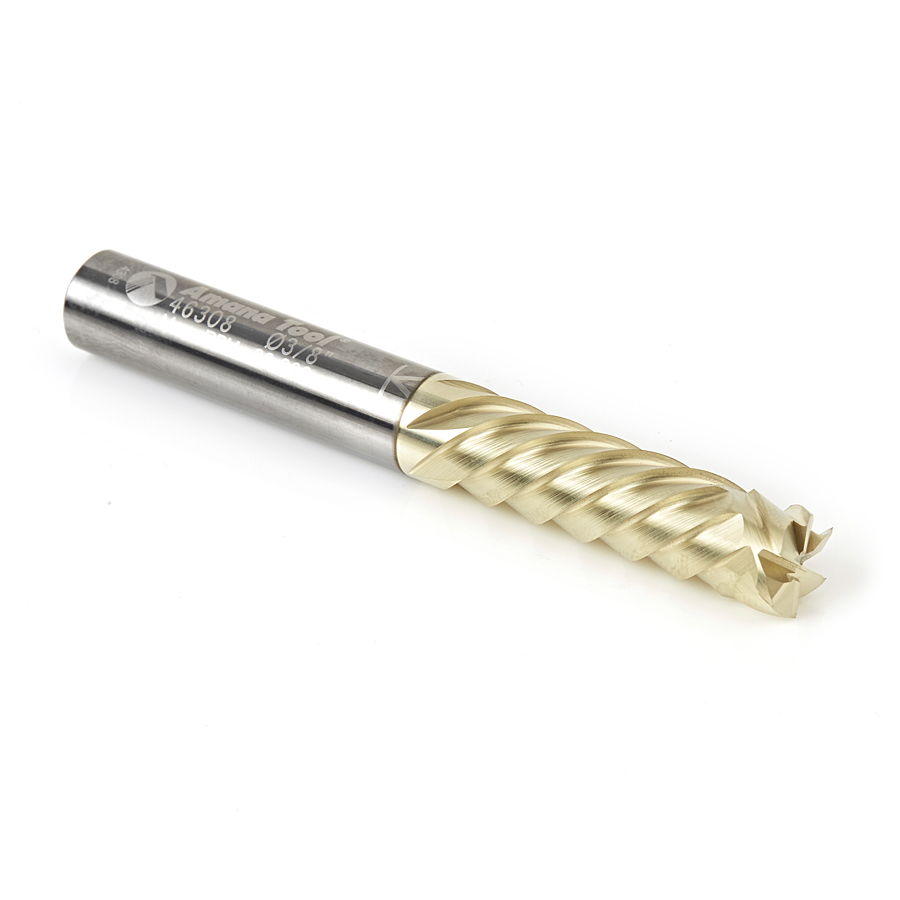

46308 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 3/8 Dia x 1-1/4 x 3/8 Shank x 6-Flute

$157.34

Usually ships on the 2nd business day from order date.
Diameter-d 3/8
B-cutting-height 1-1/4
Shank-d 3/8
Overall-length-l 3
B1 1/4
Max-rpm 28,000
Flutes 6
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

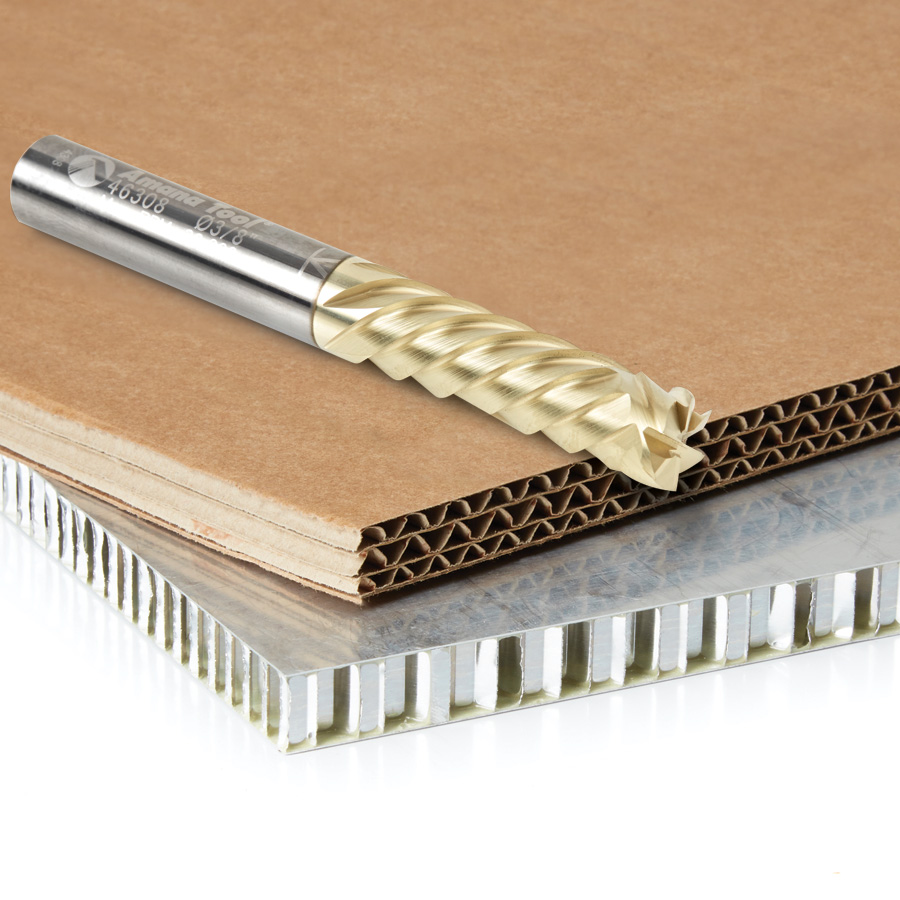

Solid carbide honeycomb cutting router bits provide a burr-free top and bottom finish, providing that the workpiece is thicker than 0.250”. Designed for cutting Bioboard™, Falconboard®, Aluminum Honeycomb (AHP) carbon fiber and honeycomb cardboard.

  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Aluminum Honeycomb Panel (AHP)
  • BioBoard™
  • Carbon
  • Carbon Fiber
  • Carbon Graphite
  • Composites
  • Falconboard®
  • Fiberglass Filled Plastics
  • Honeycomb Cardboard
  • Lexan™
  • Unfilled Plastics

Benefits of ZrN Coating

  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • High resistance to wear
  • Extended tool life
  • Less friction & heat buildup
  • High resistance to wear

Please note: For optimal results and to extend tool life please use mist lubricant system or air cooling. Please inspect cut and adjust accordingly.

Specifications

Diameter (D) 3/8
(B) Cutting Height 1-1/4
Shank (d) 3/8
Overall Length (L) 3
B1 1/4
Max RPM 28,000
Flutes 6
