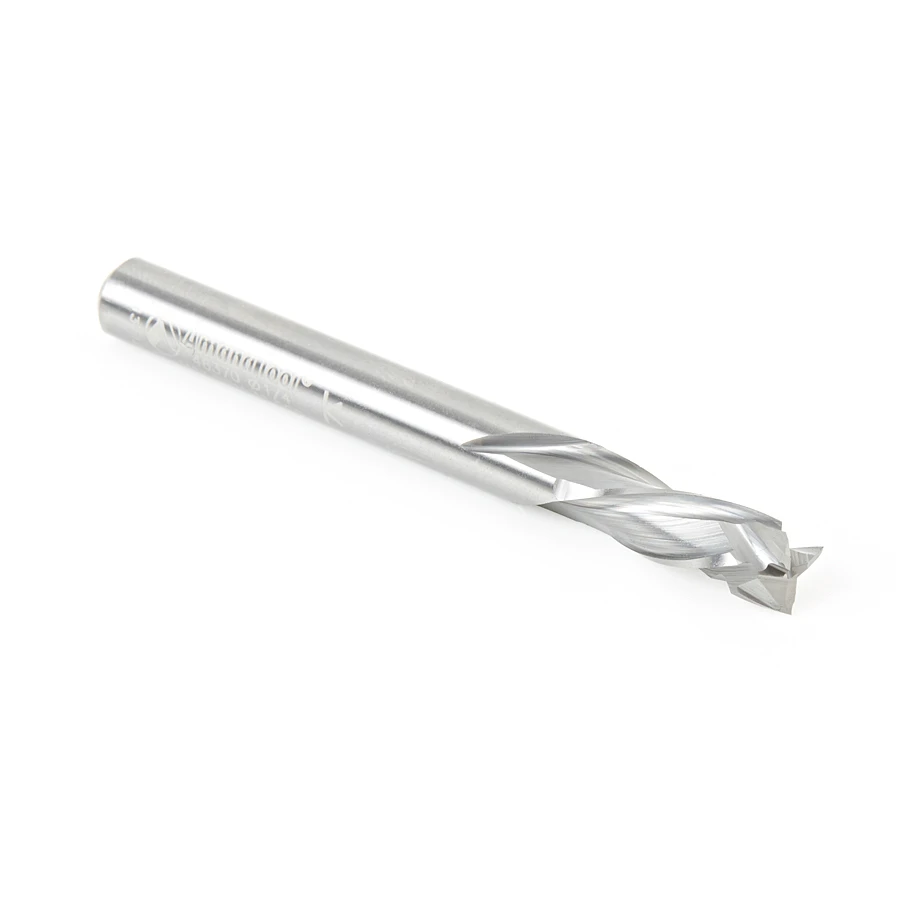

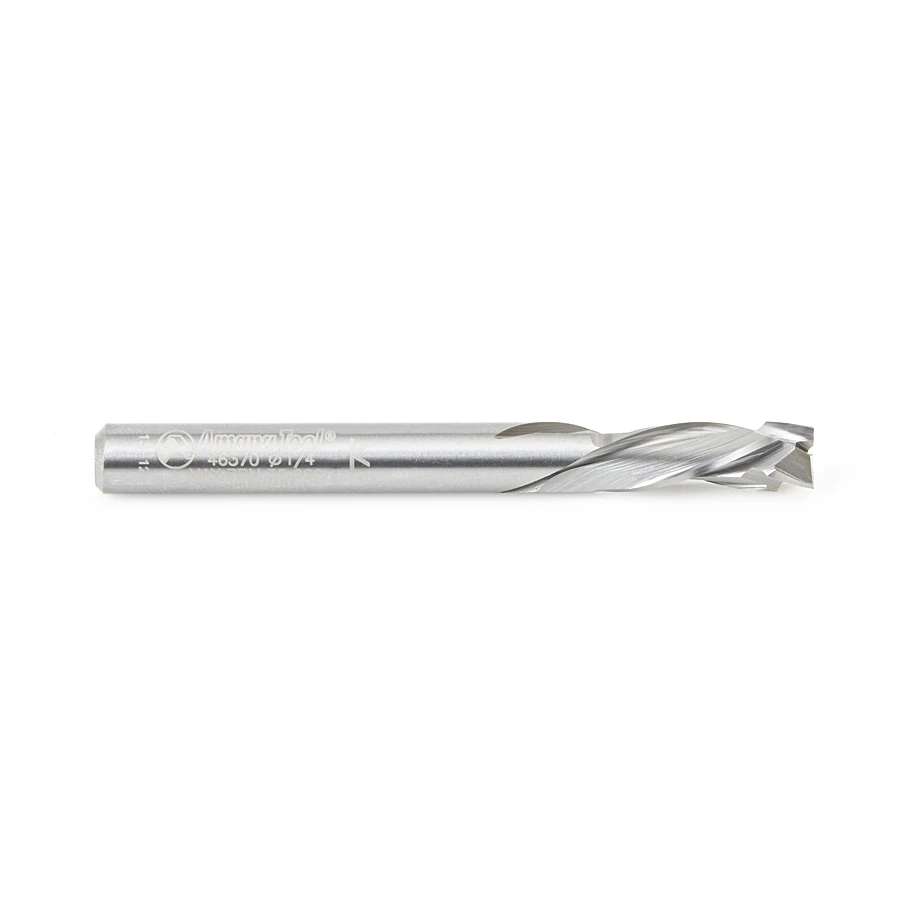

46370 Solid Carbide Compression Spiral 1/4 Dia x 5/8 x 1/4 Shank x 2-1/2 Inch Long CNC Nesting Router Bit
$130.62
Usually ships on the 2nd business day from order date.

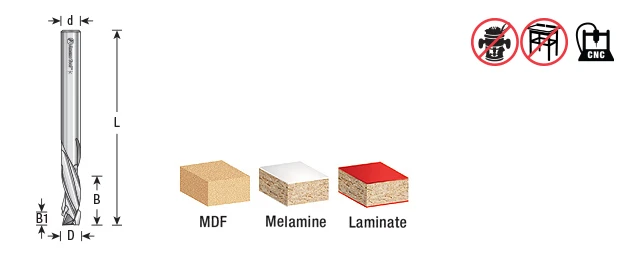

| (D) Diameter | 1/4 |
|---|---|
| (B) Cutting Height | 5/8 |
| B1 | 9/32 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/2 |
| Max Rpm | 28,000 |
| Flutes | 3 |
Description
New generation of spiral tools for nesting operation on a CNC machine. Nesting refers to the process of laying out cutting patterns to minimize the raw material waste.
Excellent for cutting:
- MDF
- Melamine
- Laminate
- Laminated Plywood
- Composites
- Oriented Strand Board (OSB)*
- Particle Board
- Veneered Plywood
*Oriented Strand Board is an engineered wood particle board.
Features
- High clearance geometric shape for maximum feed rate
- Free chip flow
- Superior cut quality
Specifications
| (D) Diameter | 1/4 |
| (B) Cutting Height | 5/8 |
| B1 | 9/32 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/2 |
| Max RPM | 28,000 |
| Flutes | 3 |
