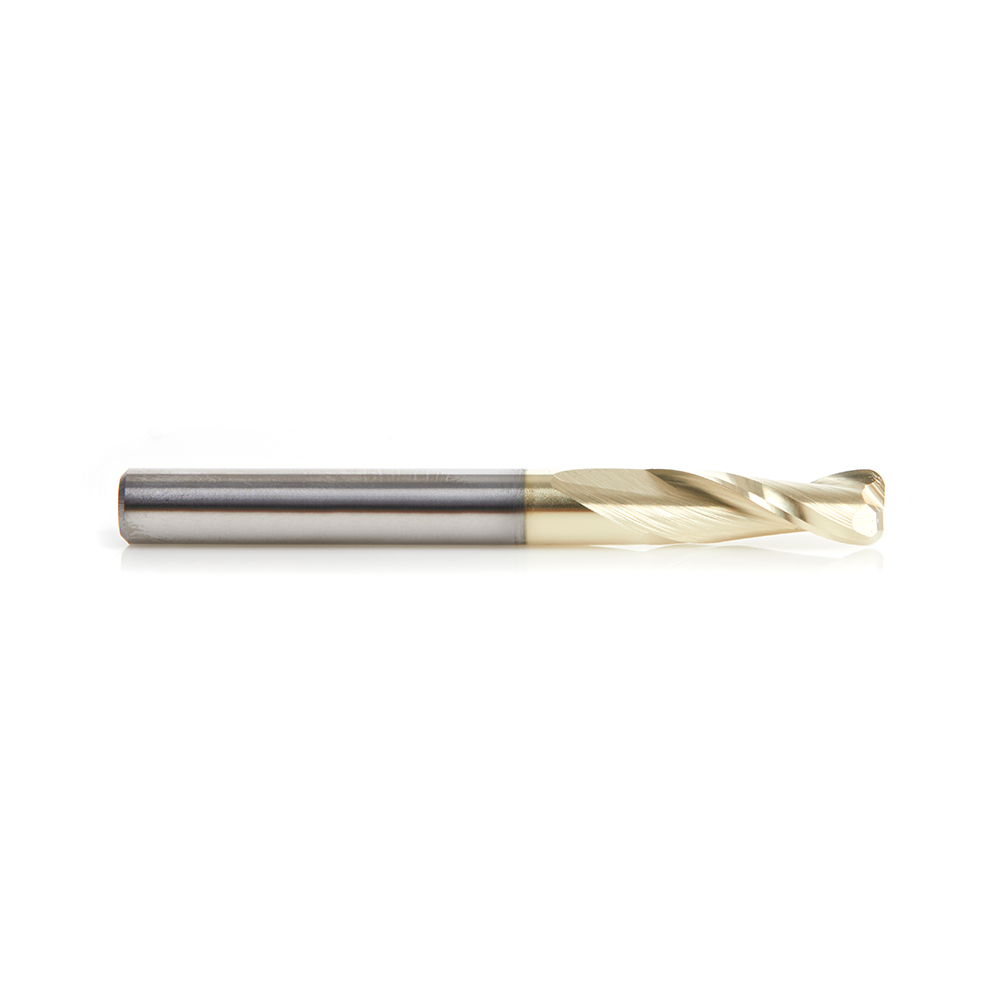

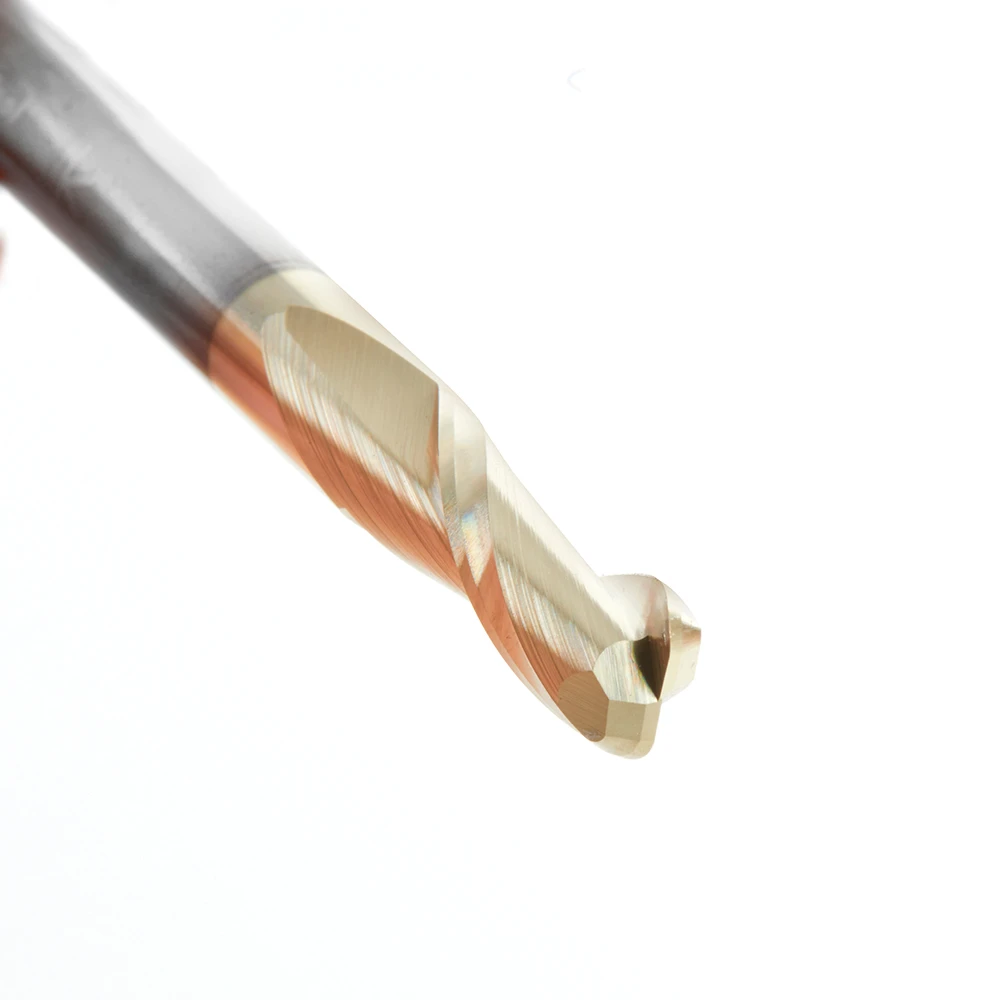

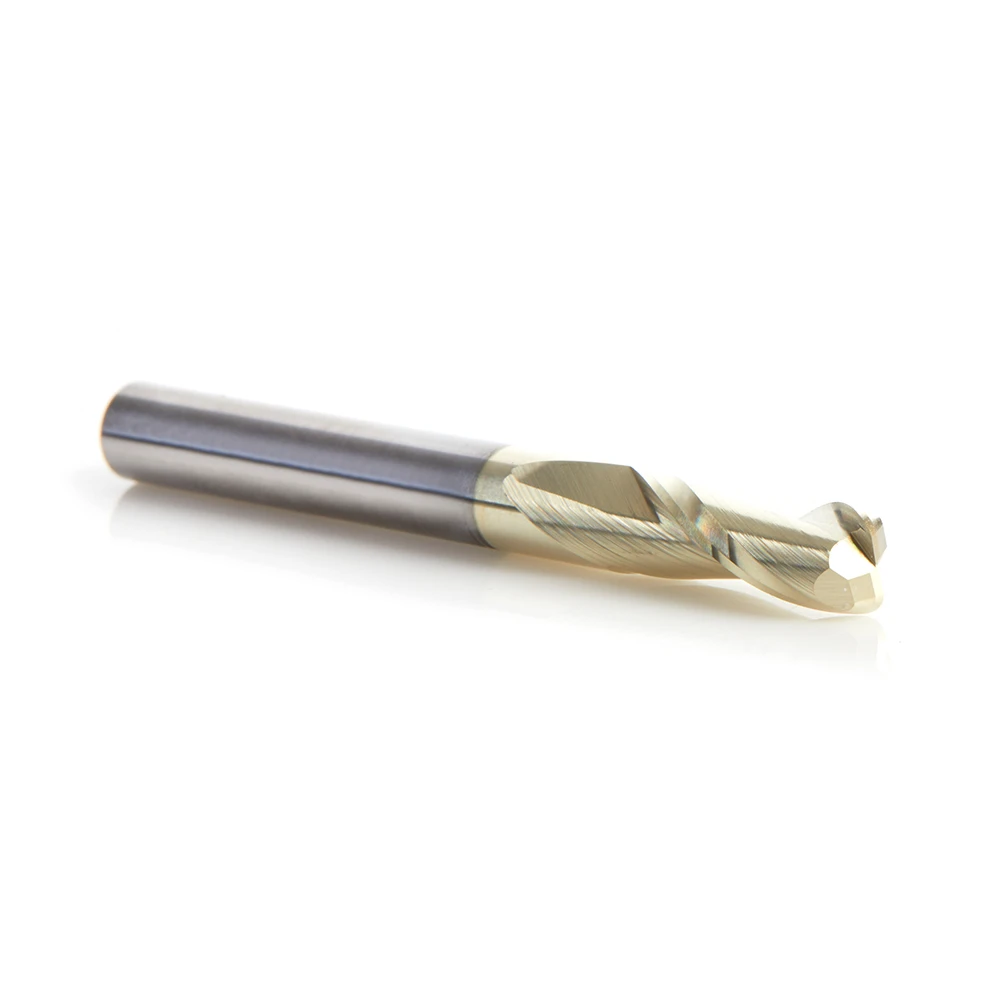

46460-Z Solid Carbide Spiral Plunge with Corner Radius 1/16 Radius x 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut ZrN Coated Router Bit

$51.39

Usually ships on the 2nd business day from order date.

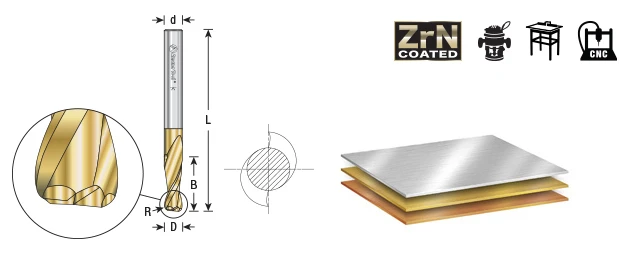

Direction Up-Cut
Diameter (D) 1/4
Radius (R) 1/16
(B) Cutting Height 3/4
Shank (d) 1/4
Overall Length (L) 2-1/2
Flutes 2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

For carving, lettering, decorative doors and sign manufacturing.
Leaves an excellent finish and expels chips quickly.

Excellent for Cutting:

  • Aluminum
  • MDF
  • Soft/Hard Plastic
  • Soft/Hard Wood

Benefits of Zirconium Nitride (ZrN) Coating

  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • Have the tendency to run/spin much faster than an uncoated tool
  • Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter (where the machine or work piece vibrates) under high chip loads (when used with low TIR spindles)
  • High flute volume supports high feed rates and chip loads
  • High aspect ratio for single pass deep-reach cutting
  • Flute geometry optimized for cutting sign foam, sign board, hardwoods, thermoplastics and phenolic composites

Specifications

Direction Up-Cut
Diameter (D) 1/4
Radius (R) 1/16
(B) Cutting Height 3/4
Shank (d) 1/4
Overall Length (L) 2-1/2
Flutes 2
