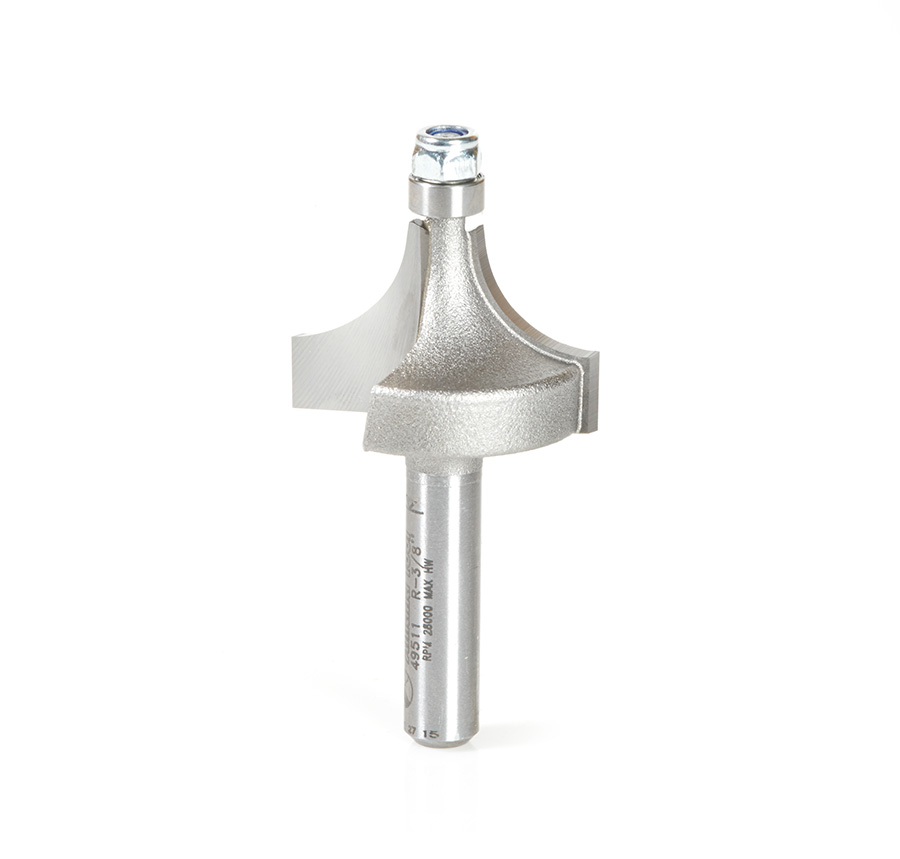

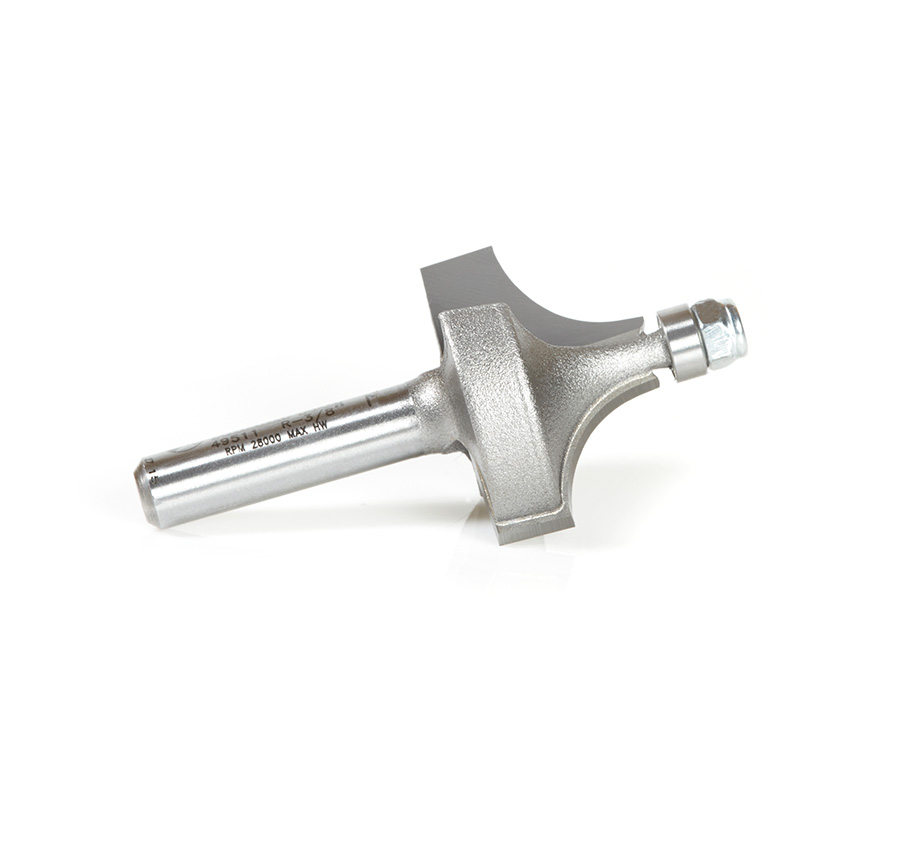

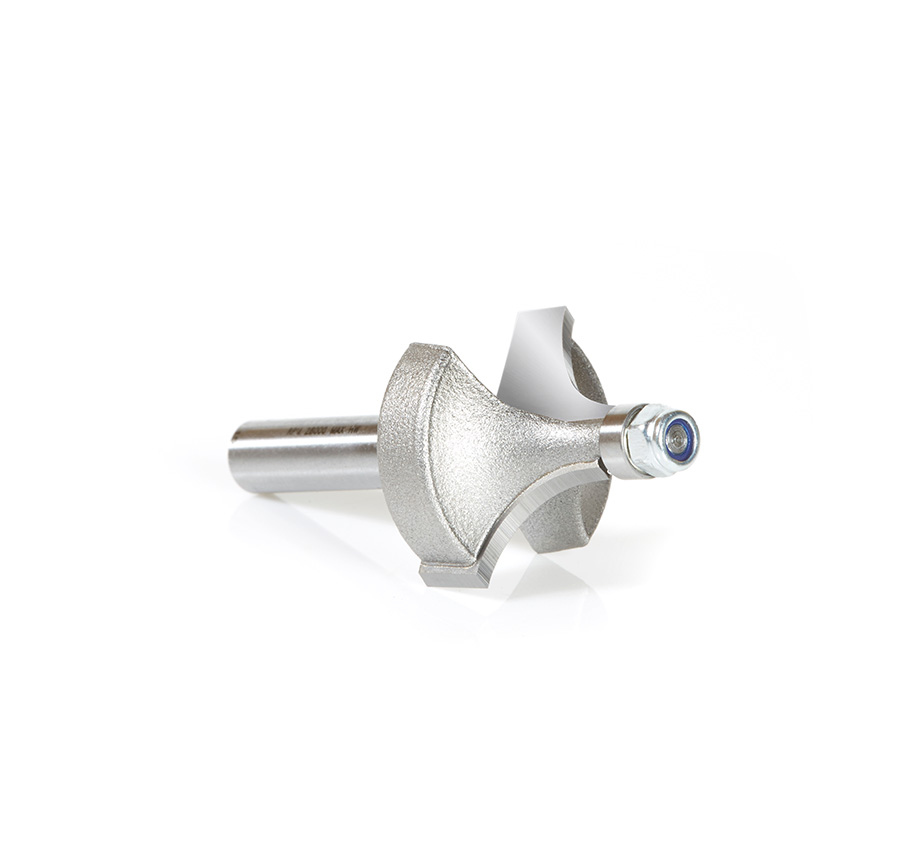

49511 Carbide Tipped Corner Round 3/8 Radius x 1 Dia x 5/8 x 1/4 Inch Shank with 1/4 Dia Lower Ball Bearing
$73.75
Usually ships on the 2nd business day from order date.

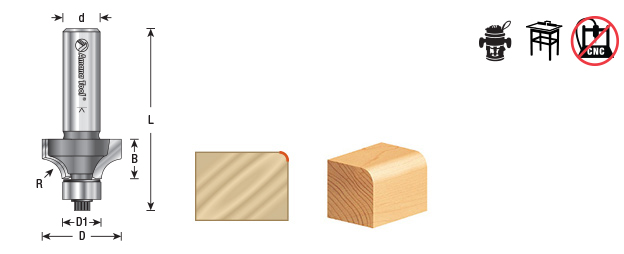

| Diameter (D) | 1 |
|---|---|
| D1 | 1/4 |
| Radius (R) | 3/8 |
| (B) Cutting Height | 5/8 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2 |
| Replacement Bearing | 47723 |
| Flutes | 2 |
Description
The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.
Specifications
| Diameter (D) | 1 |
| D1 | 1/4 |
| Radius (R) | 3/8 |
| Cutting Height (B) | 5/8 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2 |
| Replacement Bearing | 47723 |
| Flutes | 2 |
