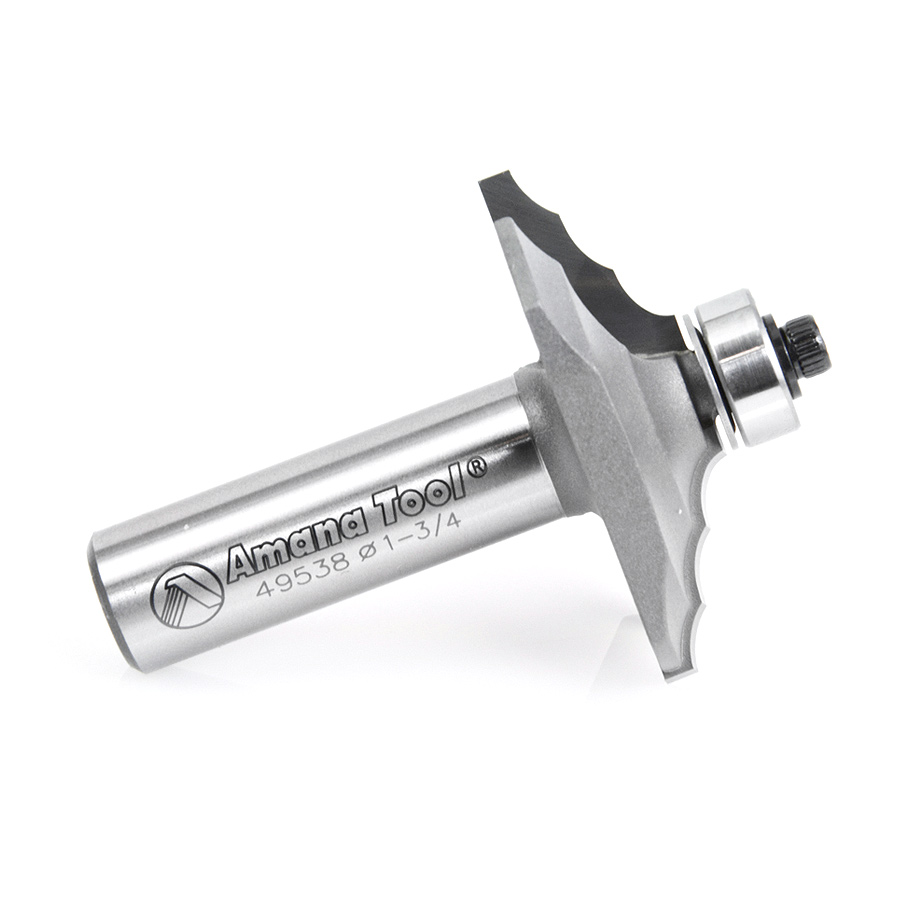

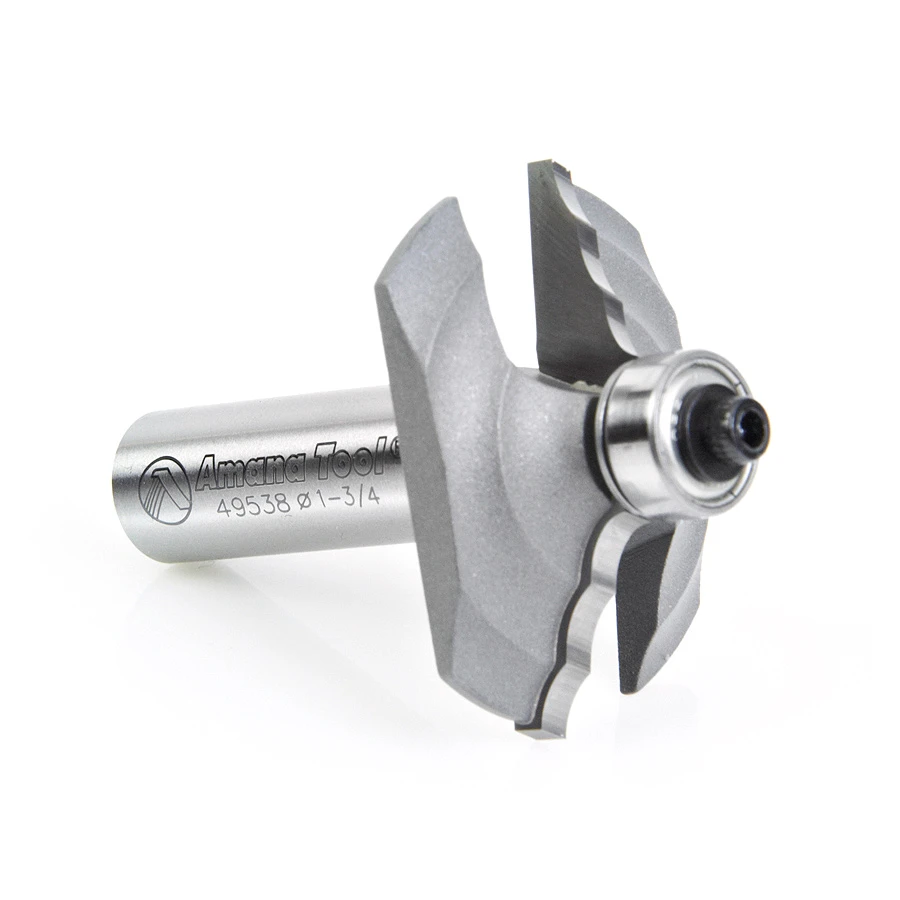

49538 Carbide Tipped Cabinet Door Edge – Front Face Edge – 17/64 x 1/4 Radius x 1-3/4 Dia x 7/16 x 1/2 Inch Shank
$75.39
Usually ships on the 2nd business day from order date.

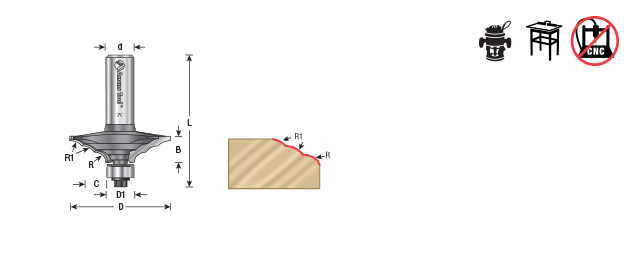

| Diameter (D) | 1-3/4 |
|---|---|
| D1 | 1/2 |
| Radius (R) | 1/4 |
| (B) Cutting Height | 7/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-1/2 |
| Replacement Bearing | 47706 |
| R1 | 17/64 |
| Flutes | 2 |
| C | 5/8 |
Description
Cuts a decorative edge on cabinet fronts. Shallow design will also work well with European hinges.
Specifications
| Diameter (D) | 1-3/4 |
| D1 | 1/2 |
| Radius (R) | 1/4 |
| Cutting Height (B) | 7/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-1/2 |
| Replacement Bearing | 47706 |
| R1 | 17/64 |
| Flutes | 2 |
| C | 5/8 |
