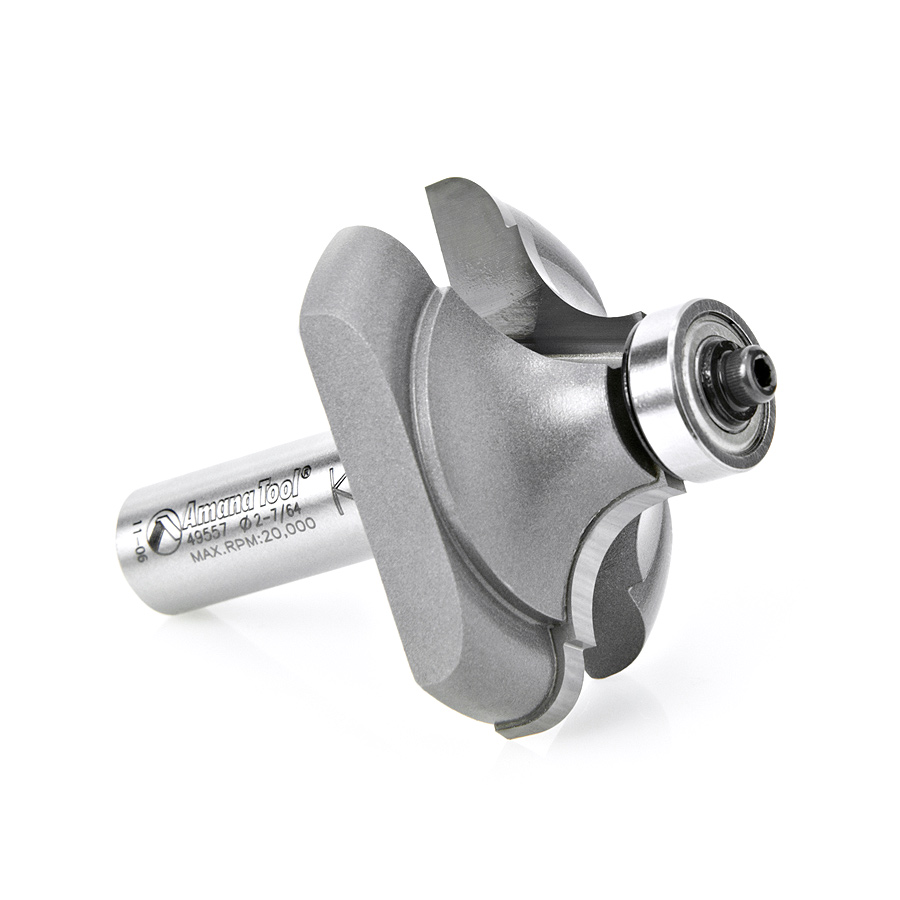

49557 Carbide Tipped Table Edge Cove & Thumbnail 1/4 x 7/16 Radius x 2-7/64 Dia x 27/32 x 1/2 Inch Shank

$84.00

Diameter (D) 2-7/64
Radius (R) 1/4
(B) Cutting Height 1-27/32
Shank (d) 1/2
Overall Length (L) 2-3/4
Replacement Bearing 47718
R1 7/16
Flutes 2

Description

Profiles are designed for 3/4″ thick tops.

This selection of table edge profiles offers a wide variety of designs from which to choose. All will shape away the hard edge, add detail and reduce the visual thickness of the top.

The broad curves of this ogee create a wide, elegant table edge. Notice that the curve continues under the top slightly to make a large tabletop appear thin.

Specifications

Diameter (D) 2-7/64
Radius (R) 1/4
Cutting Height (B) 27/32
Shank (d) 1/2
Overall Length (L) 2-3/4
Replacement Bearing 47718
R1 7/16
Flutes 2
