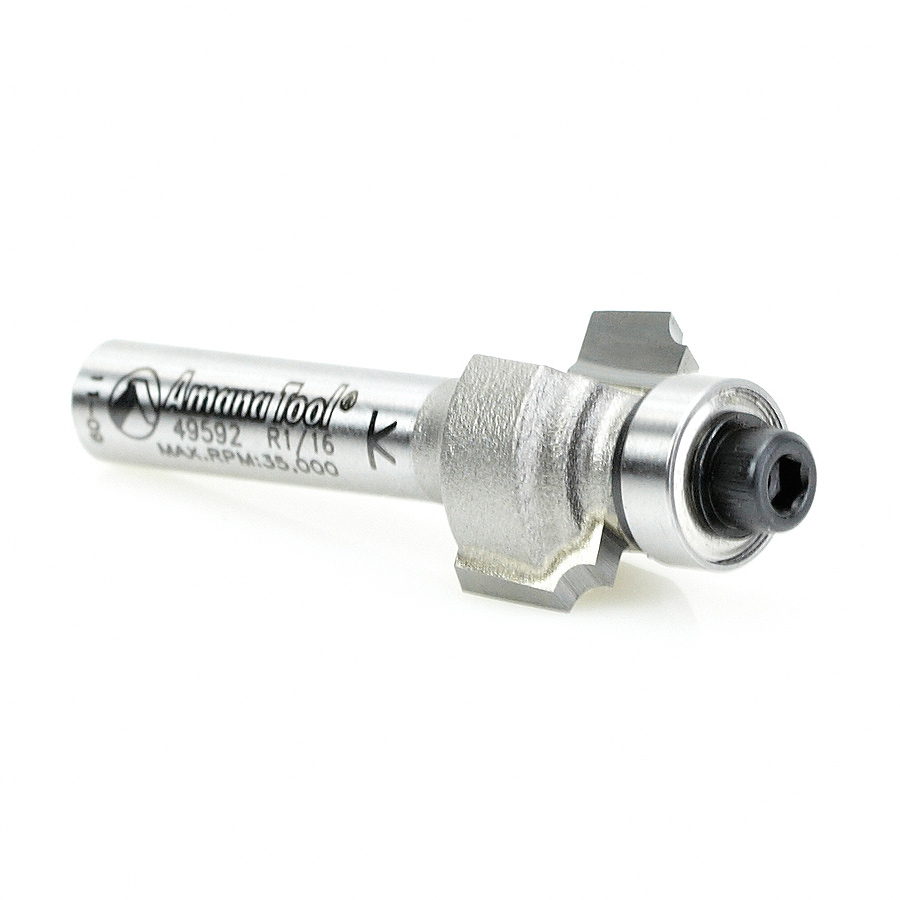

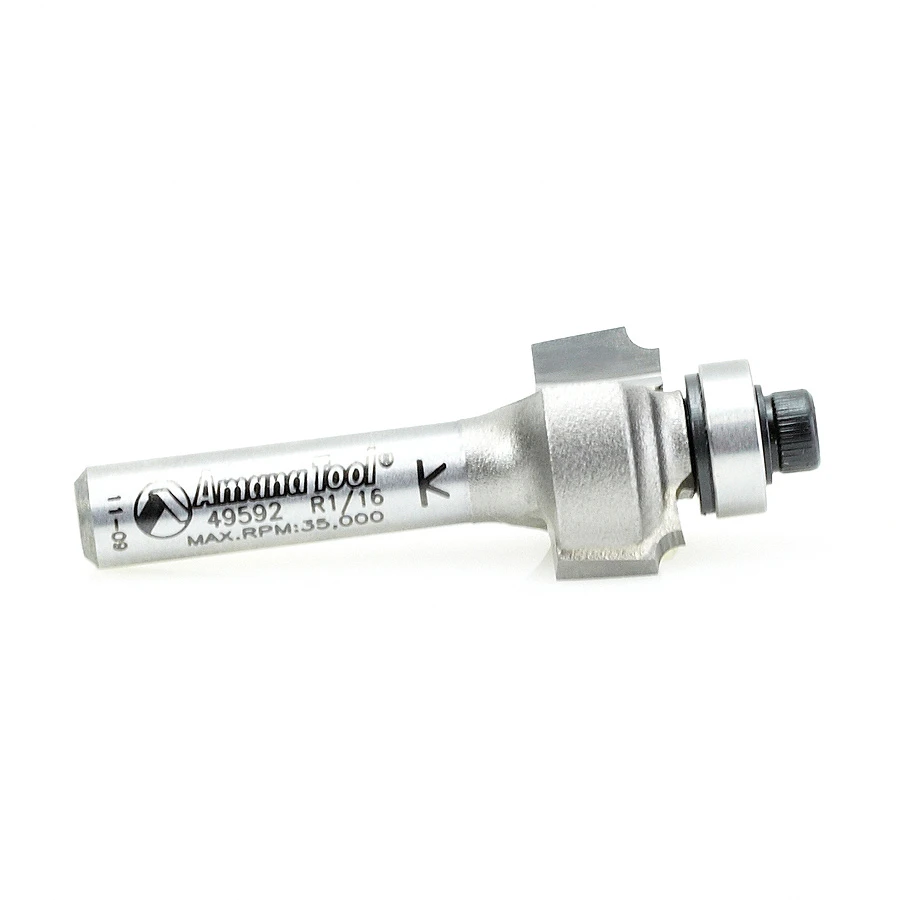

49592 Carbide Tipped Beading 1/16 Radius x 5/8 Dia x 5/16 x 1/4 Inch Shank

$35.13

Usually ships on the 2nd business day from order date.
Diameter (D) 5/8
D1 3/8
Radius (R) 1/16
(B) Cutting Height 5/16
Shank (d) 1/4
Overall Length (L) 1-3/4
Replacement Bearing 47702
Flutes 2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

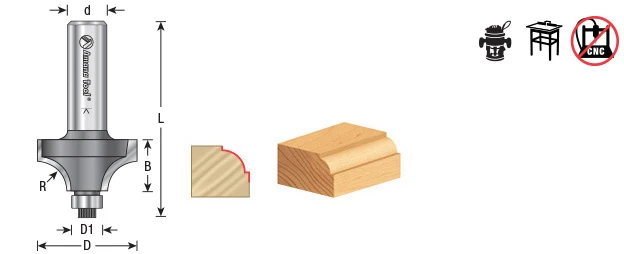

Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).

Specifications

Diameter (D) 5/8
D1 3/8
Radius (R) 1/16
Cutting Height (B) 5/16
Shank (d) 1/4
Overall Length (L) 1-3/4
Replacement Bearing 47702
Flutes 2
