Carbide Tipped Adjustable ACM Scoring Set 8 Inch Dia x 2x20T, 18 Deg, 1 Bore

Usually ships on the 2nd business day from order date.
D Diameter 8
Teeth 2x20
D Bore 1
Tooth Grind ACM
Hook Angle 18°
Kerf B 10.2-11.2mm
Machine Table Saw
W Flat Bottom Range 2.0-3.0mm / 0.078-0.118
A Angle 45°
B1 0.161"
SKU: 508400-1 Categories: ,

Description

Adjustable Scoring Set designed for cutting angled cuts with flat bottoms in aluminum/non-ferrous/plastics composite sandwich materials such as:

Aluminum, Clay, Zinc & Wood Composite Panels Aluminum Composite Materials (ACM) Aluminum Composite Panel (ACP) * ALPOLIC® Copper Composite Material (CCM) Alucobond®

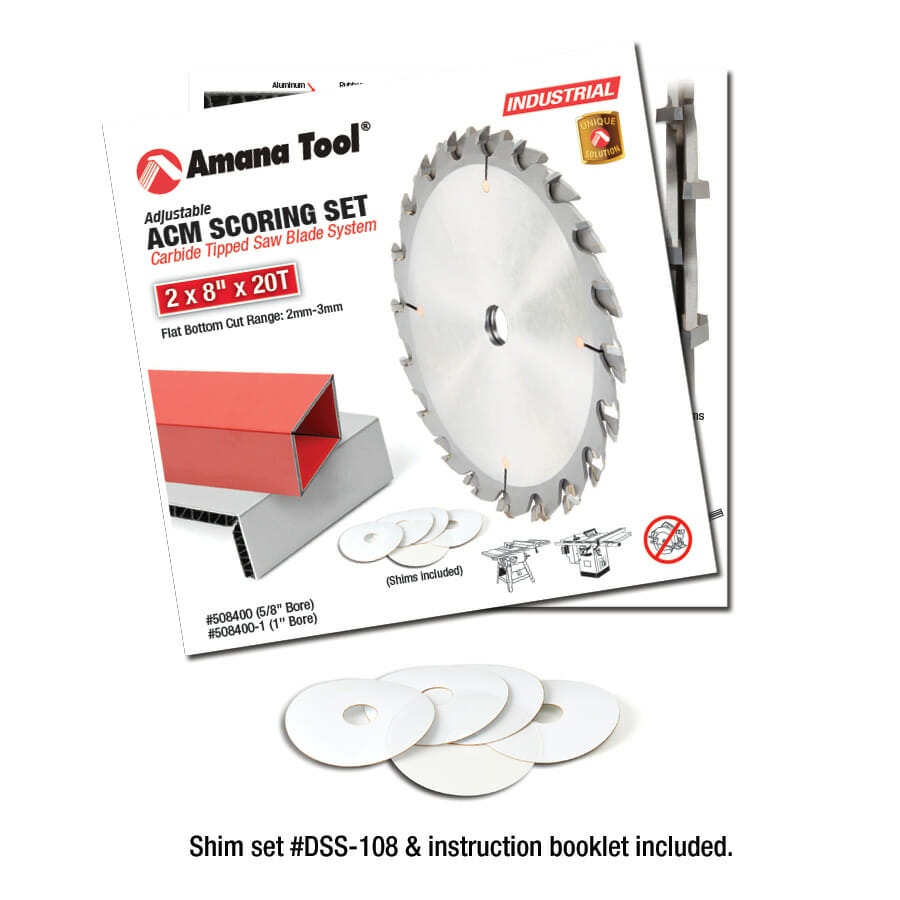

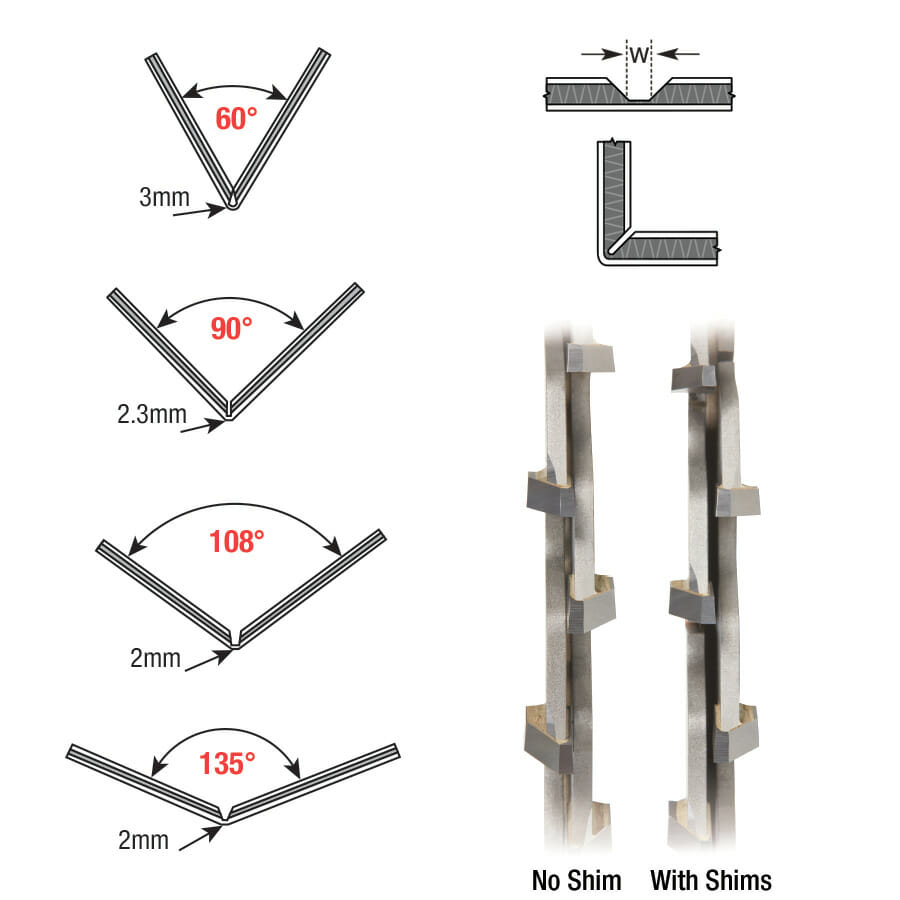

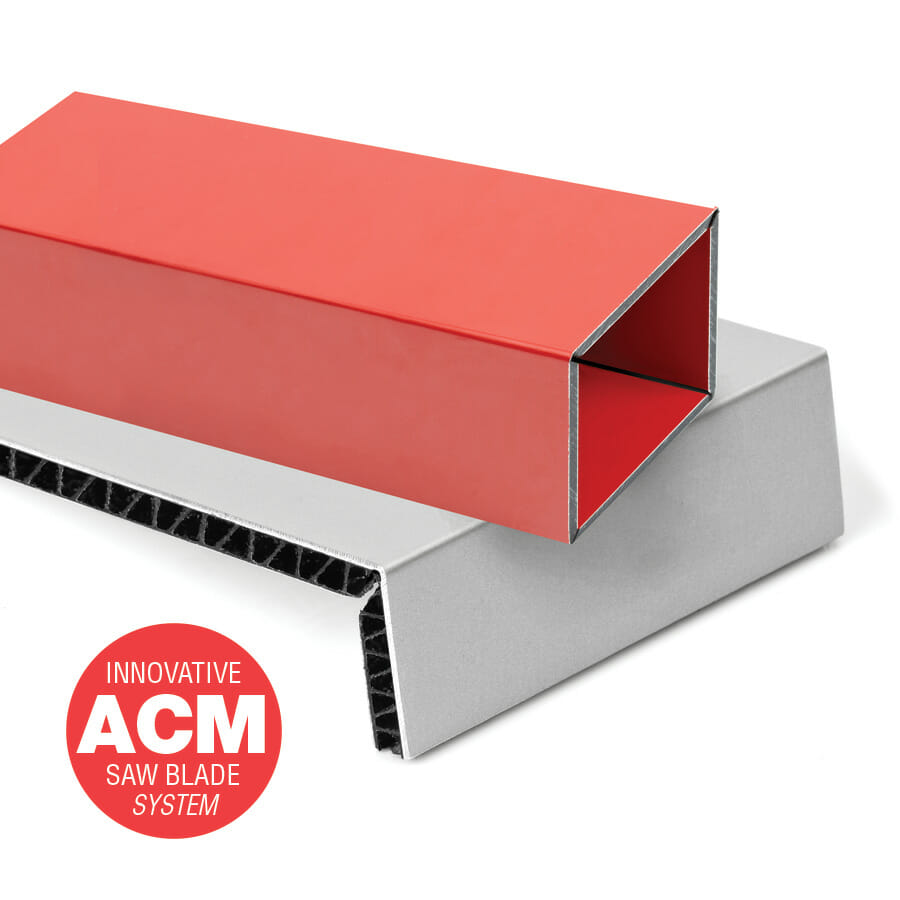

Alupanel® Dibond® Durabond ** e-panel™ Etalbond® Titanium Composite Material (TCM) Trespa® This set contains two carbide tipped saw blades and a shim set. This unique system can be widely used for scoring many cladding materials (wall coverings) such as Alucobond®, Alupanel®, Dibond®, ALPOLIC® CCM, Trespa®, Durabond and more. The materials are used on facades and interior wall surfaces that can be found in office buildings, hospitals, convention centers, airports and hotels, along with exterior signage. ACP is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration. Cutting V-shaped grooves with flat bottoms, whereby the aluminum cover and a part of the core is removed, allows for folding the remaining material by hand. This set requires a custom zero clearance throat plate. * ** Warning: Not to be used with portable saws. Warning:

Specifications

(D) Diameter 8
Teeth 12 x 2
(d) Bore 1
Tooth Grind ACM
Hook Angle 18°
Kerf (B) 10.2-11.2mm
Machine Table Saw

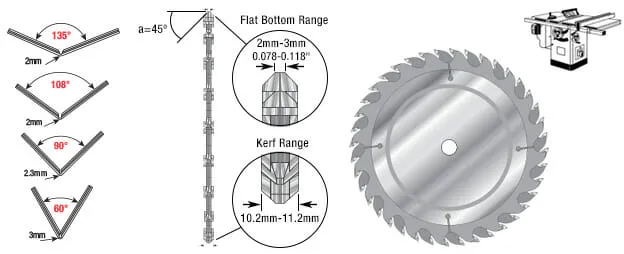

(W) Flat Bottom Range 2.0-3.0mm / 0.078-0.118
(a°) Angle 45°
B1 0.161"
