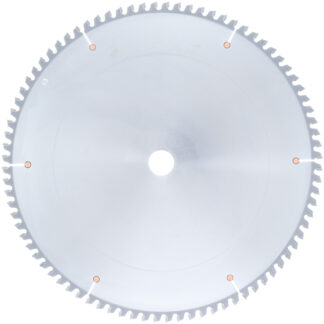

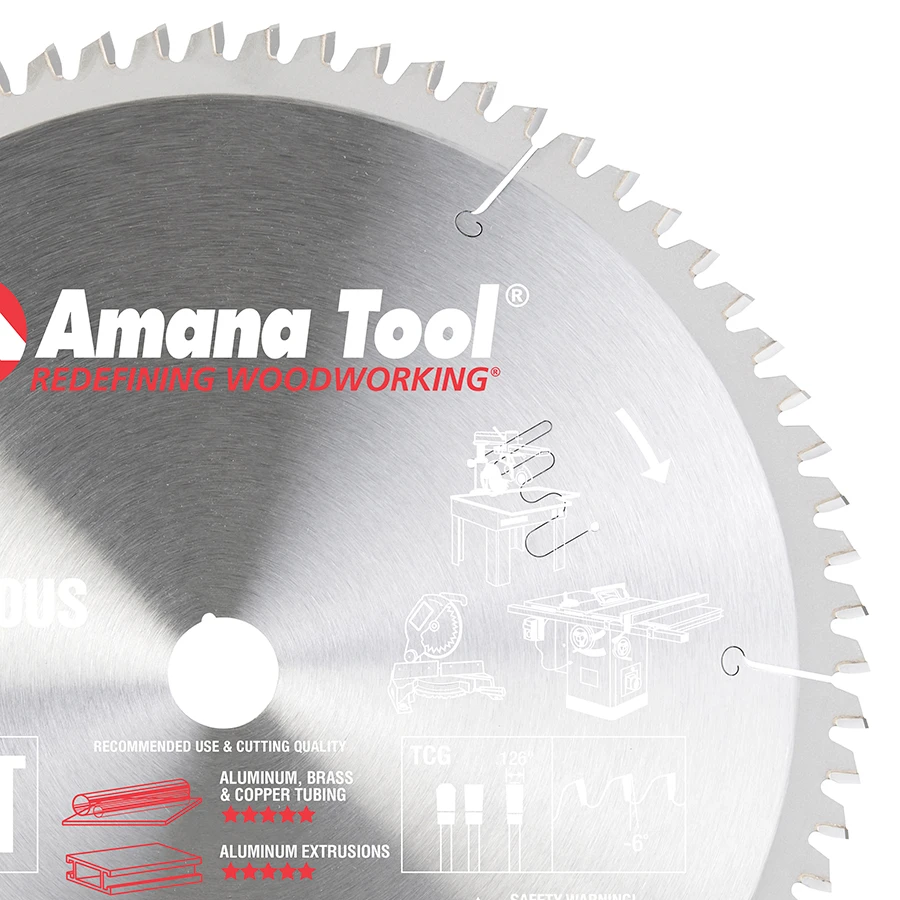

512721 Carbide Tipped Aluminum and Non-Ferrous Metals 12 Inch Dia x 72T TCG, -6 Deg, 1 Inch Bore

$180.00

Diameter (D) 12 (300mm)
Teeth 72
(d) Bore 1
Tooth Grind TCG
Hook Angle -6°
Kerf (B) .126 (3.2mm)
Plate (c) .102 (2.6mm)

Description

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thick-walled aluminum and non-ferrous metal bars such as copper, brass, bronze and lead. It also is good for cutting extrusions and profiles. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning: Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.

Specifications

(D) Diameter 12 (300mm)
Teeth 72
(d) Bore 1
Tooth Grind TCG
Hook Angle -6°
Kerf (B) .126 (3.2mm)
Plate (C) .102 (2.6mm)
