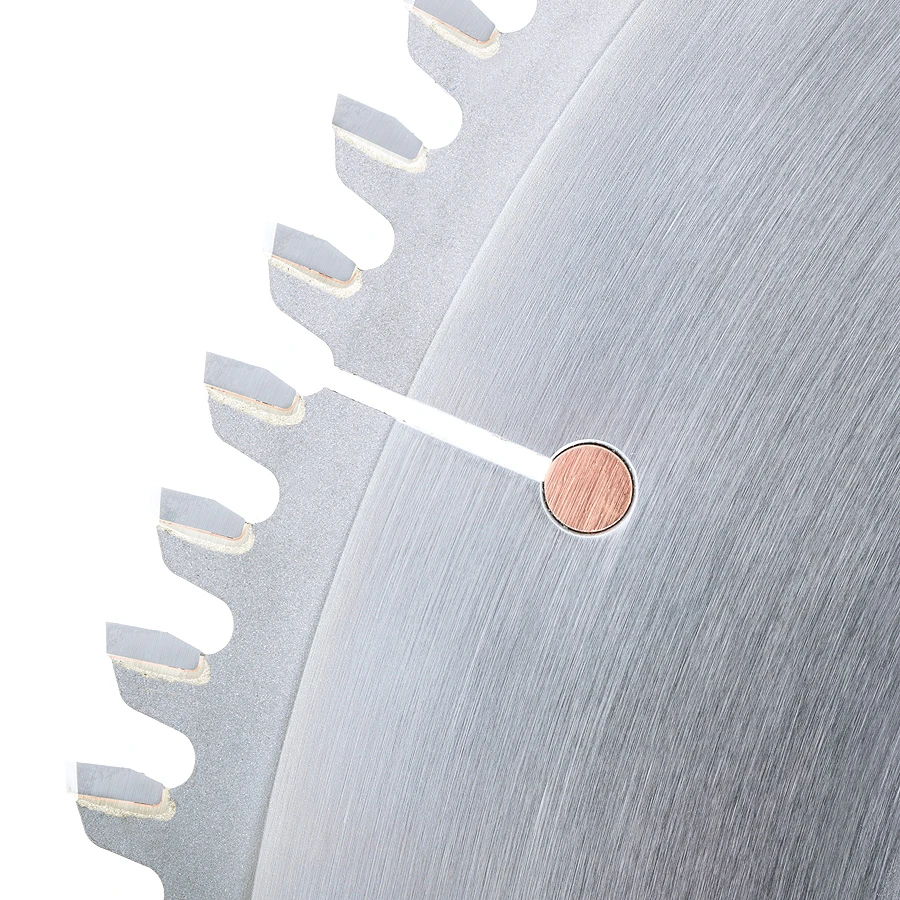

514108-30 Carbide Tipped Aluminum and Non-Ferrous Metals 14 Inch Dia x 108T TCG, -6 Deg, 30mm Bore

$215.31

Usually ships on the 2nd business day from order date.
Diameter (D) 14 (350mm)
Teeth 108
(d) Bore 30mm
Tooth Grind TCG
Kerf (B) .126 (3.2mm)
Pinholes 2/7/42, 2/9/46 & 2/10/60
Plate (c) .102 (2.6mm)
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685305140 SKU: 514108-30 Categories: , ,

Description

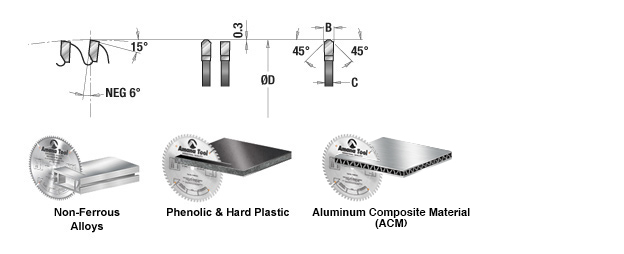

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thin-walled aluminum and non-ferrous extrusions and frames. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning: Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.

Specifications

(D) Diameter 14 (350mm)
Teeth 108
(d) Bore 30mm
Tooth Grind TCG
Kerf (B) .126 (3.2mm)
Pinholes 2/7/42, 2/9/46 & 2/10/60
Plate (C) .102 (2.6mm)
