515101 Carbide Tipped Aluminum and Non-Ferrous Metals 15 Inch Dia x 100T TCG, -6 Deg, 1 Inch Bore

$282.30

Usually ships on the 2nd business day from order date.
Diameter (D) 15 (375mm)
Teeth 100
(d) Bore 1
Tooth Grind TCG
Hook Angle -6°
Kerf (B) .120 (3.1mm)
Machine Hitachi
Plate (c) .098 (2.5mm)
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

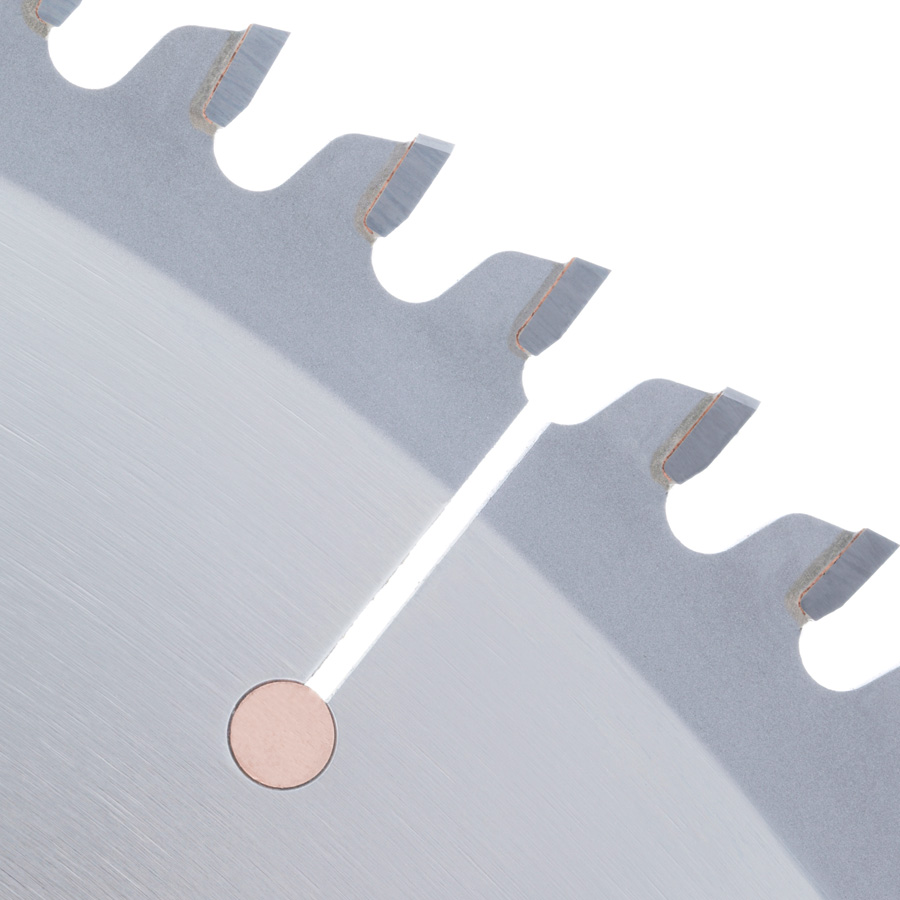

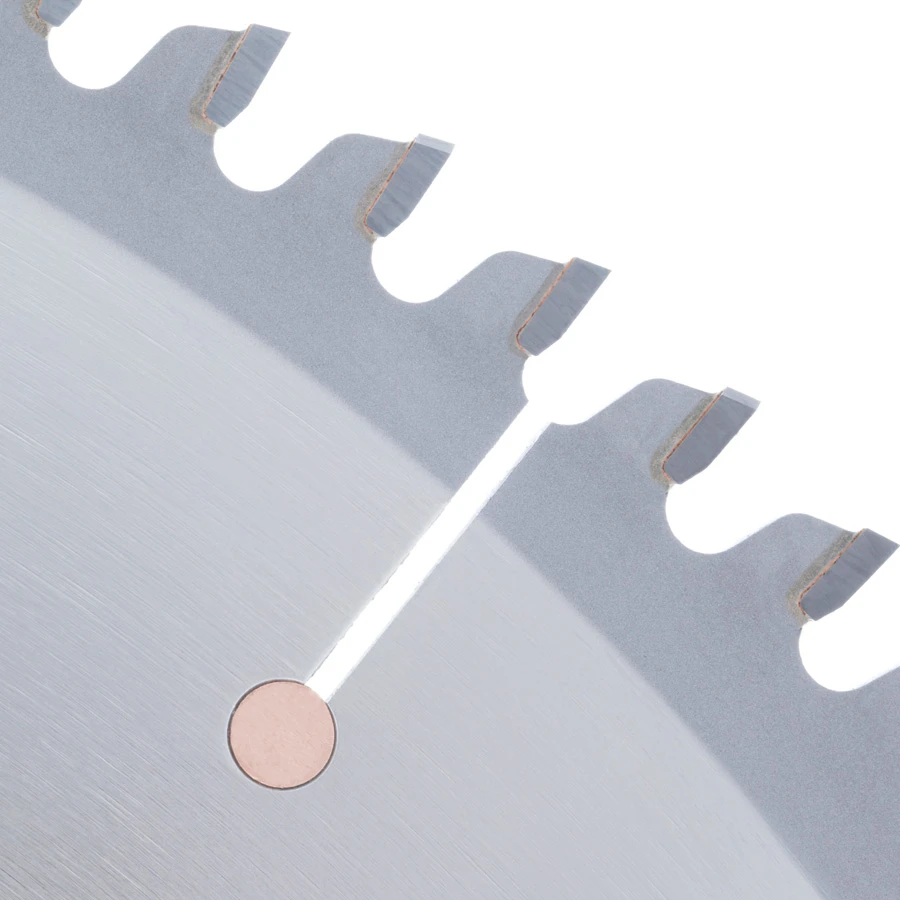

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thin-walled aluminum and non-ferrous extrusions and frames. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning: Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.

Specifications

(D) Diameter 15 (375mm)
Teeth 100
(d) Bore 1
Tooth Grind TCG
Hook Angle -6°
Kerf (B) .120 (3.1mm)
Machine Hitachi
Plate (C) .098 (2.5mm)
