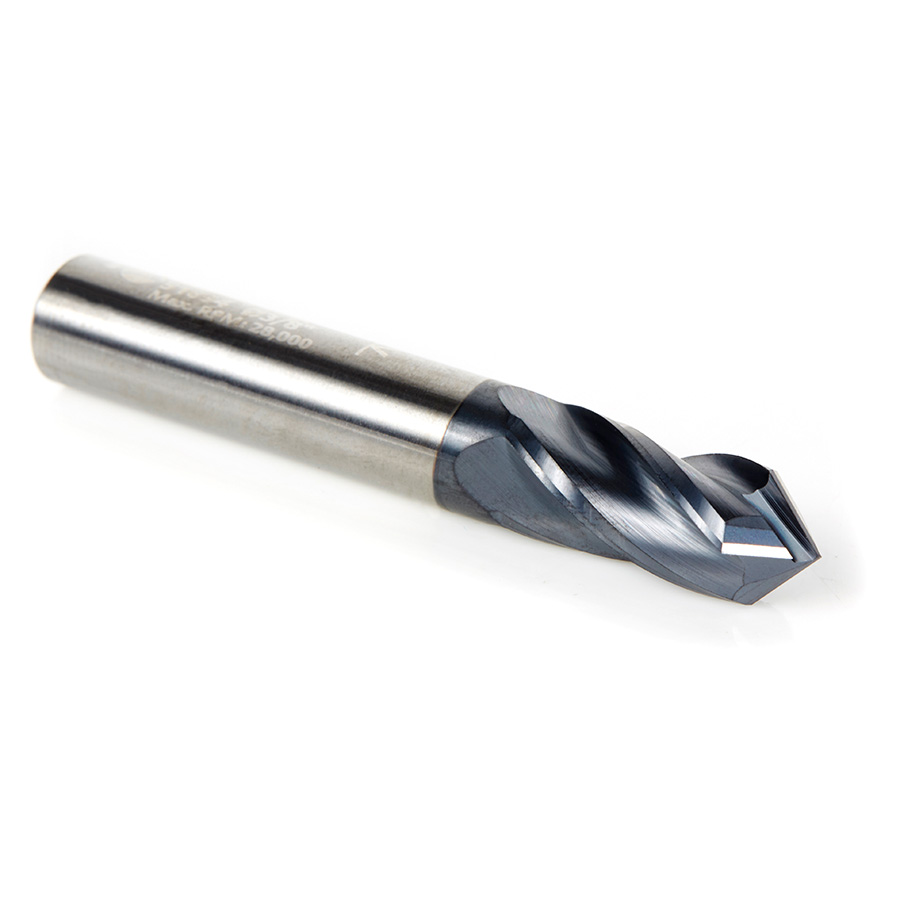

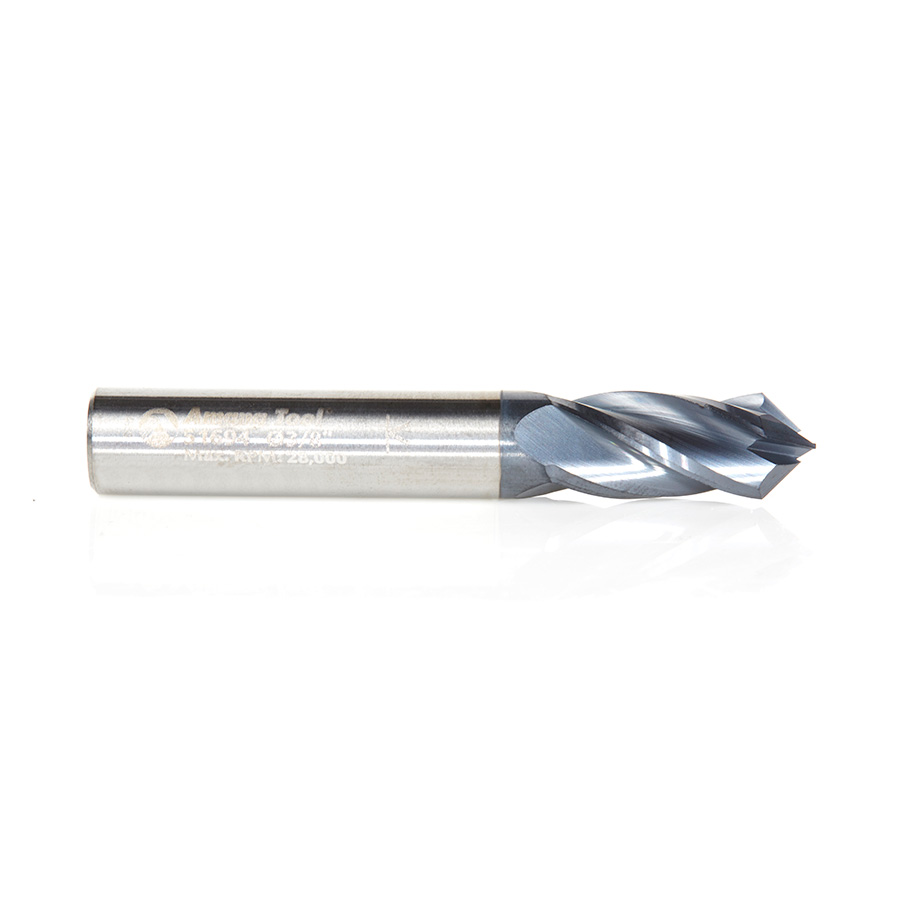

51694 High Performance CNC Solid Carbide 90 Degree ‘V’ Spiral Drills with AlTiN Coating 4-Flute x 3/8 Dia x 7/8 x 3/8 Shank x 2-1/2 Inch Long Up-Cut Router Bit/End Mill

$65.16

Usually ships on the 2nd business day from order date.
Diameter (D) 3/8
(B) Cutting Height 3/16
B1 7/8
Shank (d) 3/8
Overall Length (L) 2-1/2
Max Rpm 28,000
Flutes 4
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

A true multi-function tool, combination drill/mills allow plunging, slotting and/or top chamfering all in one tool saving you the cost of extra tools plus indexing time.
Premium Aluminum Titanium Nitride (AlTiN) coating provides quantum increases in productivity, either in terms of speed or longevity, with or without coolant.

Applications:

  • Drilling
  • Grooving
  • Milling
  • Chamfering
  • Shallow Spotting

Excellent for cutting:

  • Stainless Steel
  • Steel
  • Cast Iron
  • Titanium
  • Soft Plastics
  • Composites
  • Cermet*
  • Metal Composite Material (MCM)

Cermets are composites in which ceramic materials and metals join together.

AlTiN coating has many benefits:

  • Extra wear resistance
  • Allows for faster feed and speed rates
  • Cutting edge protected from wear
  • Better chip evacuation
  • Less heat build up
  • Superior cutting quality and extended tool life

Note: For optimal results and extended tool life use mist lubricant system or air cooling.

Warning: These router bits/end mills are not designed for drilling steel, stainless steel, titanium and cermets. Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage

Specifications

(D) Diameter 3/8
(B) Cutting Height 3/16
B1 7/8
(d) Shank 3/8
Overall Length (L) 2-1/2
Max RPM 28,000
Flutes 4
