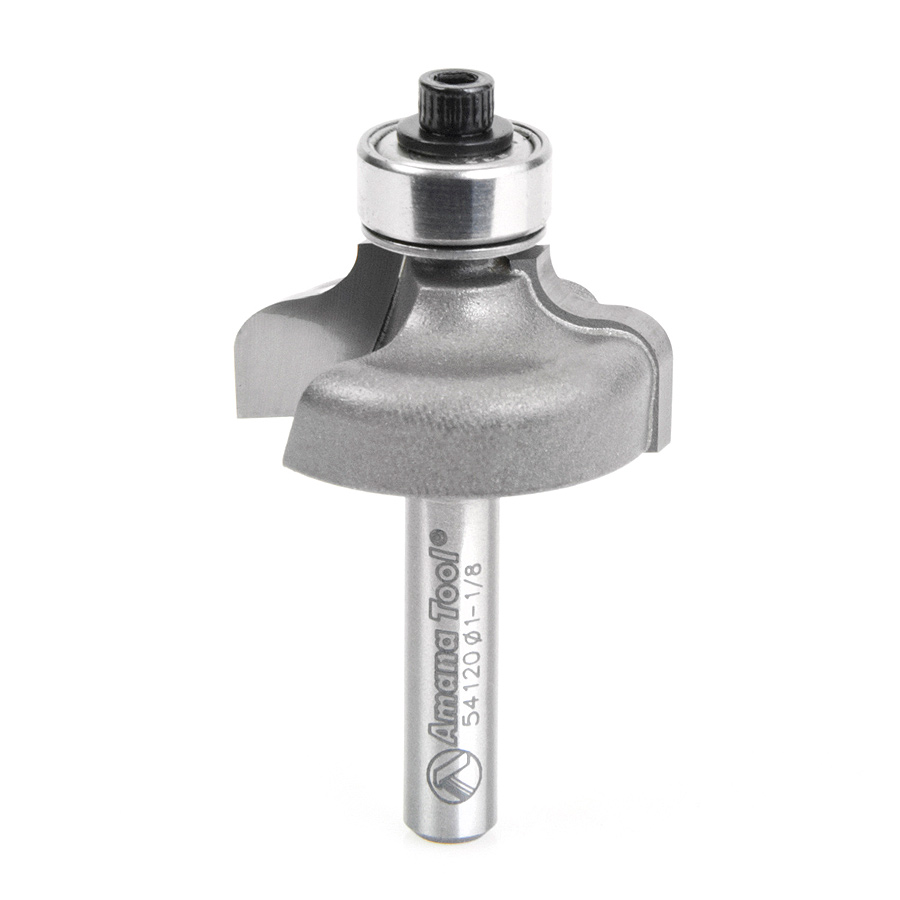

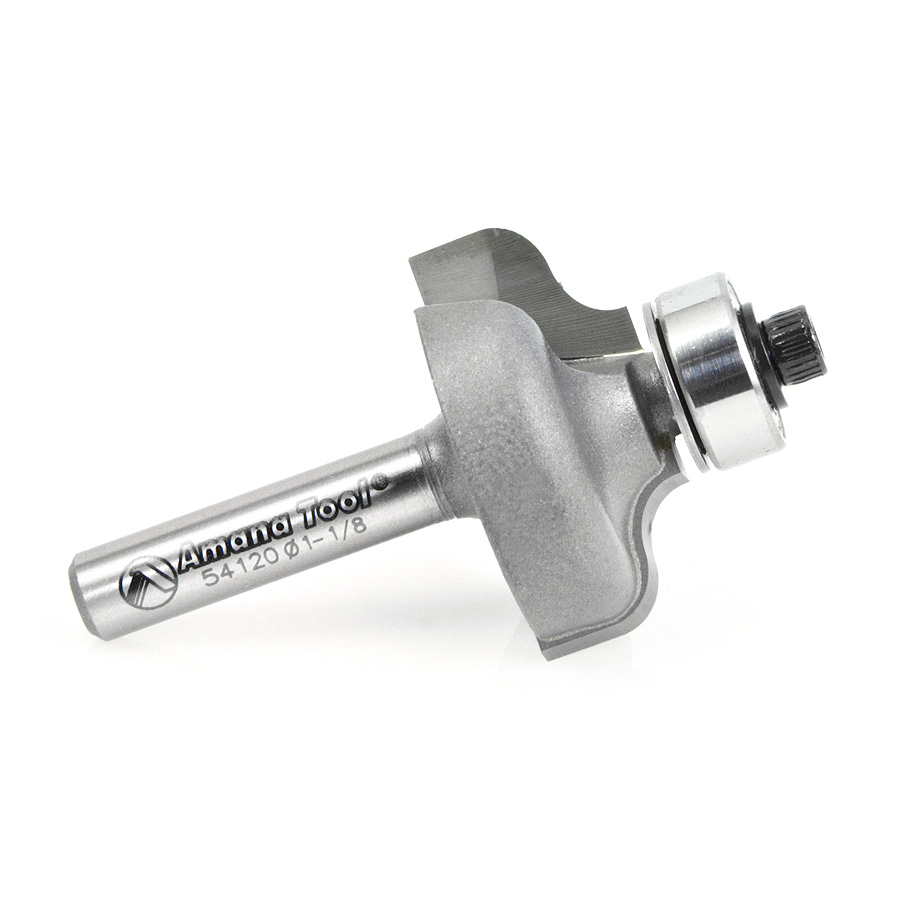

54120 Carbide Tipped Ogee 5/32 Radius x 1-1/8 Dia x 1/2 x 1/4 Inch Shank

$66.93

Diameter (D) 1-1/8
Radius (R) 5/32
(B) Cutting Height 1/2
Shank (d) 1/4
Overall Length (L) 2
Replacement Bearing 47706
Flutes 2

Description

The ogee is one of the basic shapes used in moldings and decorative profiles. An S-shaped curve, it is convex at the top fairing down into a concave (shown inverted). The ogee bit is characterized by the concave shape coming off the pilot bearing. Using the optional 3/8″ bearing produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router.

Specifications

Diameter (D) 1-1/8
Radius (R) 5/32
Cutting Height (B) 1/2
Shank (d) 1/4
Overall Length (L) 2
Replacement Bearing 47706
Flutes 2
