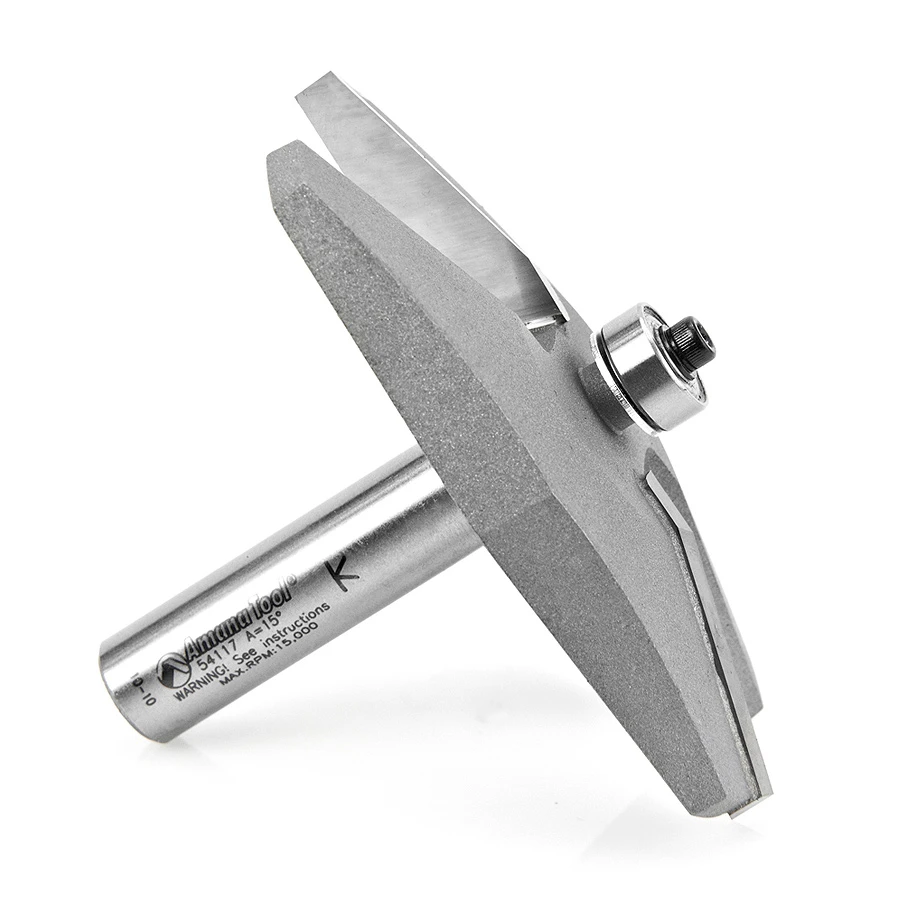

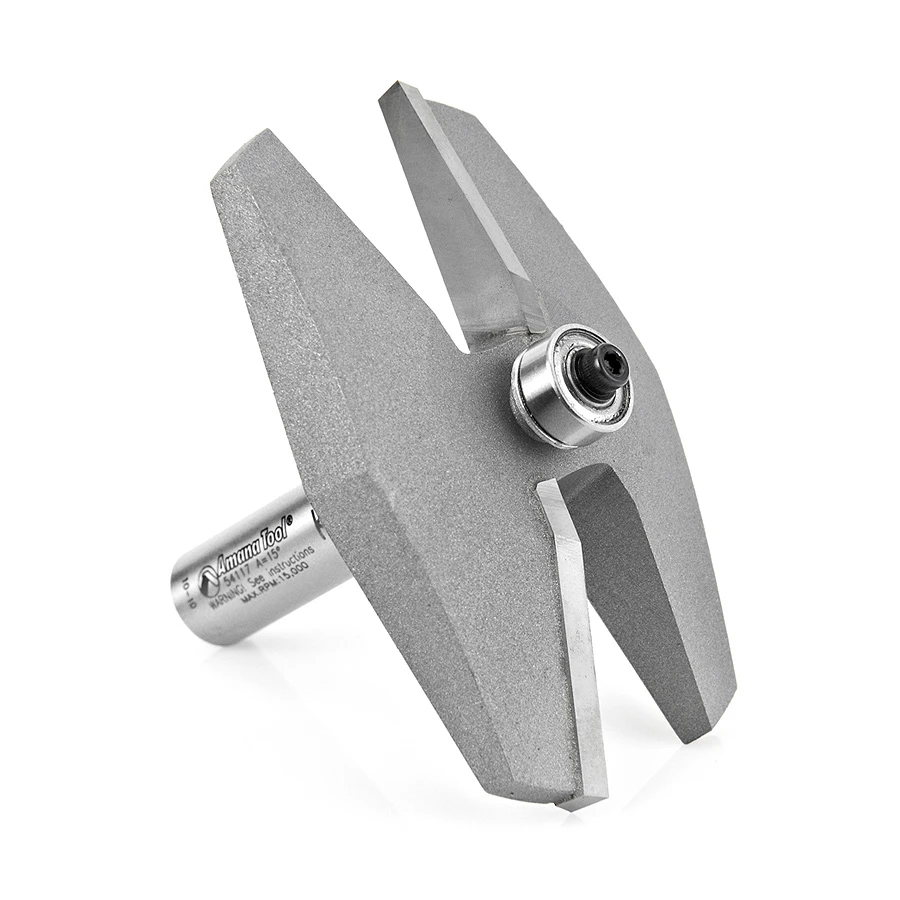

54117 Carbide Tipped Traditional Raised Panel 15 Deg x 1-7/16 Angle x 3-3/8 Dia x 1/2 x 1/2 Inch Shank

$172.89

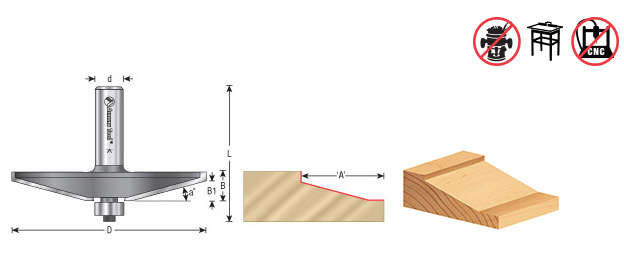

(A) Cut Depth 1-7/16
(a°) Angle 15°
Diameter (D) 3-3/8
(B) Cutting Height 1/2
B1 5/16
Shank (d) 1/2
Overall Length (L) 2-3/8
Replacement Bearing 47706
Flutes 2

Description

Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2″ shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended. Maximum RPM 14,000.

Specifications

Cut Depth (A) 1-7/16
Angle (a°) 15°
Diameter (D) 3-3/8
Cutting Height (B) 1/2
B1 5/16
Shank (d) 1/2
Overall Length (L) 2-3/8
Replacement Bearing 47706
Flutes 2
