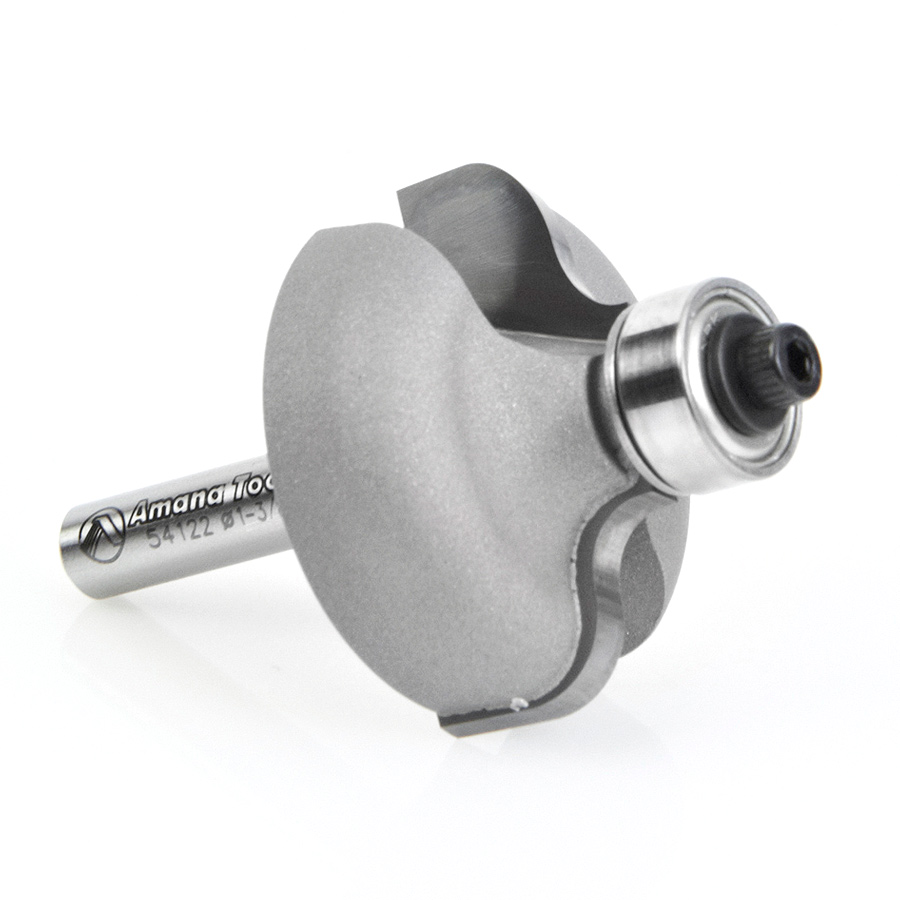

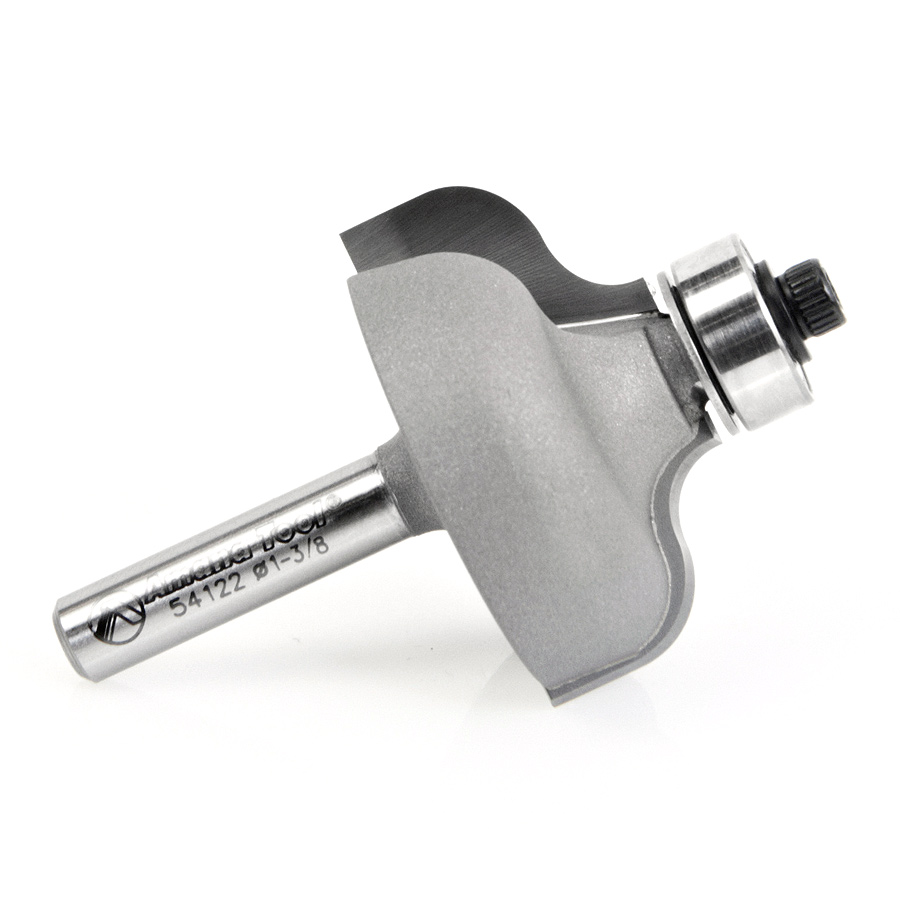

54122 Carbide Tipped Ogee 1/4 x 3/16 Radius x 1-3/8 Dia x 11/16 x 1/4 Inch Shank

$69.36

Diameter (D) 1-3/8
Radius (R) 1/4
(B) Cutting Height 11/16
Shank (d) 1/4
Overall Length (L) 2-3/16
Replacement Bearing 47706
R1 3/16
Flutes 2

Description

The ogee is one of the basic shapes used in moldings and decorative profiles. An S-shaped curve, it is convex at the top fairing down into a concave (shown inverted). The ogee bit is characterized by the concave shape coming off the pilot bearing. Using the optional 3/8″ bearing produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router.

Specifications

Diameter (D) 1-3/8
Radius (R) 1/4
Cutting Height (B) 11/16
Shank (d) 1/4
Overall Length (L) 2-3/16
Replacement Bearing 47706
R1 3/16
Flutes 2
