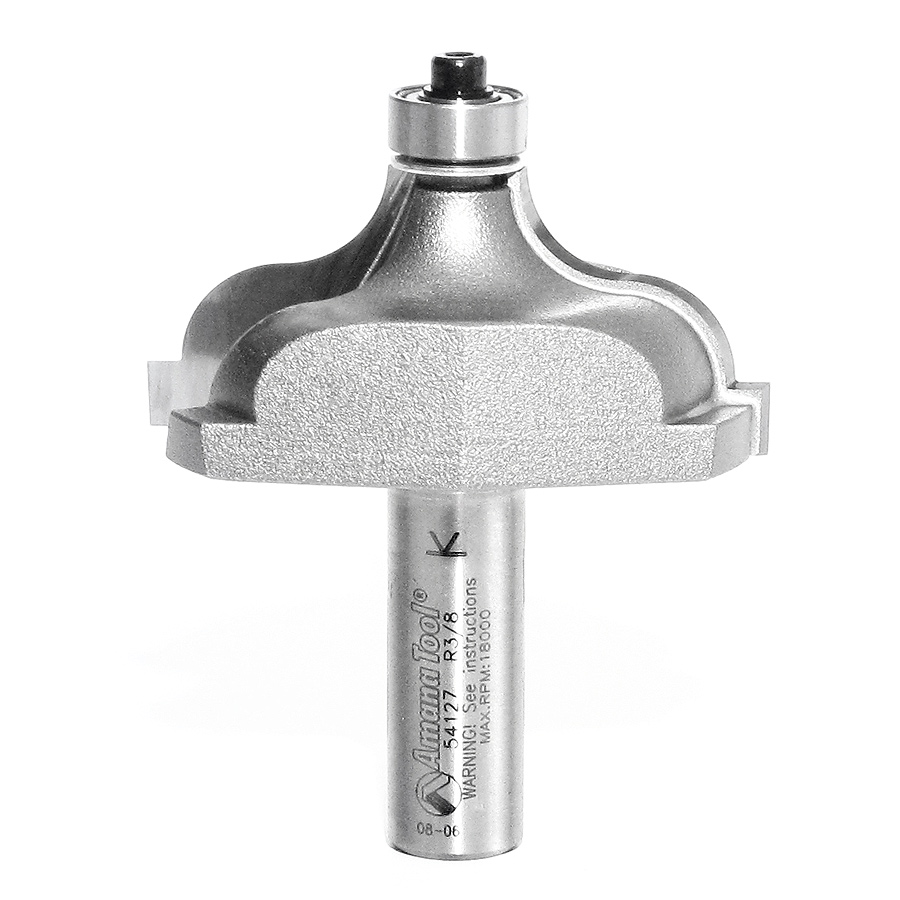

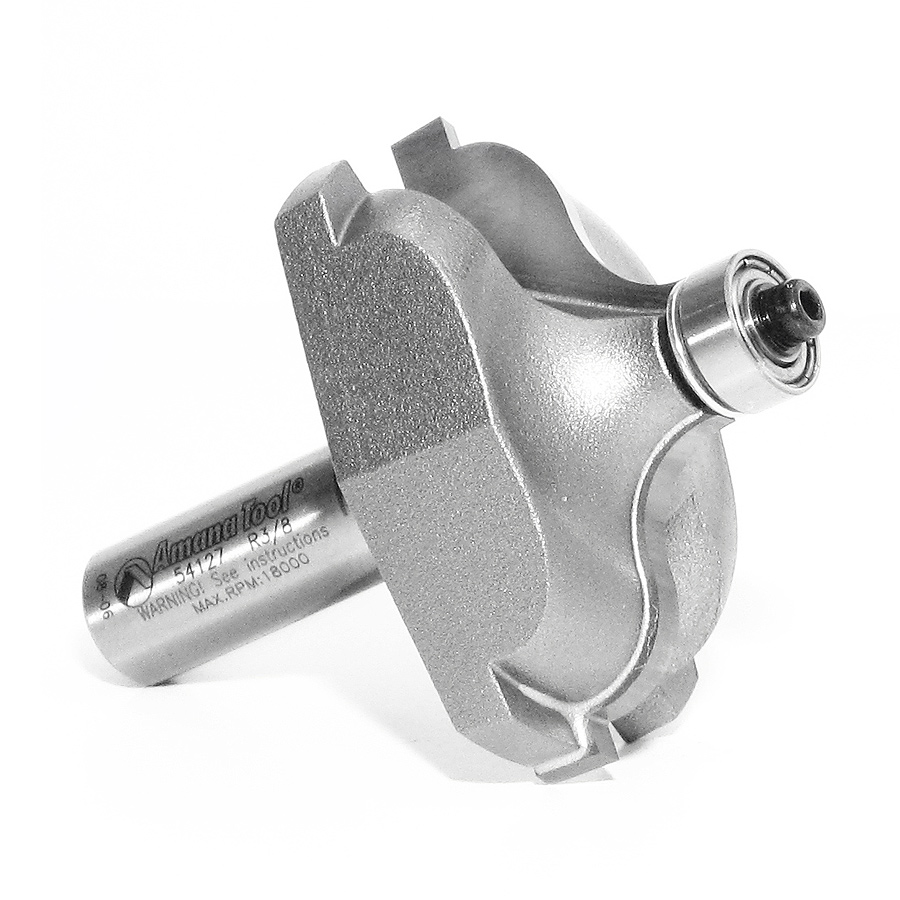

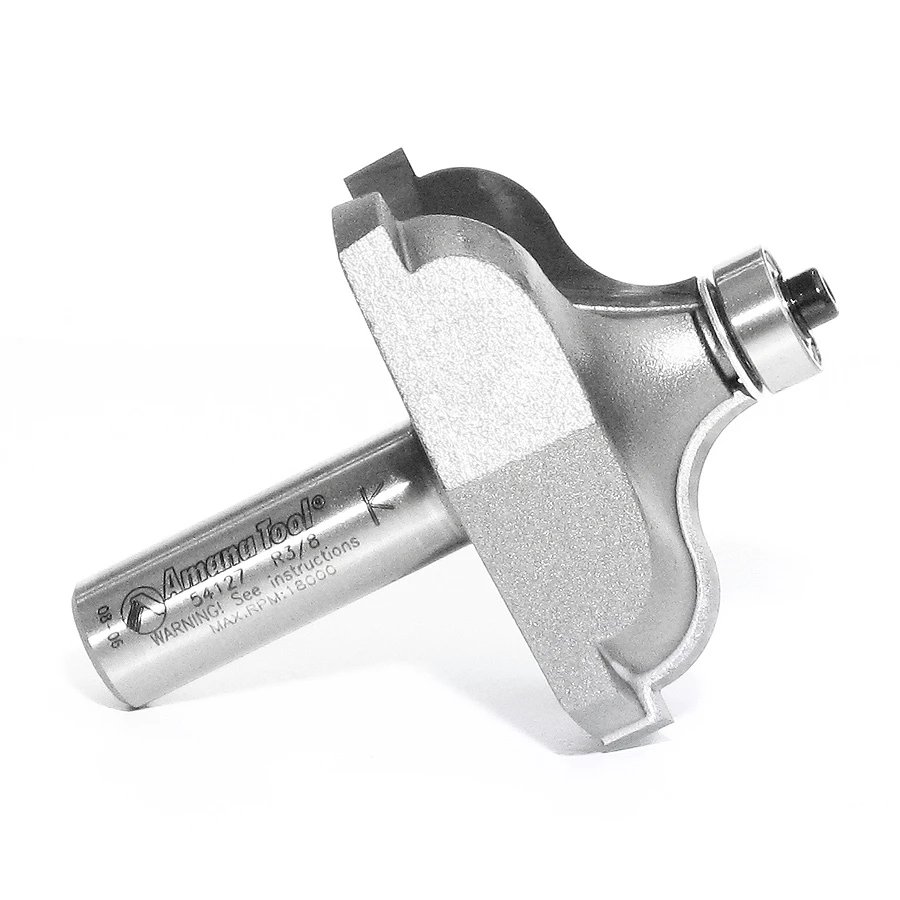

54127 Carbide Tipped Ogee Fillet 3/8 Radius x 2-1/4 Dia x 15/16 x 1/2 Inch Shank

$167.43

Diameter (D) 2-1/4
Radius (R) 3/8
(B) Cutting Height 15/16
Shank (d) 1/2
Overall Length (L) 2-7/8
Replacement Bearing 47706
Flutes 2

Description

The ogee is one of the basic shapes used in moldings and decorative profiles. An S-shaped curve, it is convex at the top fairing down into a concave (shown inverted). The ogee bit is characterized by the concave shape coming off the pilot bearing. Using the optional 3/8″ bearing produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router.

Specifications

Diameter (D) 2-1/4
Radius (R) 3/8
Cutting Height (B) 15/16
Shank (d) 1/2
Overall Length (L) 2-7/8
Replacement Bearing 47706
Flutes 2
