Description

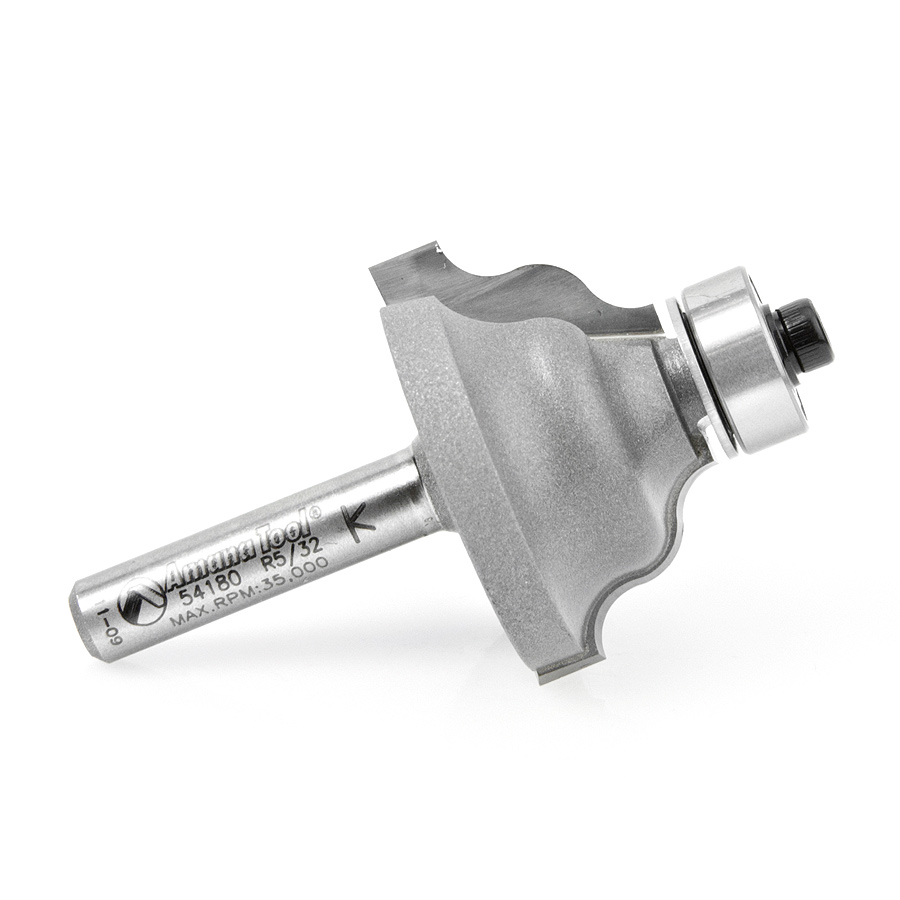

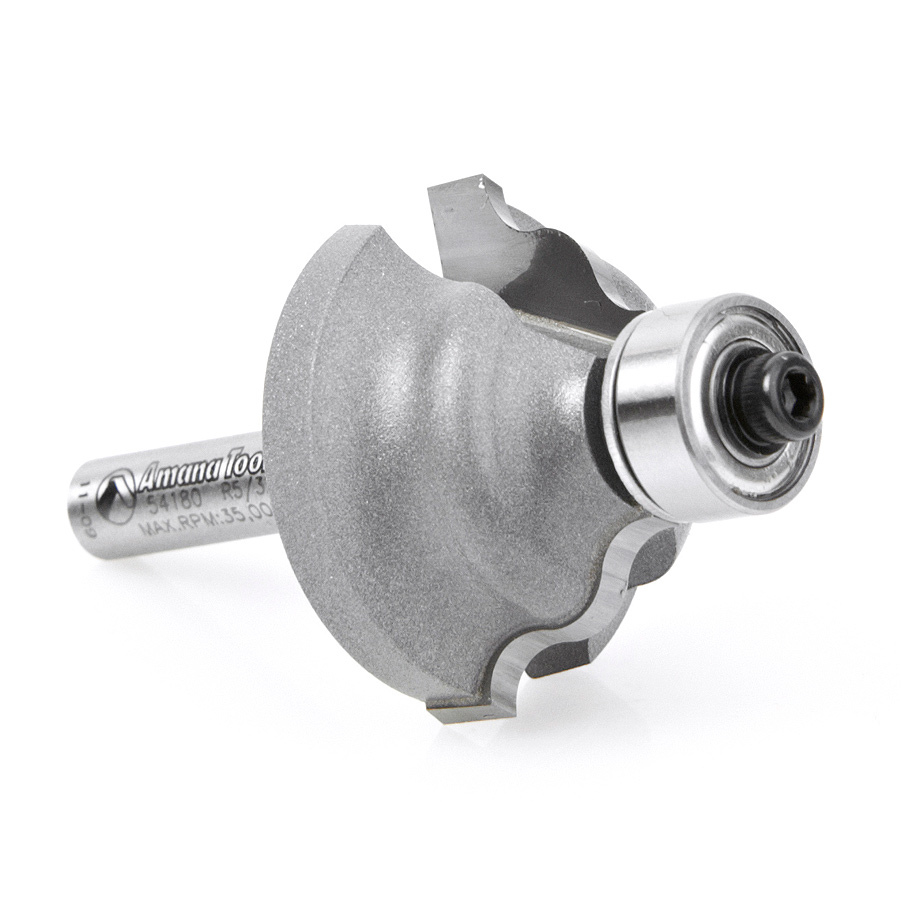

This bit produces an undulating curve with two convex forms flanking a concave form. All the radii are equal. A shoulder on the cutter can form a fillet, depending upon the depth-of-cut setting. Use in a handheld or table-mounted router.
54180 Carbide Tipped Wavy Edge 5/32 Radius x 1-1/4 Dia x 11/16 x 1/4 Inch Shank
$105.49
Usually ships on the 2nd business day from order date.
| Diameter (D) | 1-1/4 |
|---|---|
| Radius (R) | 5/32 |
| (B) Cutting Height | 11/16 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-1/4 |
| Replacement Bearing | 47776 |
| Flutes | 2 |
Specifications
| Diameter (D) | 1-1/4 |
| Radius (R) | 5/32 |
| Cutting Height (B) | 11/16 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-1/4 |
| Replacement Bearing | 47706 |
| Flutes | 2 |
