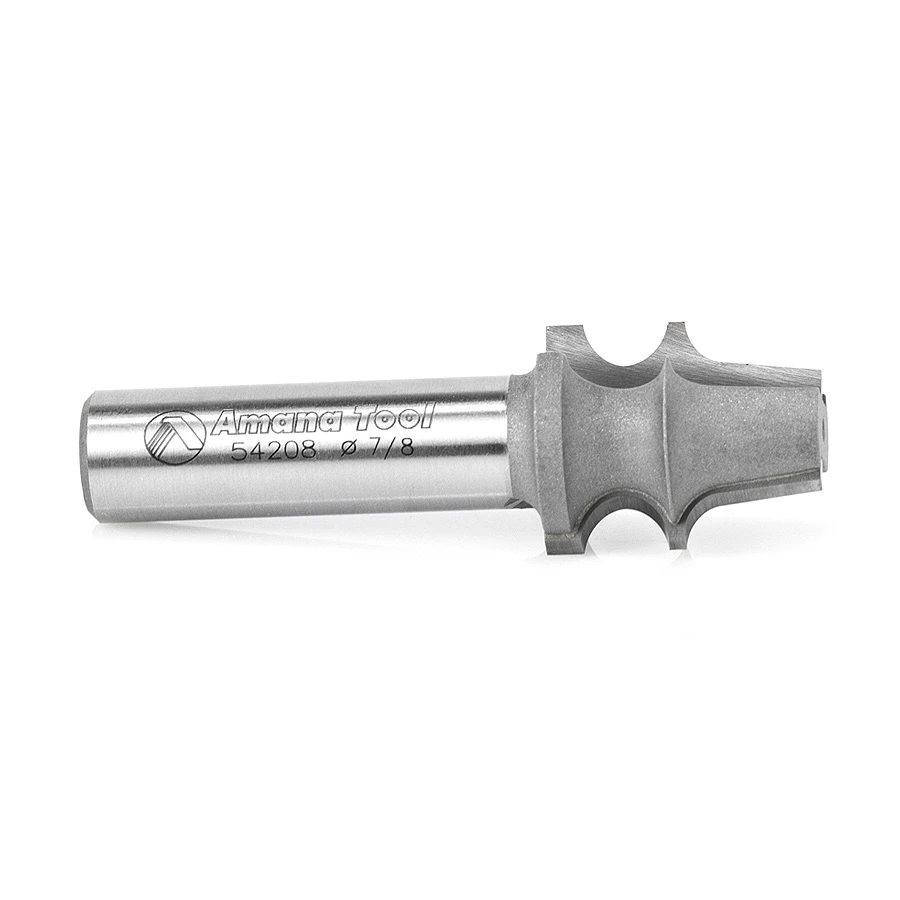

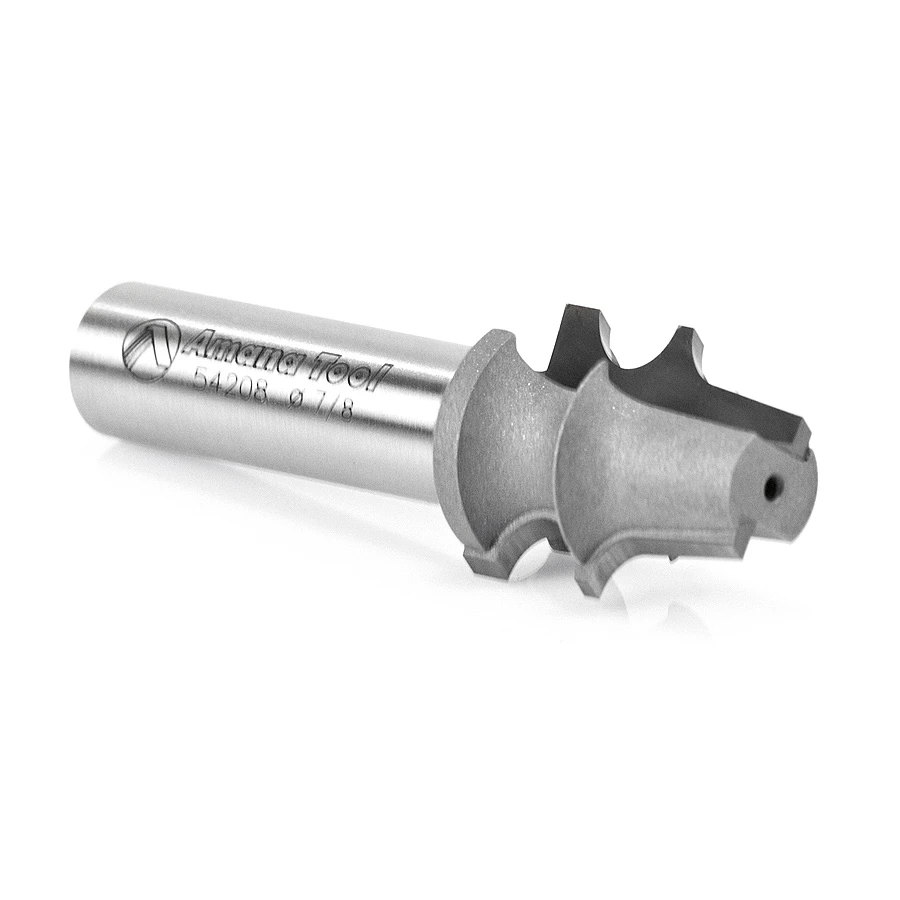

54208 Carbide Tipped Edge Beading 5/32 Radius x 7/8 Dia x 1-1/32 x 1/2 Inch Shank
$55.59
Usually ships on the 2nd business day from order date.
Diameter (D) | 7/8 |
---|---|
D1 | 1/2 |
Radius (R) | 5/32 |
(B) Cutting Height | 1-1/32 |
Shank (d) | 1/2 |
Overall Length (L) | 2-3/4 |
Flutes | 2 |
Description
Similar to the corner bead, but with a radiused, rather than a hard-edged quirk. Since this bit lacks a pilot, it must be used with a fence or edge guide. Use in a handheld or table-mounted router.
Specifications
Diameter (D) | 7/8 |
D1 | 1/2 |
Radius (R) | 5/32 |
Cutting Height (B) | 1-1/32 |
Shank (d) | 1/2 |
Overall Length (L) | 2-3/4 |
Flutes | 2 |
