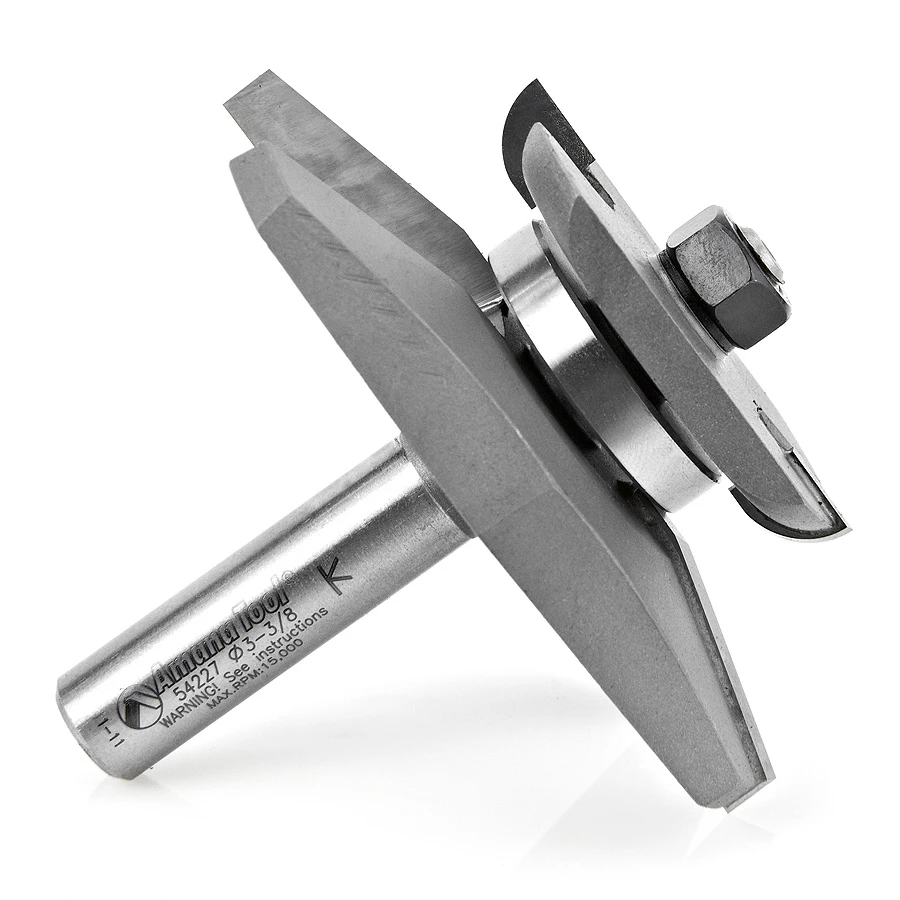

54227 Carbide Tipped Traditional Raised Panel with Back Cutter 15 Deg x 1-3/8 Angle x 3-3/8 Dia x 1-1/16 x 1/2 Inch Shank

$278.25

Usually ships on the 2nd business day from order date.
Cut Depth (a) 1-3/8
(a°) Angle 15°
Diameter (D) 3-3/8
D1 2-1/8
Radius (R) 5/16
(B) Cutting Height 1-1/16
B1 1/2
Shank (d) 1/2
Overall Length (L) 2-15/16
A1 1-1/16
Replacement Bearing 47713,47763
Flutes 2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

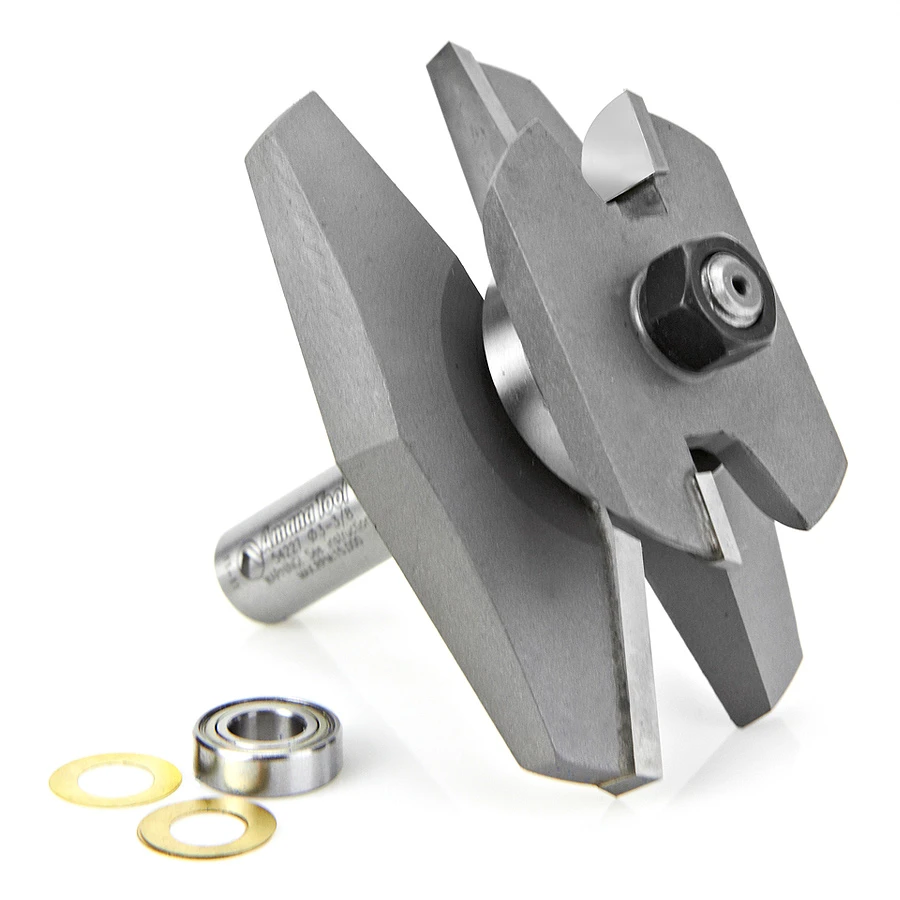

Raised panels fit standard panel grooves, even when the panel thickness exceeds 5/8″. As the main cutter raises the front of the panel, the back cutter mills the back to produce a standard-thickness tongue around the panel. Each tool is supplied with two different guide bearings, enabling you to stage cuts on curved edges effectively and safely. All tools have 1/2″ shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Multiple passes recommended.

Note: Reveal (‘A’) reflects the total length of cut. Therefore, you must deduct 3/8″ (usually) for allowing the panel to recess into the frame.

Note: To recieve (‘A1’) use bearing #47763.

Maximum RPM 12,000.

Specifications

Cut Depth (A) 1-3/8
Angle (a°) 15°
Diameter (D) 3-3/8
D1 2-1/8
Radius (R) 5/16
Cutting Height (B) 1-1/16
B1 1/2
Shank (d) 1/2
Overall Length (L) 2-15/16
A1 1-1/16
Replacement Bearing 47713,47763
Flutes 2
