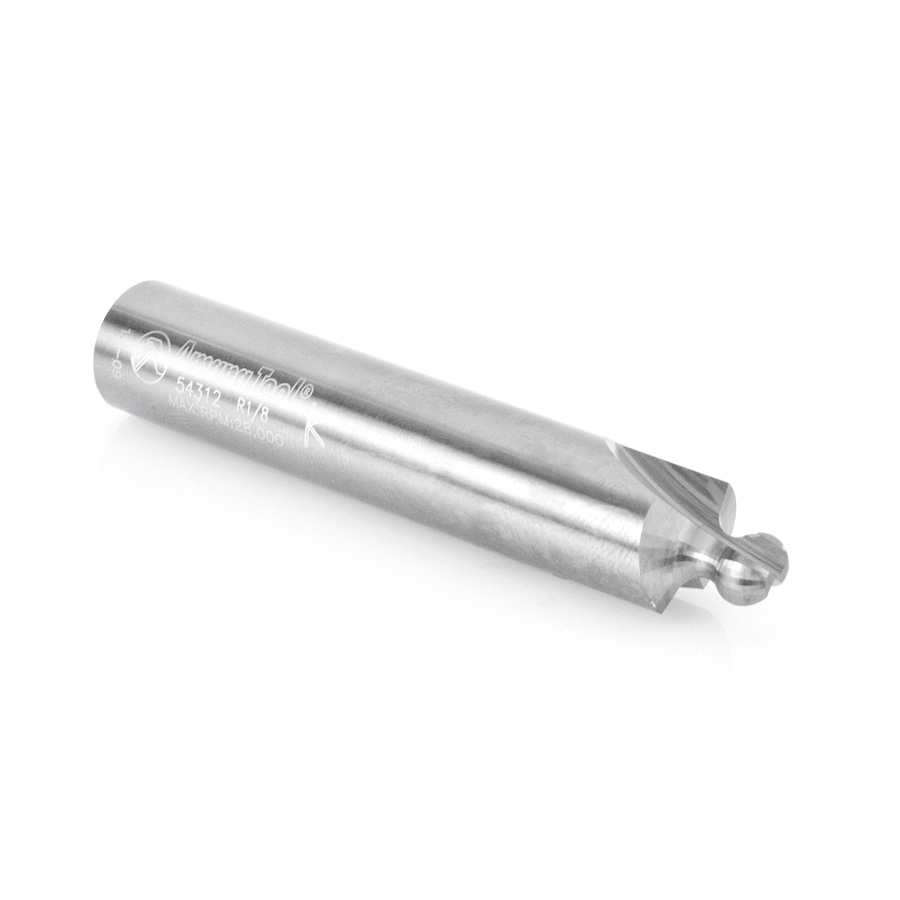

54312 Carbide Tipped Tambour # 2 – 5/64 Radius x 1/2 Dia x 1/2 Inch Shank Part of Set #54314 (U.S. Patent No. 7 810 532)

$138.39

Usually ships on the 2nd business day from order date.
Diameter (D) 1/2
Radius (R) 5/64
(B) Cutting Height 3/8
Shank (d) 1/2
Overall Length (L) 3
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

  • Unique 3-piece router bit set with antique solid brass knob
  • Shapes tambours that interlock with a ball-and-socket joint
  • Unlike ordinary tambours, there is no need for cloth, glue or wires
  • Each slat measures approximately 1/2″ x 1″
  • Minimum radius for the tambour door is 3-1/2″

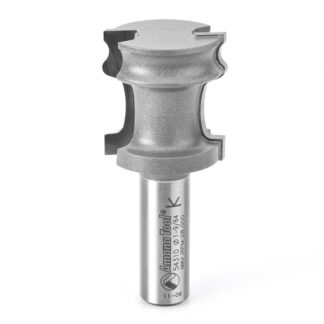

The set is easy to set up and use. The first bit (#54310) shapes the face of the stock; cutting from each face completes the contour of the ball. Afterwards, a second bit (#54312) is used to shape the socket. A third bit in the set (#49498) is used to shape the end of the tambour which provides a place to mount a pull for opening the completed tambour.

And, assembly is easy. Simply slide the slats together to create a beautiful flexible tambour that’s perfect for creating your own roll top desk, breadbox, kitchen countertop storage areas and more.

Recommended Maximum Width for Tambour Strips:
Do not exceed 5ft or 60in in length, otherwise they may sag under their own weight.

Specifications

Diameter (D) 1/2
Radius (R) 5/64
Cutting Height (B) 3/8
Shank (d) 1/2
Overall Length (L) 3
