Description
The torus-and-cove profile produced by this bit make an excellent edge detail or molding. The pilot bearing allows you to make template-guided cuts with the bit. Use in a handheld or table-mounted router.

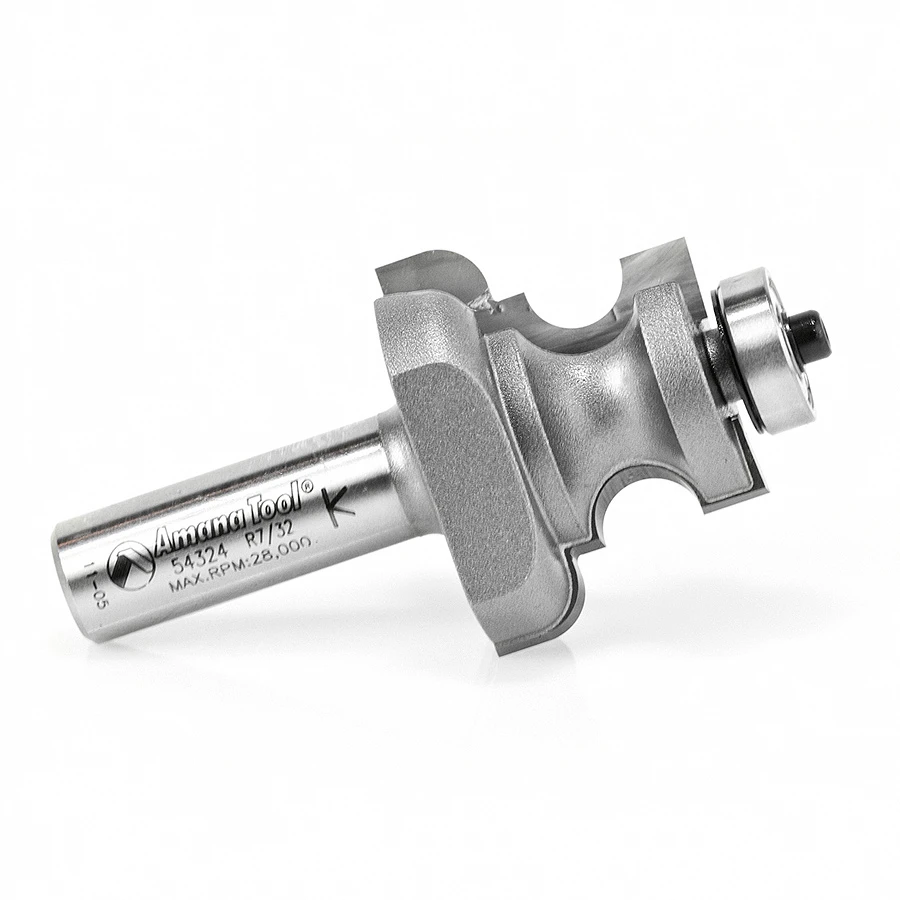

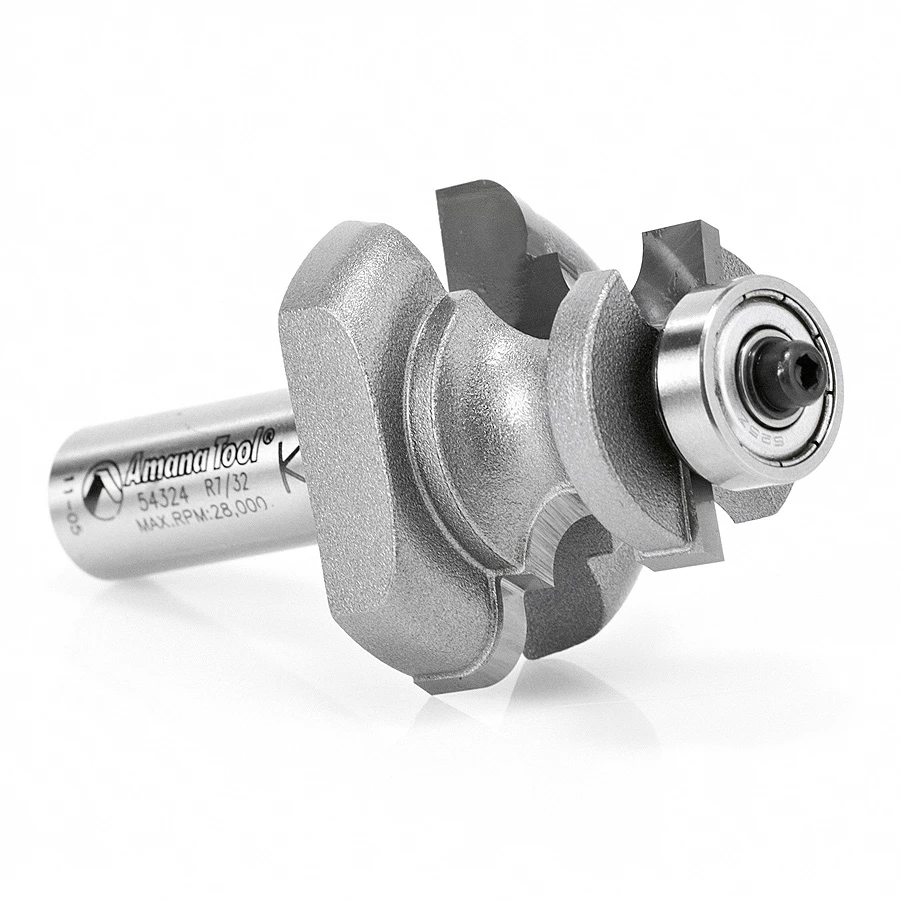

54324 Carbide Tipped Edge Molding 7/32 x 15/64 Radius x 1-9/16 Dia x 1-3/8 x 1/2 Inch Shank
$135.87
Usually ships on the 2nd business day from order date.
| Diameter (D) | 1-9/16 |
|---|---|
| Radius (R) | 7/32 |
| (B) Cutting Height | 1-3/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3 |
| Replacement Bearing | 47712 |
| R1 | 15/64 |
| Flutes | 2 |
Specifications
| Diameter (D) | 1-9/16 |
| Radius (R) | 7/32 |
| Cutting Height (B) | 1-3/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3 |
| Replacement Bearing | 47712 |
| R1 | 15/64 |
| Flutes | 2 |
