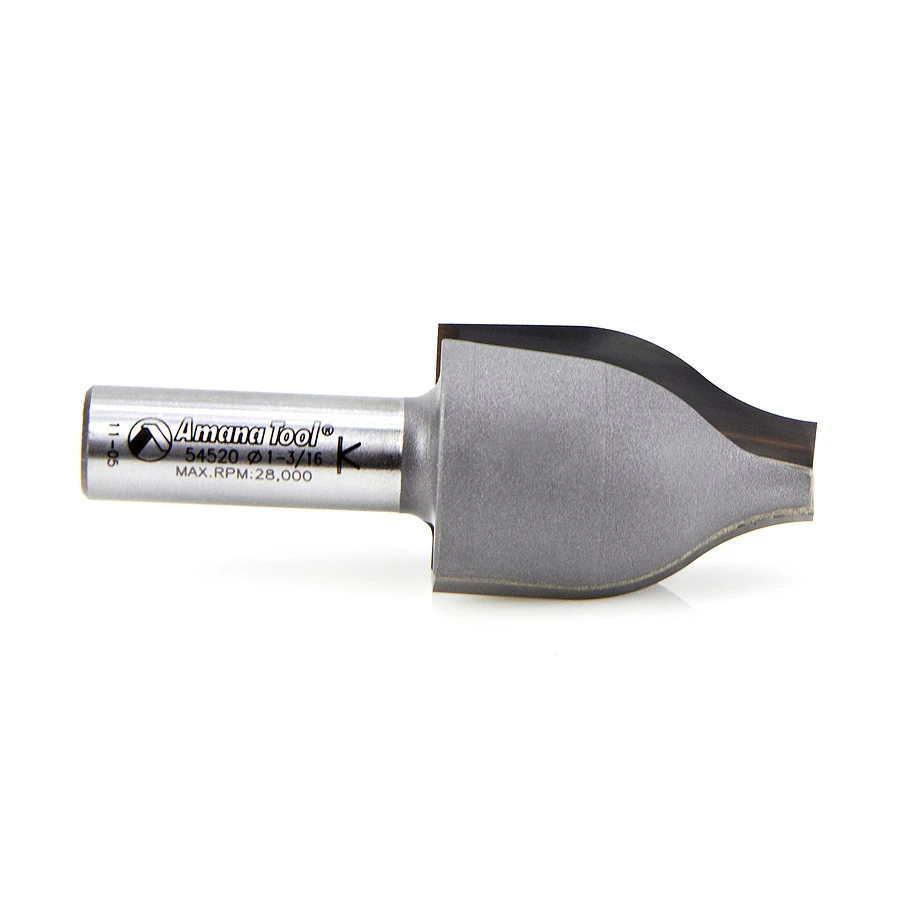

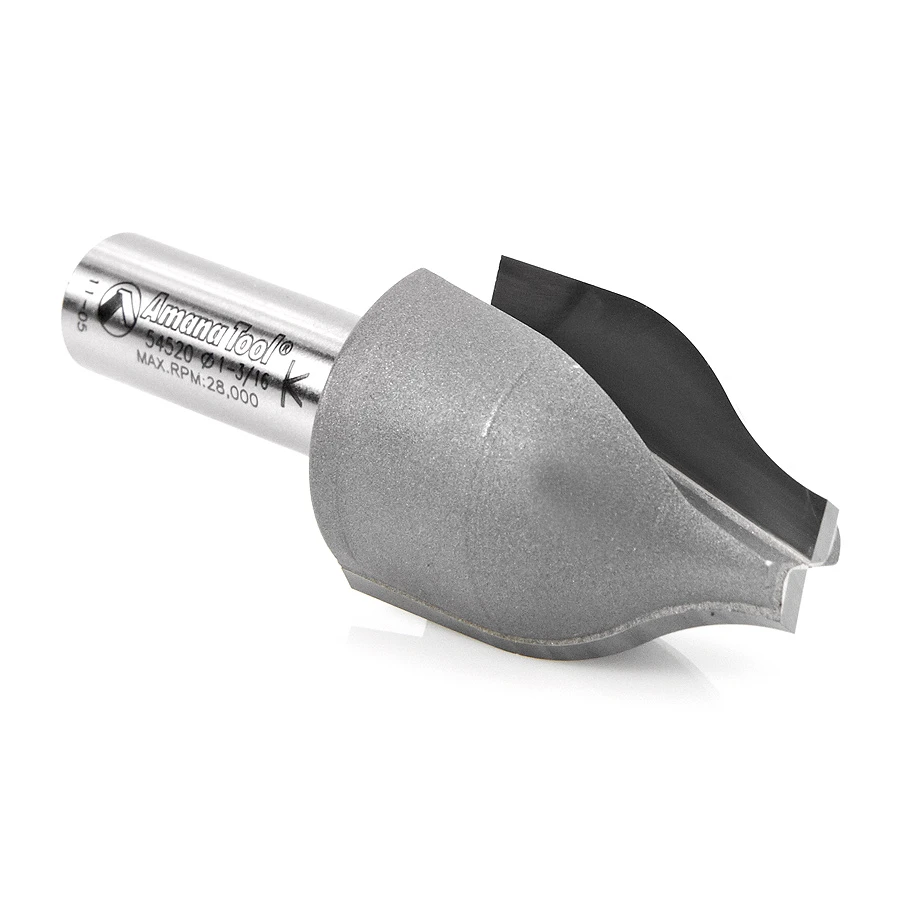

54520 Carbide Tipped Ogee Vertical Raised Panel 7/8 Radius x 1-3/16 Dia x 1-5/8 x 1/2 Inch Shank

$95.66

Usually ships on the 2nd business day from order date.
Diameter (D) 1-3/16
D1 7/16
(B) Cutting Height 1-5/8
Shank (d) 1/2
Overall Length (L) 3-1/8
Type Ogee
R2 1/4
R1 7/8
Flutes 2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

Raised panels with a low-horsepower, fixed speed router using these VERTICAL raised panel bits. You must do the work on a router table, with the work on edge, braced against the fence. Arched or curved shapes (i.e.: “cathedral” door panels) cannot be routed. To prolong tool life and get the best cut finish, several passes are recommended.

Specifications

Diameter (D) 1-3/16
D1 7/16
Cutting Height (B) 1-5/8
Shank (d) 1/2
Overall Length (L) 3-1/8
Type Ogee
R2 23/32
R1 7/8
Flutes 2
