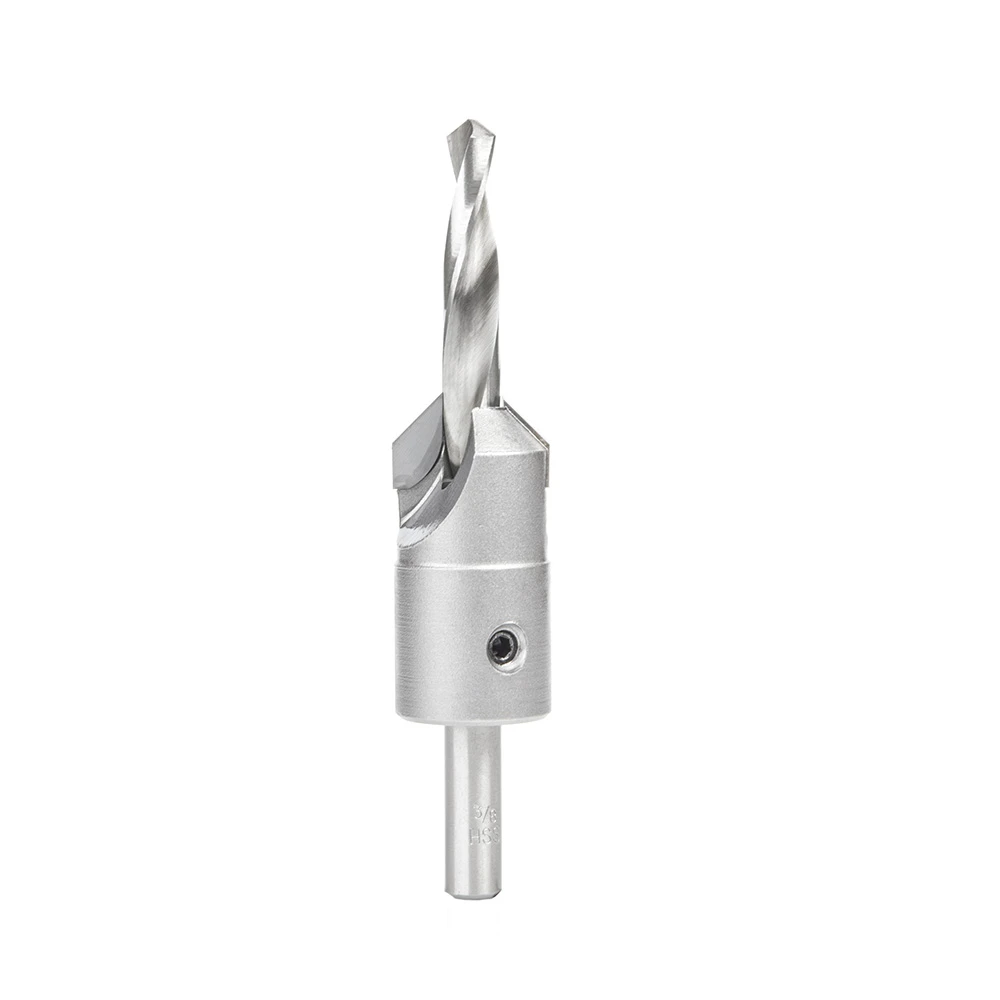

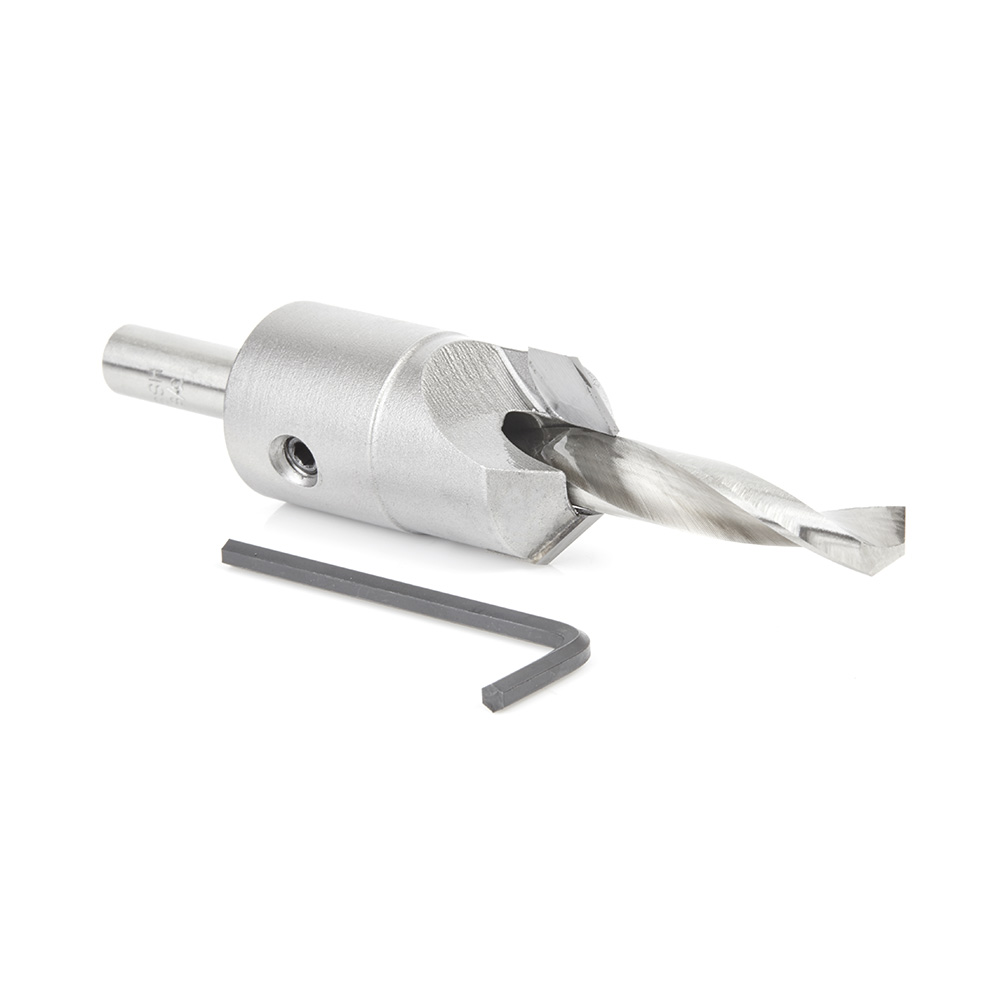

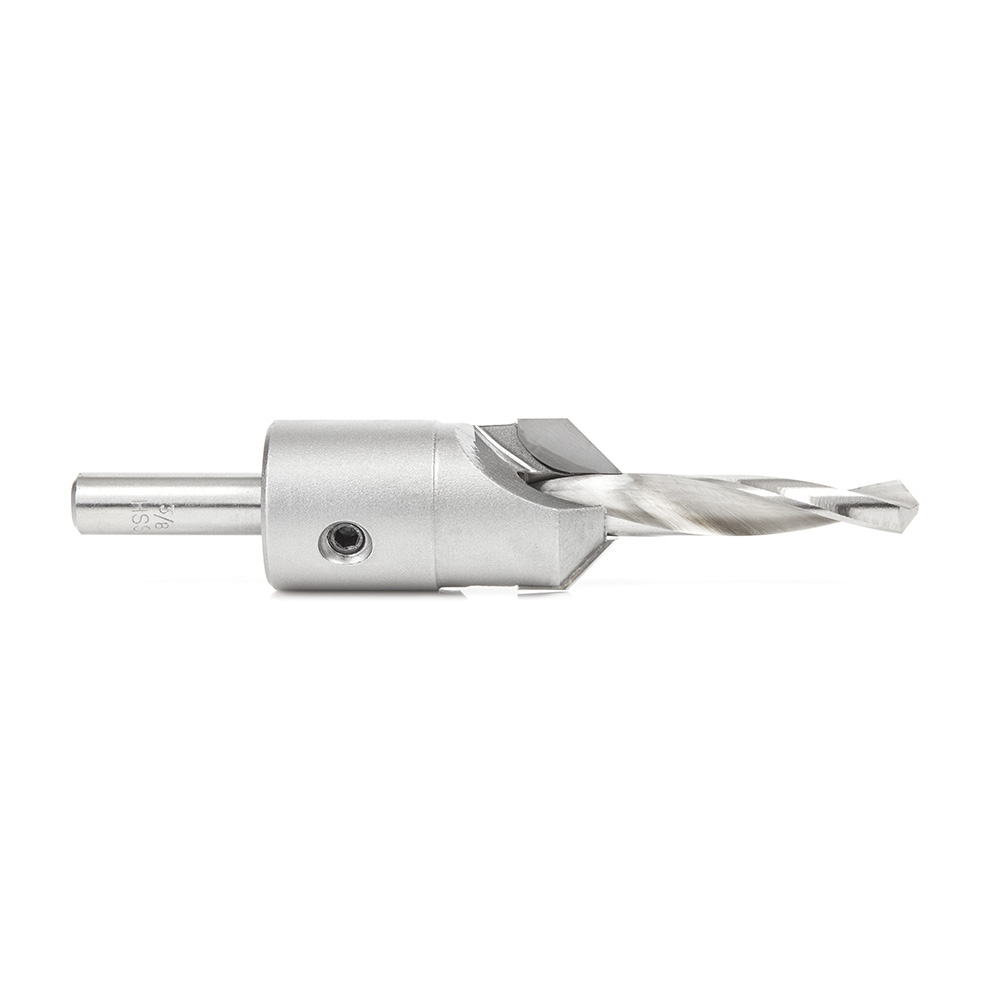

55136 Carbide Tipped 82 Degree Shankless Countersink with Slow Spiral Drill, #24 Screw 1 Dia x 3/8 Drill Dia x 3/8 Drill Shank
$77.18
Available in a wide variety of sizes, complete with slow spiral HSS M2 DIN 338 fully ground drill bit.
Excellent for Drilling:
Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
Warning: When drilling aluminum-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

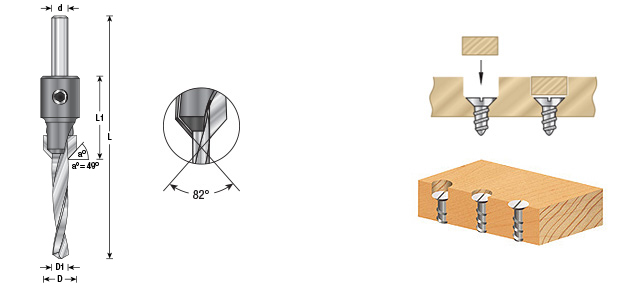

| (a°) Angle | 49° |
|---|---|
| Diameter (D) | 1mm |
| Shank (d) | 3/8 |
| Overall Length (L) | 4-15/16 |
| Wood Screw Size | #24 |
| # Wings | 2 |
| D1 | 3/8 |
| Replacement Drill | 630-706 |
| L1 | 2 |
Specifications
| (a°) Angle | 49° |
| Diameter (D) | 1mm |
| Shank (d) | 3/8 |
| Overall Length (L) | 4-15/16 |
| Wood Screw Size | #24 |
| # Wings | 2 |
| D1 | 3/8 |
| Replacement Drill | 630-706 |
| L1 | 2 |
