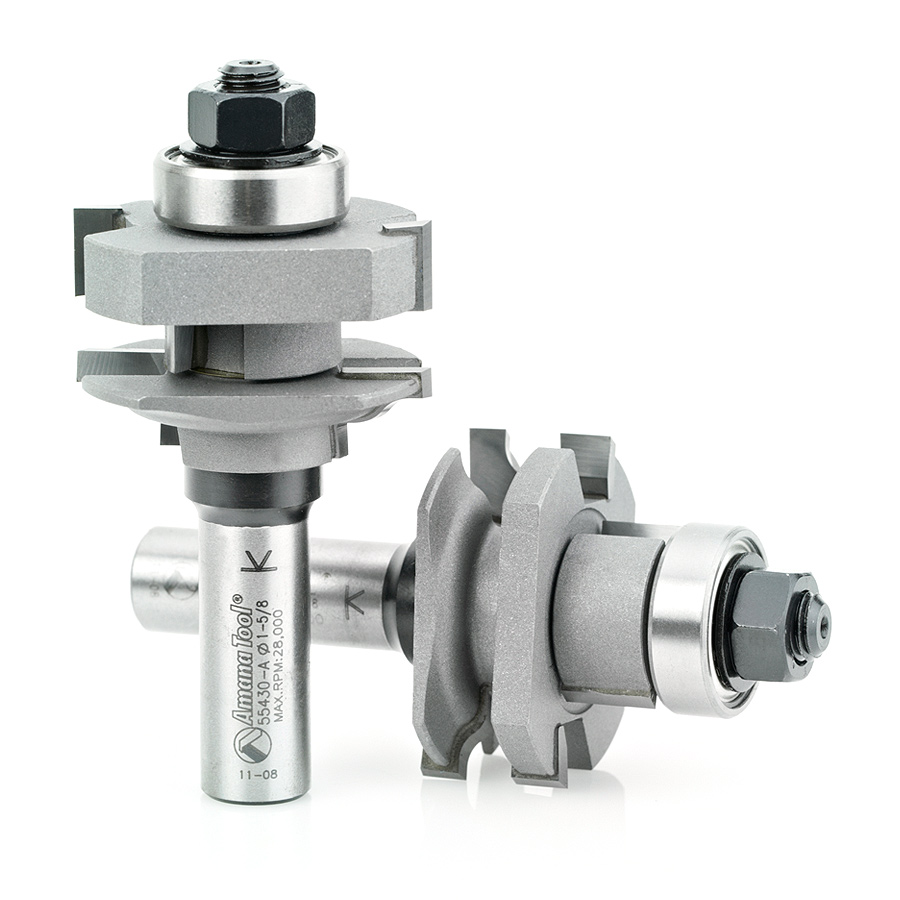

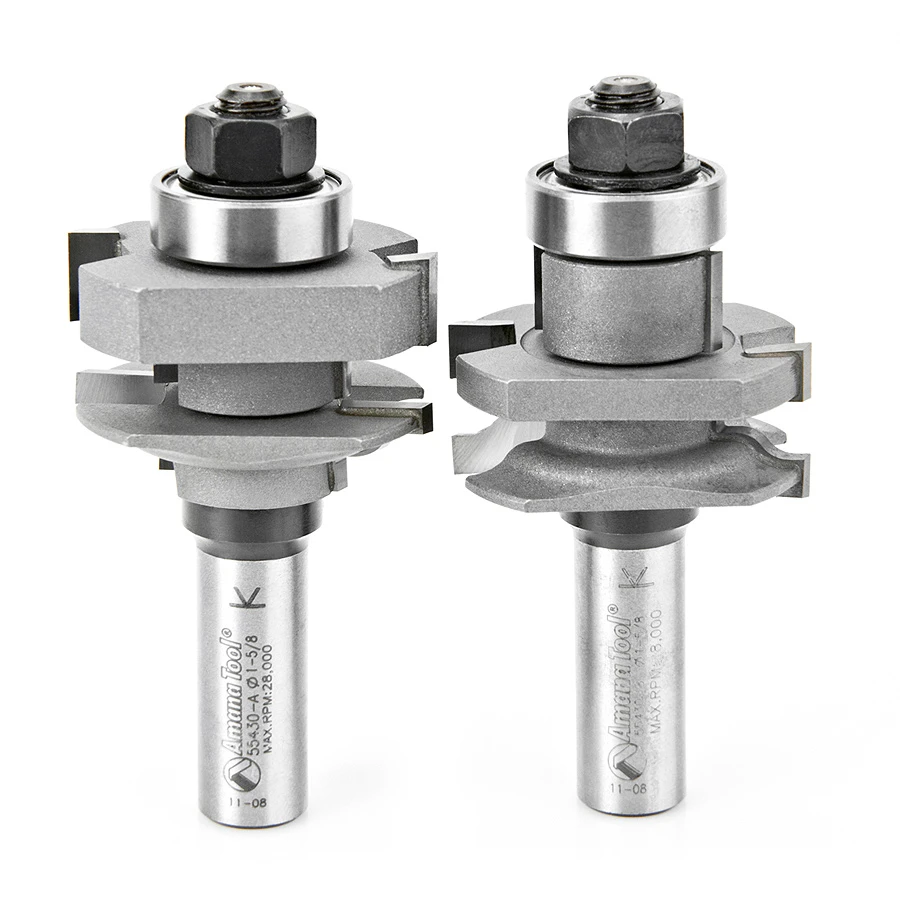

55430 Carbide Tipped 2-Piece Ogee Stile and Rail 1-5/8 Dia x 1-1/16 x 1/4 Radius x 1/2 Inch Shank Set
$206.79
Usually ships on the 2nd business day from order date.

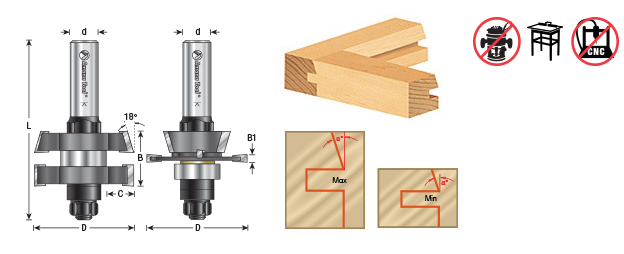

| Diameter (D) | 1-5/8 |
|---|---|
| Radius (R) | 1/4 |
| (B) Cutting Height | 1-1/16 |
| B1 | 1/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-5/16 |
| Type | Ogee |
| Replacement Bearing | 47708 |
| Material Size | 3/4"-1" |
| Flutes | 2 |
| C | 3/8 |
Description
These sets include two trim cutters for stock 7/8″ through 1″ in thickness. (These trim cutters can be removed for making bearing-guided cuts on stock under 7/8″ thick.)
Use in a table-mounted router. Guide straight cuts with the fence, setting it tangent to the trim cutters. Use the pilot bearing only for cuts on curved rails or stiles; for cuts on curved parts 7/8″ to 1″ thick, a template must to used.
Specifications
| Diameter (D) | 1-5/8 |
| Radius (R) | 1/4 |
| Cutting Height (B) | 1-1/16 |
| B1 | 1/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-5/16 |
| Type | Ogee |
| Replacement Bearing | 47708 |
| Material size | 3/4"-1" |
| Flutes | 2 |
| C | 3/8 |
