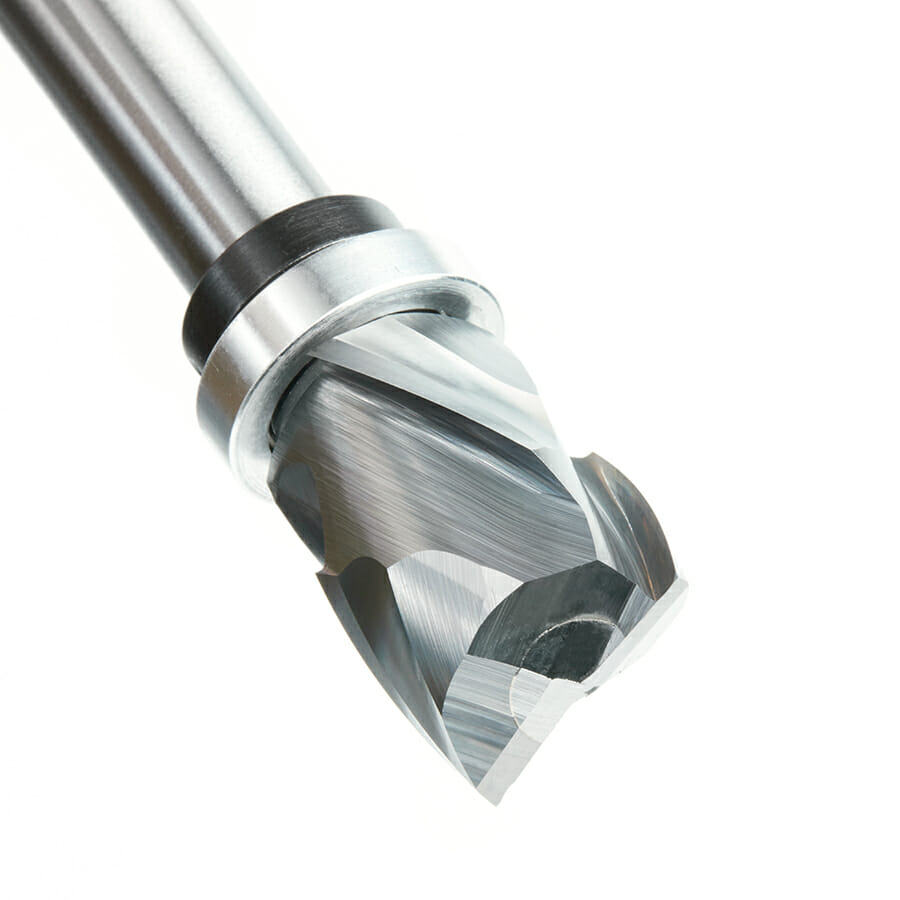

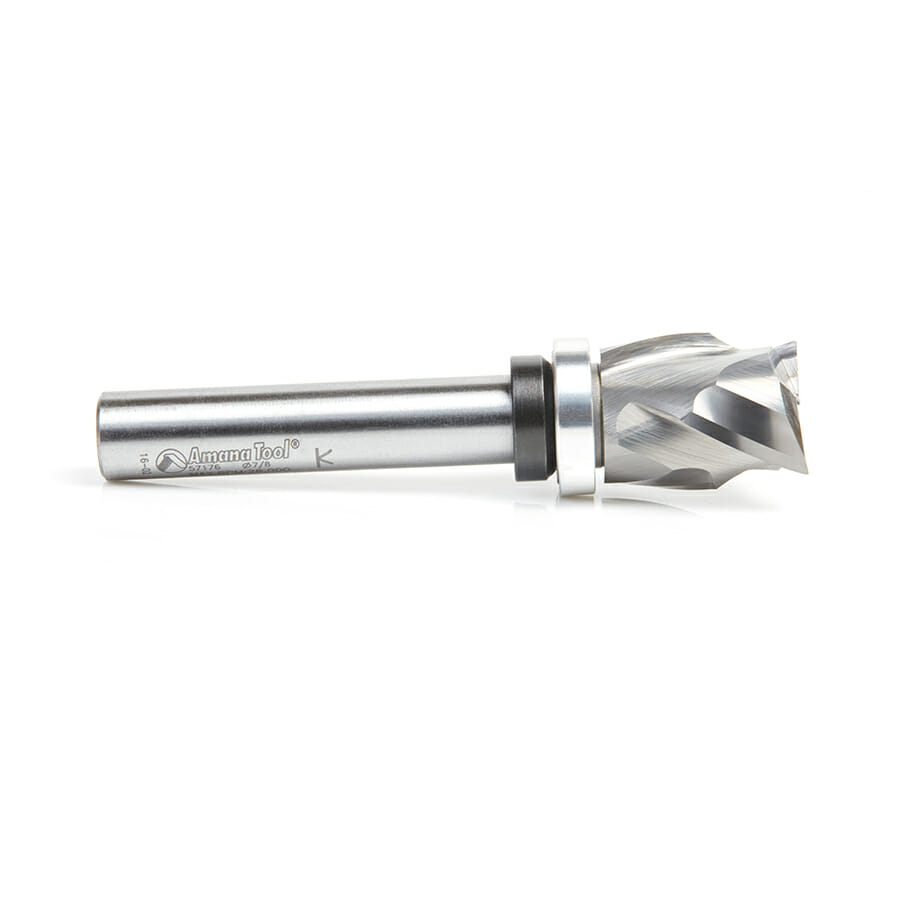

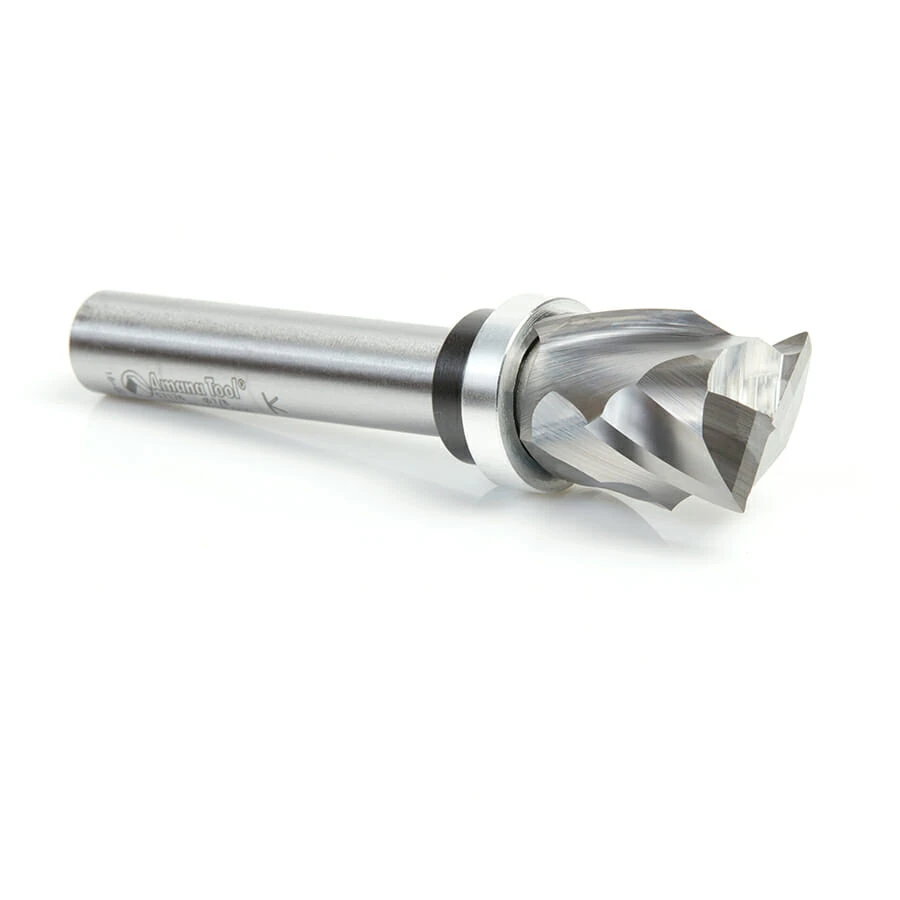

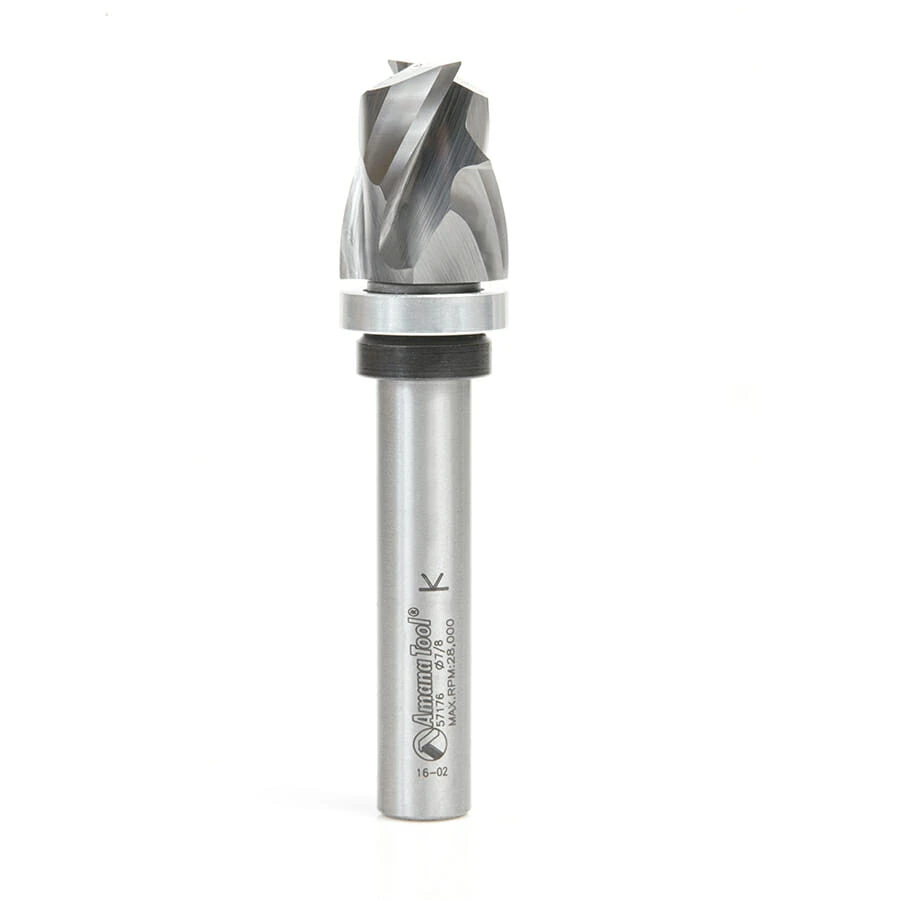

Solid Carbide (Brazed To Steel Shank) Spiral Pattern/Plunge Compression 7/8 Dia x 1-9/64 x 1/2 Inch Shank With Upper Ball Bearing
$232.37
Usually ships on the 2nd business day from order date.

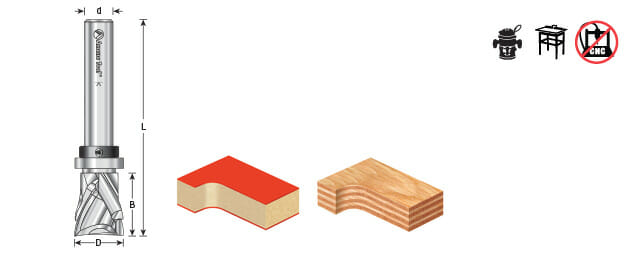

| Diameter D | 7/8 |
|---|---|
| Cutting Height B | 1-9/64 |
| Shank D | 1/2 |
| Overall Length L | 3-15/16 |
| Replacement Collar | 47739 |
| Replacement Bearing | 47793 |
| Flutes | 2 |
Description
Plunge-cutting straight with a shank-mounted ball-bearing pilot. Useful for template/pattern routing or parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template.
Specifications
| Diameter (D) | 7/8 |
| Cutting Height (B) | 1-9/64 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-15/16 |
| Replacement Collar | 47739 |
| Replacement Bearing | 47793 |
| Flutes | 2 |
