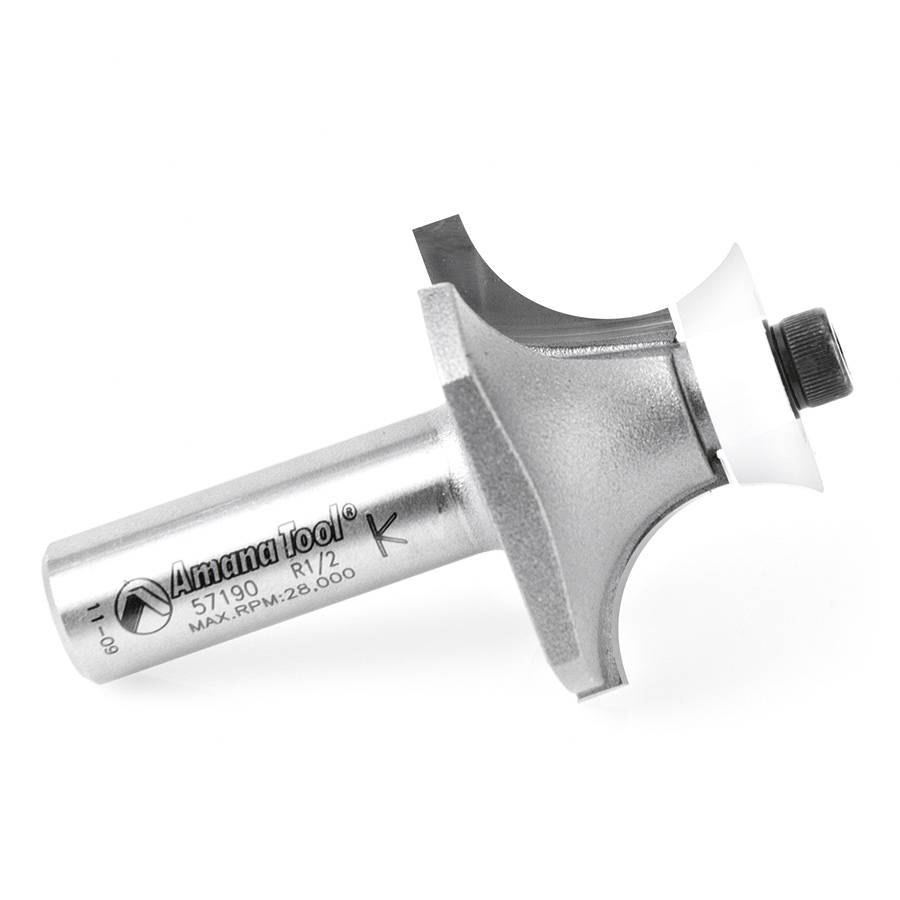

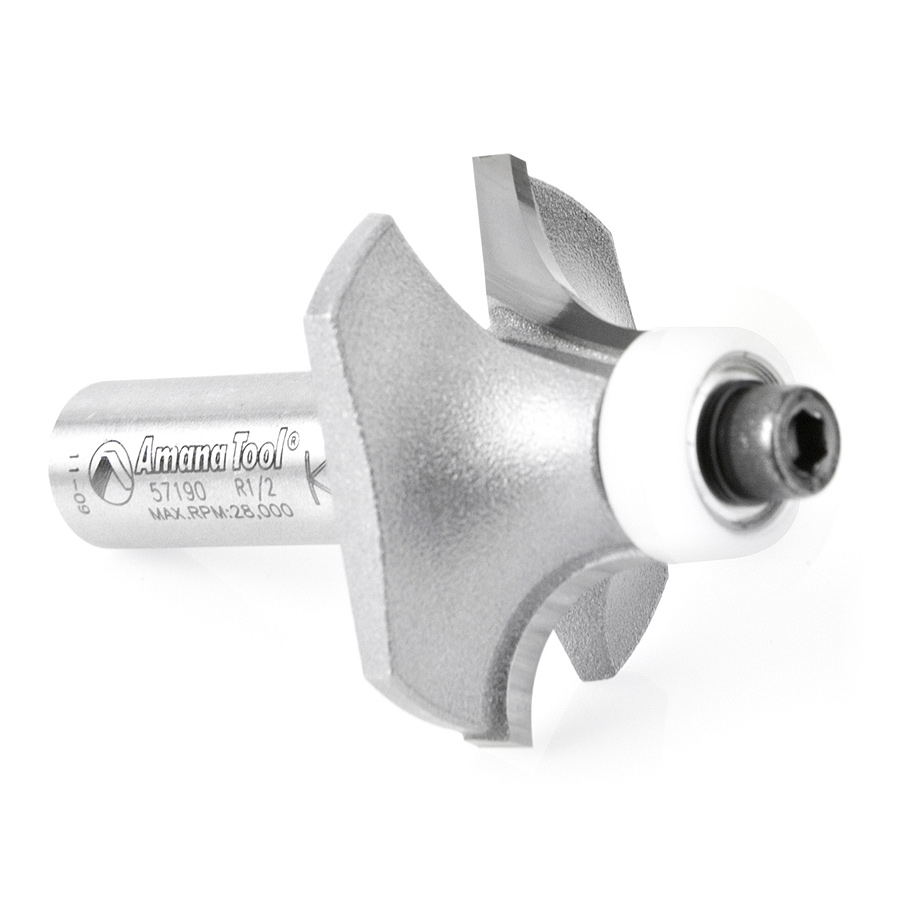

57190 Carbide Tipped Corner Rounding with Ultra-Glide Radius Bearing Guide Solid Surface 1-5/8 Dia x 3/4 x 1/2 Radius x 1/2 Inch Shank

$143.75

Usually ships on the 2nd business day from order date.
Diameter (D) 1-5/8
D1 5/8
Radius (R) 1/2
(B) Cutting Height 3/4
Shank (d) 1/2
Overall Length (L) 2-3/4
Replacement Bearing 47767
Flutes 2
A 1
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685571903 SKU: 57190 Categories: , ,

Description

This unique tool produces a true 180° bullnose in two passes. Make the first pass with a regular 1/4″ x 5/8″ steel bearing (optional). Switch to the Ultra-Glide™ radius bearing for the second pass.

This unique bearing follows the curved surface, eliminating the flat track typical of the two-pass cut with the regular bearing. Standard steel 1/4 x 5/8 bearing – use #47712 – (order separately).

Specifications

Diameter (D) 1-5/8
D1 5/8
Radius (R) 1/2
Cutting Height (B) 3/4
Shank (d) 1/2
Overall Length (L) 2-3/4
Replacement Bearing 47767
Flutes 2
A 1
