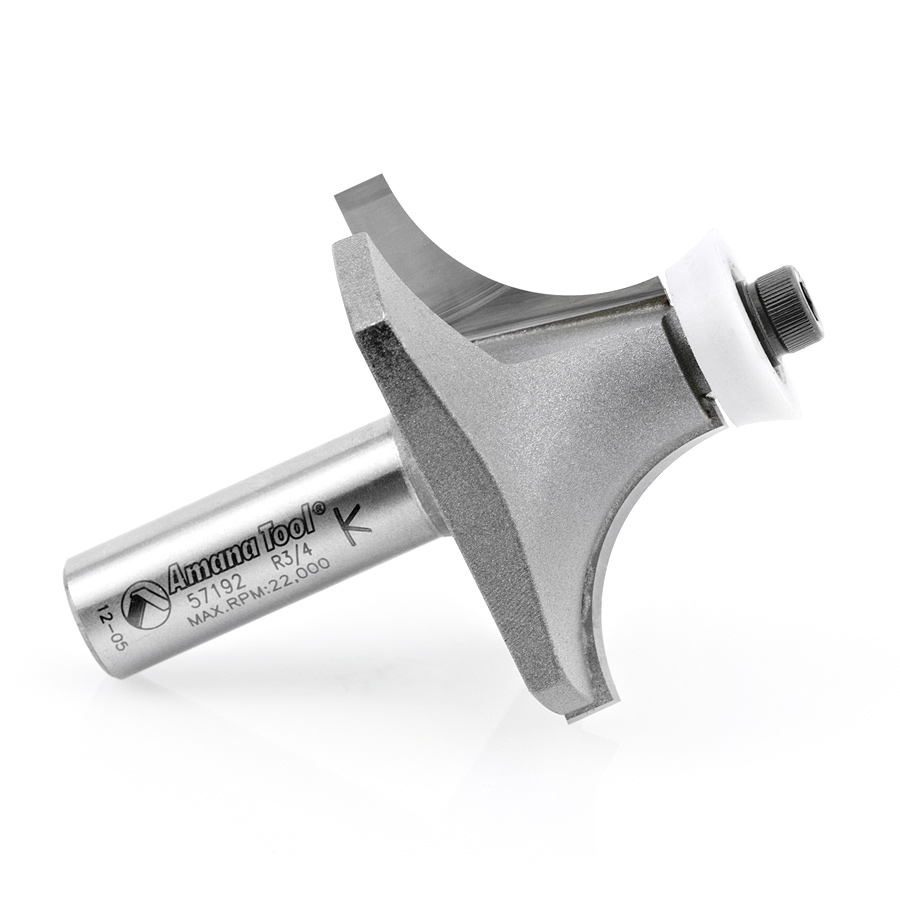

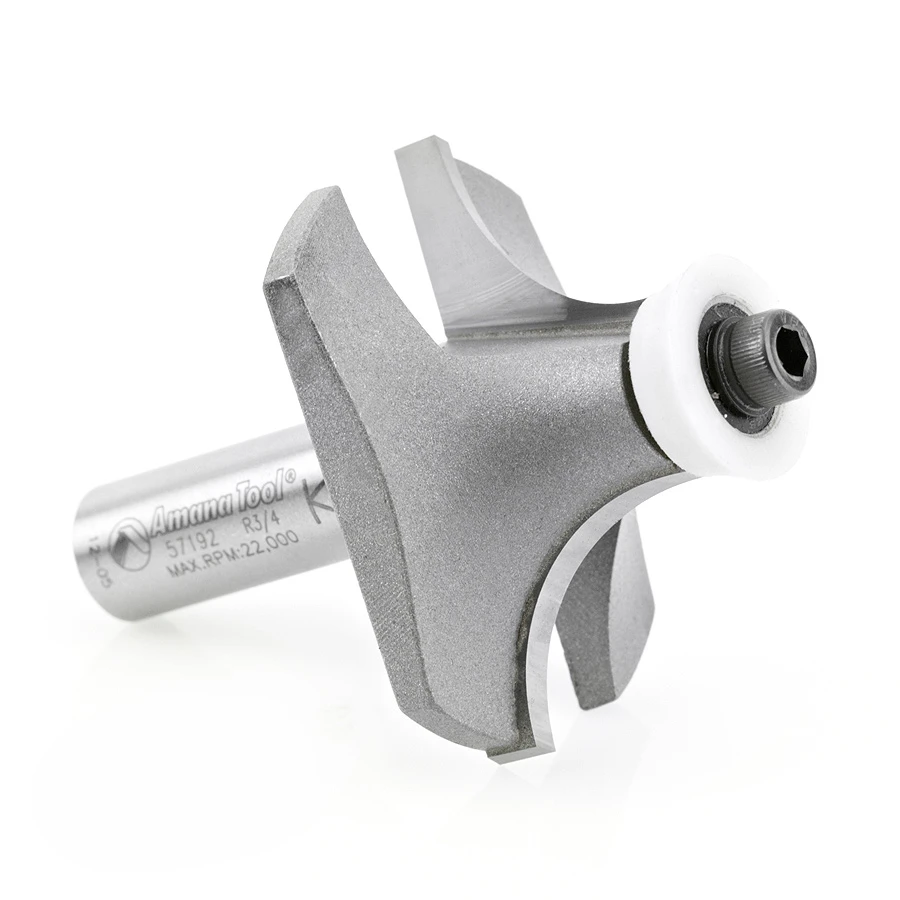

57192 Carbide Tipped Corner Rounding with Ultra-Glide Radius Bearing Guide Solid Surface 2-1/8 Dia x 1 Inch x 3/4 Radius x 1/2 Shank

$156.72

Usually ships on the 2nd business day from order date.
Diameter (D) 2-1/8
D1 5/8
Radius (R) 3/4
(B) Cutting Height 1
Shank (d) 1/2
Overall Length (L) 3
Replacement Bearing 47768
Flutes 2
A 1-1/2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685571927 SKU: 57192 Categories: , ,

Description

This unique tool produces a true 180° bullnose in two passes. Make the first pass with a regular 1/4″ x 5/8″ steel bearing (optional).

Switch to the Ultra-Glideâ„¢ radius bearing for the second pass. This unique bearing follows the curved surface, eliminating the flat track typical of the two-pass cut with the regular bearing. Standard steel 1/4 x 5/8 bearing – use #47712 – (order separately).

Specifications

Diameter (D) 2-1/8
D1 5/8
Radius (R) 3/4
Cutting Height (B) 1
Shank (d) 1/2
Overall Length (L) 3
Replacement Bearing 47768
Flutes 2
A 1-1/2
