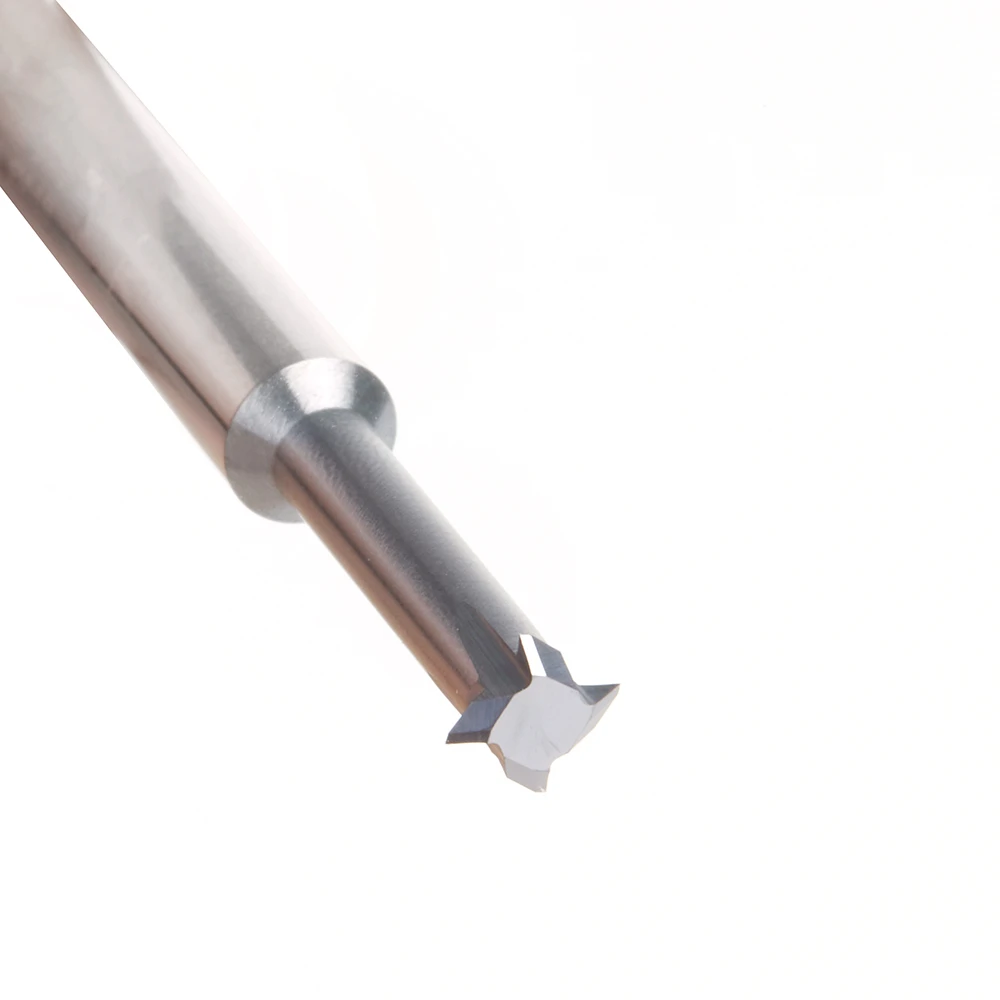

59414 CNC Solid Carbide Single Form Threadmill 6mm Dia x 18mm x 6mm Shank AlTiN Coated

$95.66

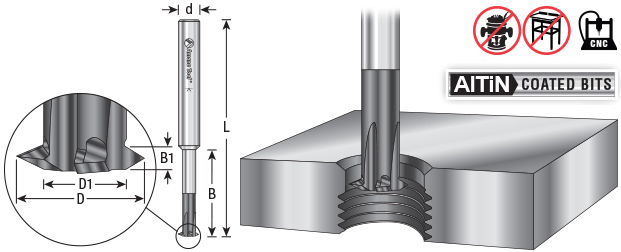

Thread M8
(D) Diameter 6mm
D1 3.6mm
(B) Cutting Height 18mm
B1 1.39mm
(d) Shank 6mm
Overall Length (L) 50mm
Flutes 4

Description

Tool is designed to cut internal and external and can mill mulitple pitches.

  • Cuts internal and external 60º UN threads
  • Tip of included angle ground to a point
  • Hole-making and threading

Premium Aluminum Titanium Nitride (AlTiN) coating provides quantum increases in productivity, either in terms of speed or longevity, with or without coolant.

Not for use in handheld drills or handheld routers.

Excellent for cutting:
  • Stainless Steel
  • Steel
  • Titanium
  • Cast Iron

AlTiN coating has many benefits:

  • Extra wear resistance
  • Allows for faster feed and speed rates
  • Cutting edge protected from wear
  • Better chip evacuation
  • Less heat build up
  • Superior cutting quality and extended tool life

WARNING: Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.

WARNING: Must have a CNC machine and the software to accept the programming needed to utilize helical circular interpolation.

Note: For optimal results and extended tool life use mist lubricant system or air cooling.

Specifications

Thread M8
(D) Diameter 6mm
D1 3.6mm
(B) Cutting Height 18mm
B1 1.39mm
(d) Shank 6mm
Overall Length (L) 50mm
Flutes 4
